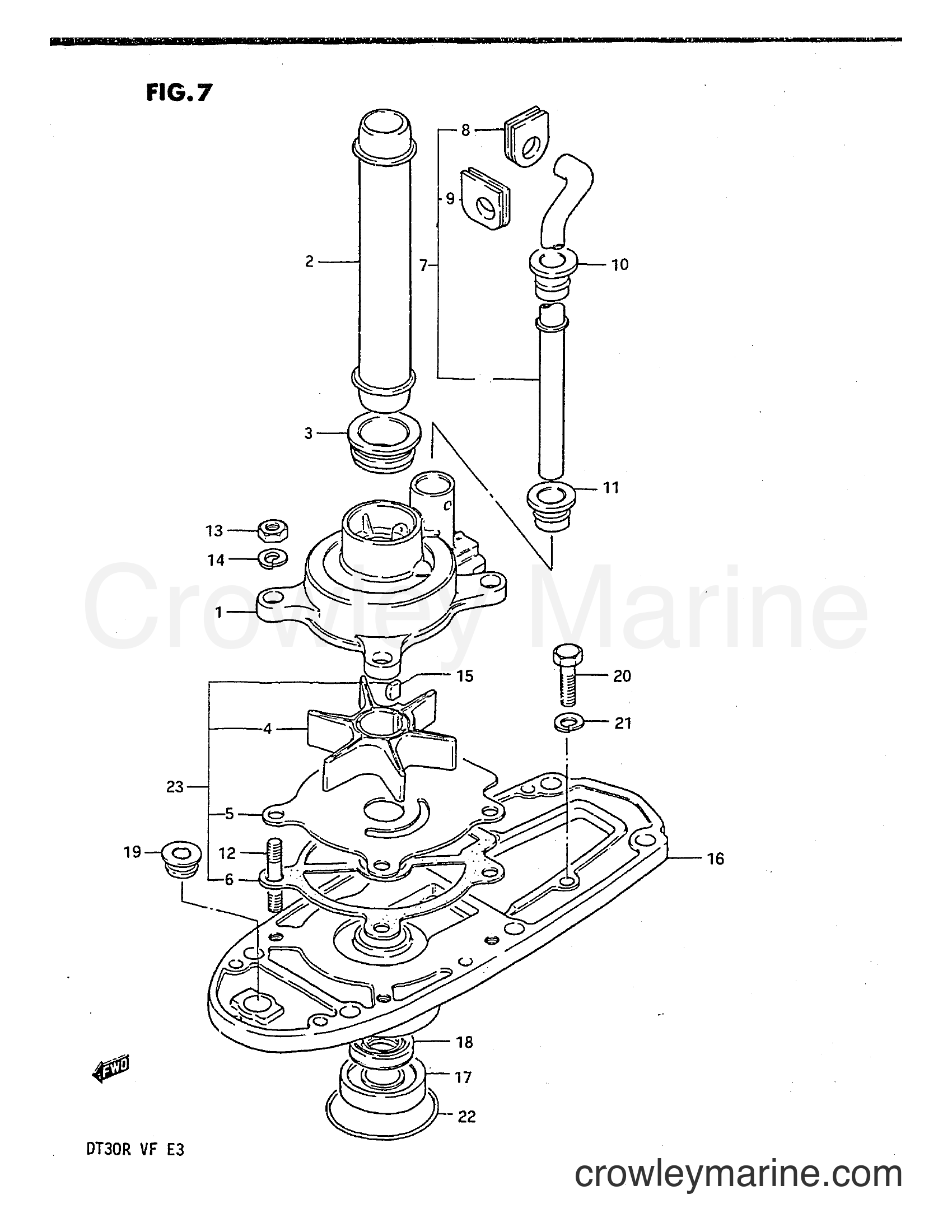

1985 Two-Stroke Outboard 30 - DT30 WATER PUMP diagram
1
Suzuki Marine
Obsolete Suzuki Part17411-96302
Required: 1
CASE, WATER PUMP
$79.51
You save $14.03
1
Suzuki Marine
Supersedes to 17411-9442117411-94420
Required: 1
CASE, WATER PUMP
Supersedes: 17411-94400
$30.53
You save $5.39
2
Suzuki Marine
TUBE,WATER PUMP17431-91L10
Required: 1
TUBE, WATER PUMP SEAL (S)
Supersedes: 17431-96310
In stock
Only 1 remaining
$6.00
You save $1.06
2
Suzuki Marine
TUBE,WATER PUMP17431-91L00
Required: 1
TUBE, WATER PUMP SEAL (L)
Supersedes: 17431-96300
In stock
Only 1 remaining
$13.47
You save $2.38
3
Suzuki Marine
GROMMET,WATER P17432-96301
Required: 2
GROMMET, SEAL TUBE
Supersedes: 17432-96300
In stock
Only 4 remaining
$2.24
You save $0.40
4
Suzuki Marine
IMPELLER, WATER17461-96312
Required: 1
IMPELLER, WATER PUMP
Supersedes: 17461-96301
In stock
Only 1 remaining
$27.33
You save $4.82
5
Suzuki Marine
PANEL,PUMP CASE17471-94401
Required: 1
PANEL, UNDER
Supersedes: 17471-96301
In stock
Only 1 remaining
$8.25
You save $1.46
5
Suzuki Marine
PANEL,PUMP CASE17471-94401
Required: 1
PANEL, UNDER
Supersedes: 17471-94400
In stock
Only 1 remaining
$8.25
You save $1.46
6
Suzuki Marine
GASKET,PUMP CAS17472-96304
Required: 1
GASKET, PUMP CASE LOWER
Supersedes: 17472-96300
In stock
Only 1 remaining
$2.15
You save $0.38
6
Suzuki Marine
GASKET,PUMP CAS17472-96304
Required: 1
GASKET, PUMP CASE LOWER
Supersedes: 17472-96301
In stock
Only 1 remaining
$2.15
You save $0.38
7
Suzuki Marine
TUBE COMP,WATER17560-91L11
Required: 1
TUBE, WATER (S)
Supersedes: 17560-96310
In stock
Only 1 remaining
$35.35
You save $6.24
7
Suzuki Marine
TUBE COMP,WATER17560-91L11
Required: 1
TUBE, WATER (S)
Supersedes: 17560-96311
In stock
Only 1 remaining
$35.35
You save $6.24
7
Suzuki Marine
Supersedes to 17560-91L0017560-96304
Required: 1
TUBE, WATER (L)
Supersedes: 17560-96300
$15.09
You save $2.66
7
Suzuki Marine
Supersedes to 17560-91L0017560-96304
Required: 1
TUBE, WATER (L)
Supersedes: 17560-96301
$15.09
You save $2.66
8
Suzuki Marine
GROMMET,WTR TUB17563-91L10
Required: 1
.GROMMET, UPPER (1)
Supersedes: 17563-96300
$4.15
You save $0.73
8
Suzuki Marine
GROMMET,WTR TUB17563-91L10
Required: 1
.GROMMET, UPPER (1)
Supersedes: 17563-96301
$4.15
You save $0.73
9
Suzuki Marine
GROMMET,WATER T17564-91L10
Required: 1
.GROMMET, UPPER (2)
Supersedes: 17564-96300
In stock
Only 1 remaining
$4.14
You save $0.73
9
Suzuki Marine
GROMMET,WATER T17564-91L10
Required: 1
.GROMMET, UPPER (2)
Supersedes: 17564-96301
In stock
Only 1 remaining
$4.14
You save $0.73
10
Suzuki Marine
GROMMET, WATER TUBE (UPPER)17565-91L00
Required: 1
GROMMET, MIDDLE
Supersedes: 17565-96300
In stock
Only 1 remaining
$3.26
You save $0.57
$0.55
You save $0.10
11
Suzuki Marine
GROMMET,WATER T17566-96303
Required: 1
GROMMET, LOWER
Supersedes: 17566-96302
In stock
Only 1 remaining
$2.13
You save $0.38
12
Suzuki Marine
BOLT STUD09108-06063
Required: 4
STUD BOLT
Supersedes: 09108-06032
In stock
Only 2 remaining
$2.83
You save $0.50
13
Suzuki Marine
Nut09140-06020
Required: 4
NUT
Supersedes: 09140-06004
In stock
Only 4 remaining
$1.72
You save $0.30
14
Suzuki Marine
WASHER09162-06006
Required: 4
LOCK WASHER
Supersedes: 09162-06001
$1.54
You save $0.27
In stock
Only 1 remaining
$3.71
You save $0.65
16
Suzuki Marine
Supersedes to 56130-96302-02M56130-96301-02M
Required: 1
HOUSING, DRIVE SHAFT BEARING
Supersedes: 56130-96300-02M
$33.53
You save $5.92
16
Suzuki Marine
Supersedes to 56130-96302-02M56130-96301-02M
Required: 1
HOUSING, DRIVE SHAFT BEARING
$33.53
You save $5.92
$52.16
You save $9.21
$10.44
You save $1.84
19
Suzuki Marine
BUSH,SHIFT ROD25214-96302
Required: 1
.BUSH, SHIFTING ROD
Supersedes: 25214-96301
$2.85
You save $0.50
20
Suzuki Marine
BOLT09117-06031
Required: 2
BOLT
Supersedes: 09100-06103
In stock
Only 1 remaining
$3.34
You save $0.59
21
Suzuki Marine
WASHER09162-06006
Required: 2
LOCK WASHER
Supersedes: 09162-06001
$1.54
You save $0.27
In stock
Only 3 remaining
$1.47
You save $0.26
23
Suzuki Marine
Water Pump Repair Kit17400-96354
Required: 1
KIT, WATER PUMP REPAIR
Supersedes: 17400-96350
In stock
Only 2 remaining
$31.51
You save $5.56
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
