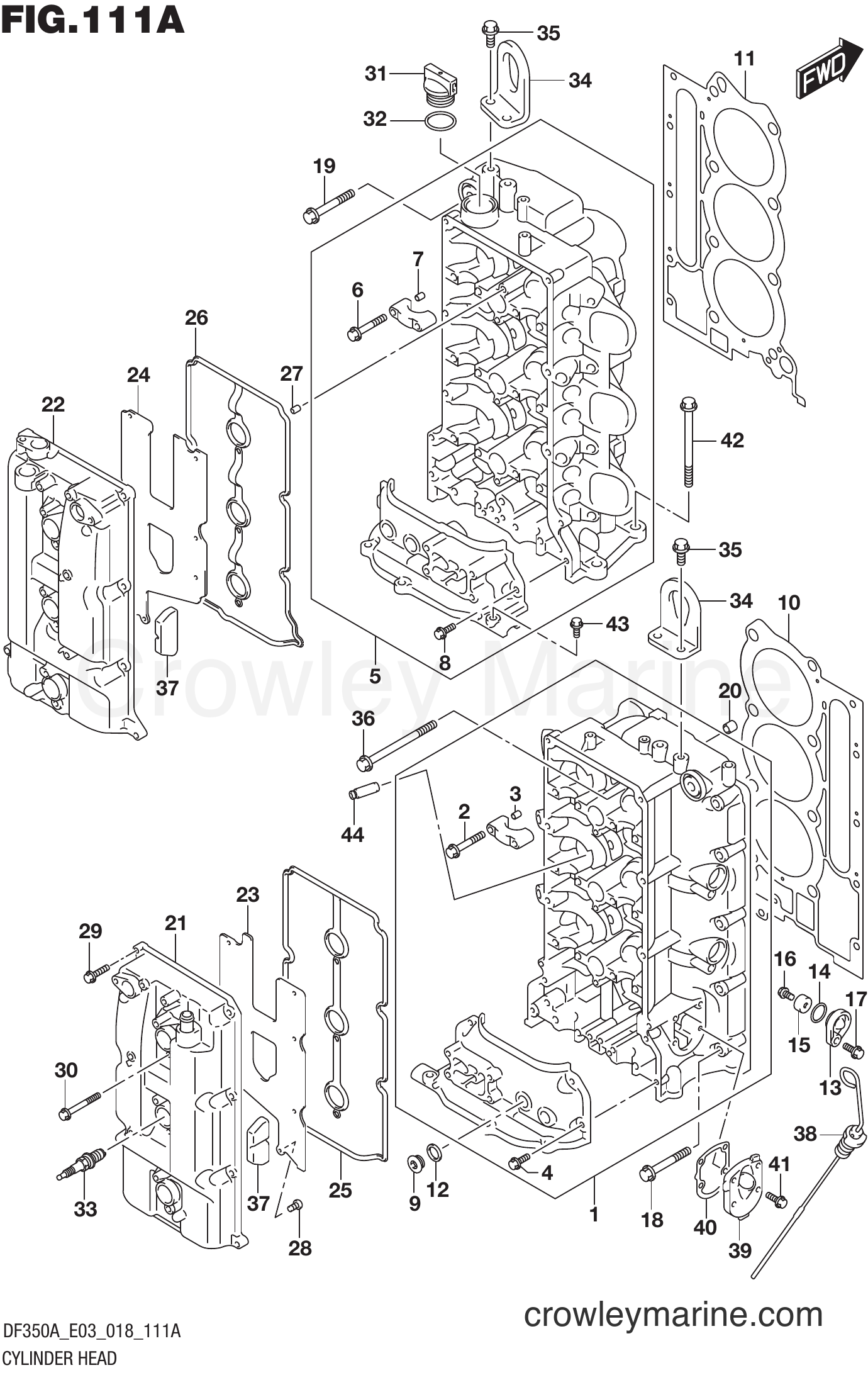

Serial Range Four-Stroke Outboard 350 - DF350A 810001~ CYLINDER HEAD diagram
1
Suzuki Marine
HEAD ASSY,CYLIN11101-98L20
Required: 1
HEAD ASSY, CYLINDER STBD
Supersedes: 11101-98L00
$1309.66
You save $231.12
$2.19
You save $0.39
$1.83
You save $0.32
$2.08
You save $0.37
5
Suzuki Marine
HEAD ASSY,CYLIN11103-98L20
Required: 1
HEAD ASSY, CYLINDER PORT
Supersedes: 11103-98L00
$1309.66
You save $231.12
$2.19
You save $0.39
$1.83
You save $0.32
$2.08
You save $0.37
$3.45
You save $0.61
10
Suzuki Marine
CYLINDER GASKET11141-98L00
Required: 1
GASKET, CYL HEAD STBD
$80.47
You save $14.20
11
Suzuki Marine
CYLINDER GASKET11142-98L00
Required: 1
GASKET, CYL HEAD PORT
$83.52
You save $14.74
12
Suzuki Marine
GASKET 16X22X0.09168-16009
Required: 4
GASKET (16X22X0.8)
$2.57
You save $0.45
13
Suzuki Marine
COVER,PROTCTION11261-93J00
Required: 4
COVER, PROTECTION ANODE
In stock
5+ in stock
$15.39
You save $2.72
14
Suzuki Marine
O-RING,D:1.9,ID09280-22019
Required: 4
O RING (D:1.9,ID:21.8)
In stock
Only 2 remaining
$2.42
You save $0.43
15
Suzuki Marine
ANODE,PROTECTIO55321-87J01
Required: 4
ANODE, PROTECTION
In stock
5+ in stock
$6.49
You save $1.14
In stock
5+ in stock
$3.05
You save $0.54
In stock
5+ in stock
$2.79
You save $0.49
$3.94
You save $0.70
$3.94
You save $0.70
20
Suzuki Marine
PIN09206-15001
Required: 4
PIN (12.4X15X17)
In stock
Only 2 remaining
$3.88
You save $0.69
21
Suzuki Marine
Obsolete Suzuki Part11170-93J01
Required: 1
COVER, CYL HEAD STBD
$263.71
You save $46.54
22
Suzuki Marine
COVER COMP,CYLI11180-98L00
Required: 1
COVER, CYLINDER HEAD PORT
$257.63
You save $45.47
23
Suzuki Marine
Obsolete Suzuki Part11173-93J00
Required: 1
PLATE, BREATHER STBD
$4.39
You save $0.78
24
Suzuki Marine
Obsolete Suzuki Part11183-93J00
Required: 1
PLATE, BREATHER PORT
$5.33
You save $0.94
25
Suzuki Marine
Cylinder Head Gasket11179-93J00
Required: 1
GASKET, CYL HEAD COVER STBD
$21.51
You save $3.80
26
Suzuki Marine
Cylinder Head Gasket11189-93J00
Required: 1
GASKET, CYL HEAD COVER PORT
$20.80
You save $3.67
$1.83
You save $0.32
In stock
Only 2 remaining
$1.40
You save $0.25
$2.08
You save $0.37
$2.49
You save $0.44
31
Suzuki Marine
Oil Filler Cap11382-93J00
Required: 1
CAP, OIL FILLER
$4.96
You save $0.88
32
Suzuki Marine
O RING D:3.1 ID09280-26006
Required: 1
O RING (D:3.1,ID:26.4)
In stock
Only 5 remaining
$2.86
You save $0.50
33
Suzuki Marine
PLUG,SPARK NGK09482-00642
Required: 6
SPARK PLUG (ILZKR7D8)
In stock
Only 1 remaining
$21.57
You save $3.81
34
Suzuki Marine
HOOK,ENGINE11291-98L00
Required: 2
HOOK, ENGINE
$12.16
You save $2.15
In stock
5+ in stock
$2.79
You save $0.49
36
Suzuki Marine
BOLT COMP,CYLIN11119-98L00
Required: 16
BOLT, CYLINDER HEAD
$7.25
You save $1.28
37
Required: 2
SEPARATOR, OIL BREATHER
Price unavailable
38
Suzuki Marine
GAUGE COMP,OIL16910-98L00
Required: 1
GAUGE, OIL LEVEL
$27.51
You save $4.85
39
Suzuki Marine
GUIDE,OIL LEVEL16931-98L00
Required: 1
GUIDE, OIL LEVEL GAUGE
$35.41
You save $6.25
40
Suzuki Marine
GASKET,OIL LEVE16941-98L00
Required: 1
GASKET, OIL LEVEL GAUGE GUIDE
$3.73
You save $0.66
In stock
Only 3 remaining
$2.37
You save $0.42
42
Suzuki Marine
BOLT,10X19509116-10146
Required: 2
BOLT (10X195)
$30.09
You save $5.31
$3.71
You save $0.66
44
Suzuki Marine
GUIDE,VALVE OS11115-98L00-001
Required: 24
GUIDE, VALVE (OS:0.5)
$33.31
You save $5.88
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
