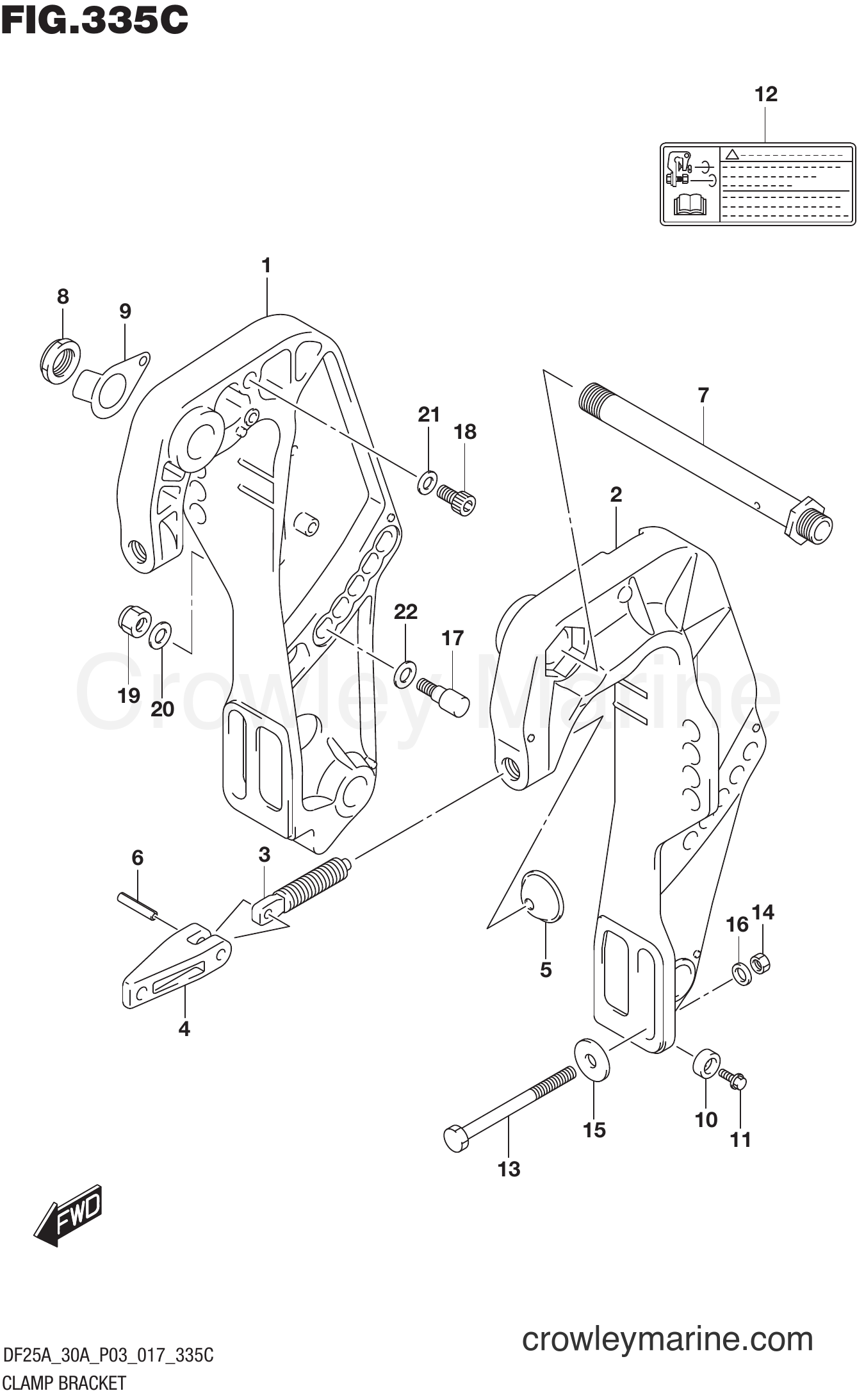

Serial Range Four-Stroke Outboard 25 - DF25A 710001~ CLAMP BRACKET (DF25AT P03) diagram
1
Required: 1
BRACKET, CLAMP STBD (BLACK)
Price unavailable
2
Required: 1
BRACKET, CLAMP PORT (BLACK)
Price unavailable
3
Suzuki Marine
SCREW,CLAMP41211-94LA0
Required: 2
SCREW, CLAMP
$11.69
You save $2.06
4
Suzuki Marine
HANDLE,CLAMP41212-91J00
Required: 2
HANDLE, CLAMP
$14.39
You save $2.54
5
Suzuki Marine
PLATE,CLAMP41213-94J01
Required: 2
PLATE, CLAMP
In stock
Only 1 remaining
$3.49
You save $0.62
6
Suzuki Marine
PIN,SPRING(6X2509205-06021
Required: 2
PIN, SPRING (6X25)
$2.11
You save $0.37
7
Suzuki Marine
SHAFT,CLAMP BRA41130-94LA0
Required: 1
SHAFT, CLAMP BRACKET
$199.84
You save $35.27
$26.55
You save $4.69
9
Suzuki Marine
WASHER,CLAMP BR41135-93J11
Required: 1
WASHER, CLAMP BRACKET SHAFT
$4.59
You save $0.81
10
Suzuki Marine
ANODE,PROTECTIO55321-87J01
Required: 2
ANODE, PROTECTION
In stock
5+ in stock
$6.49
You save $1.14
10
Suzuki Marine
MAGNESIUM ANODE55321-87J11
Required: 1
ANODE, MAGNESIUM
In stock
Only 1 remaining
$11.46
You save $2.02
In stock
5+ in stock
$3.05
You save $0.54
12
Required: 1
MARK, CLAMP BRACKET
Price unavailable
13
Suzuki Marine
BOLT,12X100,PIT09100-12093
Required: 4
BOLT (12X100)
$13.00
You save $2.29
$5.13
You save $0.91
15
Suzuki Marine
WASHER09160-12044
Required: 4
WASHER (12.5X35X3.2)
$3.60
You save $0.64
16
Suzuki Marine
WASHER,12.5X22X09160-12110
Required: 4
WASHER (12.5X22X3)
$3.91
You save $0.69
17
Suzuki Marine
PIN,TILT LOCK45421-94LA0
Required: 2
PIN, TILT LOCK
$10.42
You save $1.84
18
Suzuki Marine
BOLT09106-10065
Required: 2
BOLT (10X20)
$6.38
You save $1.13
$2.45
You save $0.43
20
Suzuki Marine
WASHER09160-10082
Required: 2
WASHER (10.5X19X2)
$1.67
You save $0.29
21
Suzuki Marine
WASHER09160-10082
Required: 2
WASHER (10.5X19X2)
$1.67
You save $0.29
22
Suzuki Marine
WASHER09160-12066
Required: 2
WASHER (12.5X22X2.5)
$1.84
You save $0.32
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
