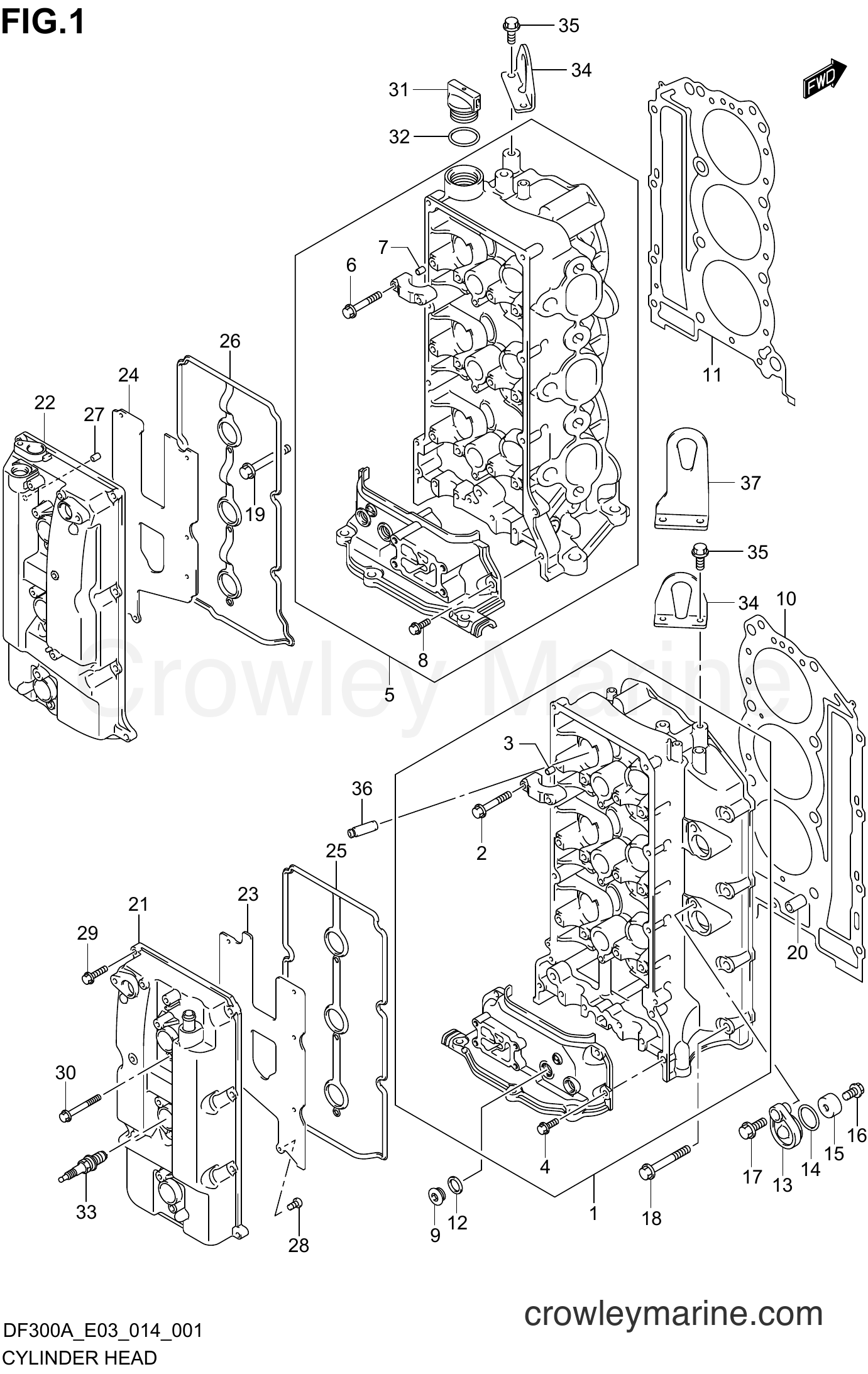

Serial Range Four-Stroke Outboard 250 - DF250AP 410001~ CYLINDER HEAD diagram
1
Suzuki Marine
HEAD ASSY,CYL S11101-98J10
Required: 1
HEAD ASSY, CYLINDER STBD
Supersedes: 11101-98J03
$1476.09
You save $260.49
2
Suzuki Marine
BOLT,CAMSHAFT H11128-90J00
Required: 16
.BOLT, CAM SHAFT HOUSING
$2.82
You save $0.50
$1.83
You save $0.32
In stock
5+ in stock
$2.37
You save $0.42
5
Suzuki Marine
HEAD ASSY,CYL P11103-98J10
Required: 1
HEAD ASSY, CYLINDER PORT
Supersedes: 11103-98J03
$1433.08
You save $252.90
6
Suzuki Marine
BOLT,CAMSHAFT H11128-90J00
Required: 16
.BOLT, CAM SHAFT HOUSING
$2.82
You save $0.50
$1.83
You save $0.32
In stock
5+ in stock
$2.37
You save $0.42
$3.45
You save $0.61
10
Suzuki Marine
CYLINDER GASKET11141-98J10
Required: 1
GASKET, CYL HEAD STBD
$91.58
You save $16.16
11
Suzuki Marine
CYLINDER GASKET11142-98J10
Required: 1
GASKET, CYL HEAD PORT
$102.08
You save $18.02
12
Suzuki Marine
GASKET 16X22X0.09168-16009
Required: 4
GASKET (16X22X0.8)
$2.57
You save $0.45
13
Suzuki Marine
COVER,PROTCTION11261-93J00
Required: 4
COVER, PROTECTION ANODE
In stock
5+ in stock
$15.39
You save $2.72
14
Suzuki Marine
O-RING,D:1.9,ID09280-22019
Required: 4
O RING (D:1.9,ID:21.8)
In stock
Only 2 remaining
$2.42
You save $0.43
15
Suzuki Marine
ANODE,PROTECTIO55321-87J01
Required: 4
ANODE, PROTECTION
Supersedes: 55321-87J00
In stock
5+ in stock
$6.49
You save $1.14
In stock
5+ in stock
$3.05
You save $0.54
In stock
5+ in stock
$2.79
You save $0.49
$3.94
You save $0.70
$3.94
You save $0.70
20
Suzuki Marine
PIN09206-14004
Required: 4
PIN (14X11.4X23)
$3.88
You save $0.69
21
Suzuki Marine
Obsolete Suzuki Part11170-93J01
Required: 1
COVER, CYL HEAD STBD
$263.71
You save $46.54
22
Suzuki Marine
COVER,CYLINDER11180-98J01
Required: 1
COVER, CYLINDER HEAD PORT
$238.62
You save $42.11
23
Suzuki Marine
Obsolete Suzuki Part11173-93J00
Required: 1
PLATE, BREATHER STBD
$4.39
You save $0.78
24
Suzuki Marine
Obsolete Suzuki Part11183-93J00
Required: 1
PLATE, BREATHER PORT
$5.33
You save $0.94
25
Suzuki Marine
Cylinder Head Gasket11179-93J00
Required: 1
GASKET, CYL HEAD COVER STBD
$21.51
You save $3.80
26
Suzuki Marine
Cylinder Head Gasket11189-93J00
Required: 1
GASKET, CYL HEAD COVER PORT
$20.80
You save $3.67
$1.83
You save $0.32
$1.47
You save $0.26
$2.08
You save $0.37
$2.49
You save $0.44
31
Suzuki Marine
Oil Filler Cap11382-93J00
Required: 1
CAP, OIL FILLER
$4.96
You save $0.88
32
Suzuki Marine
O RING D:3.1 ID09280-26006
Required: 1
O RING (D:3.1,ID:26.4)
In stock
Only 5 remaining
$2.86
You save $0.50
33
Suzuki Marine
SPARK PLUG BKR609482-00427
Required: 6
SPARK PLUG (BKR6E)
In stock
5+ in stock
$3.44
You save $0.61
34
Suzuki Marine
HOOK,ENGINE11291-93J00
Required: 2
HOOK, ENGINE
$10.45
You save $1.85
In stock
5+ in stock
$2.79
You save $0.49
36
Suzuki Marine
GUIDE,VALVE OS11115-93J10-001
Required: 24
GUIDE, VALVE (OS:0.5)
$37.31
You save $6.58
37
Suzuki Marine
Lifting Eye11291-98J00
Required: 1
HOOK, ENGINE
$15.57
You save $2.75
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
