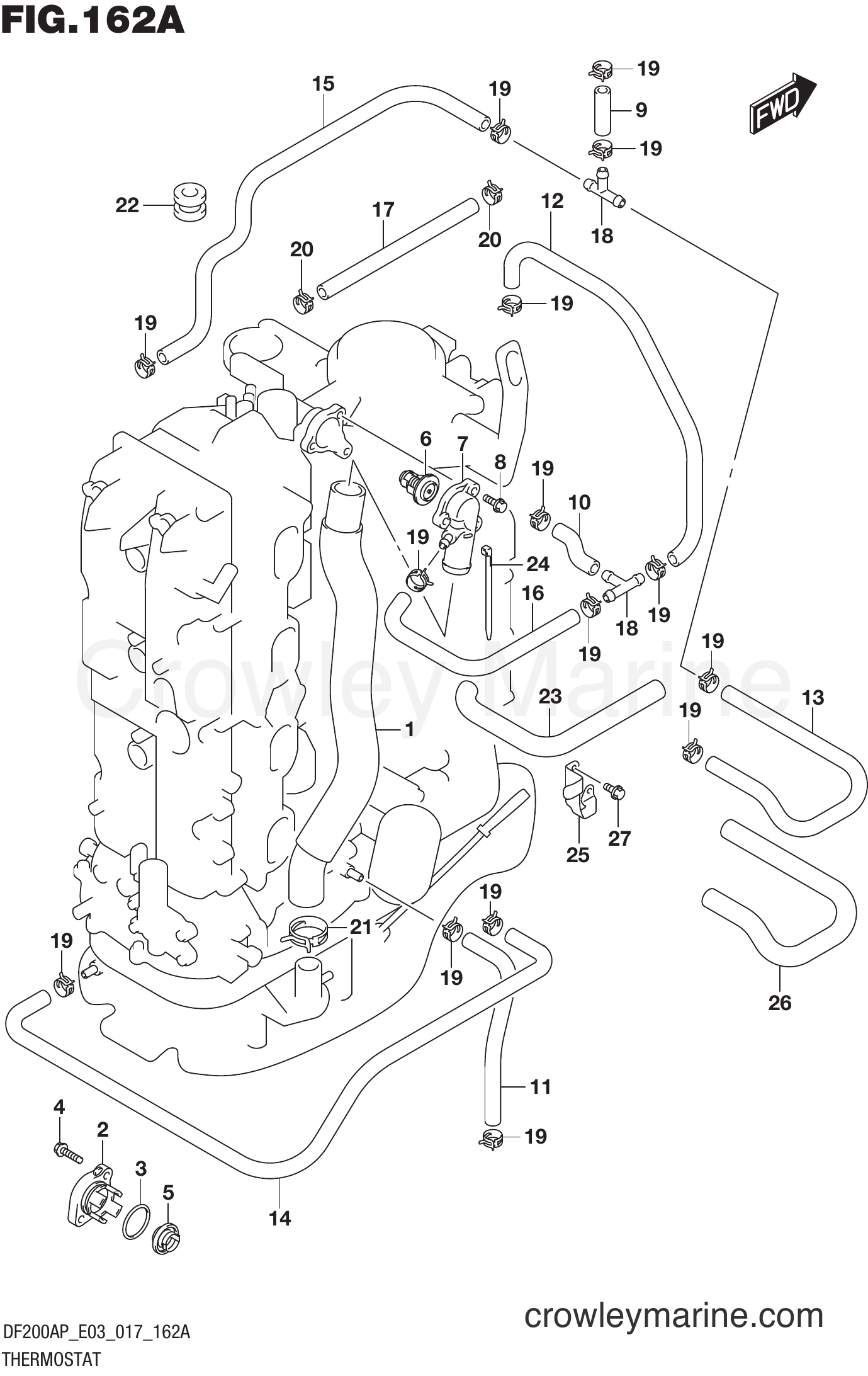

Serial Range Four-Stroke Outboard 200 - DF200AP 710001~ THERMOSTAT diagram
1
Suzuki Marine
HOSE,WATER RETU11196-96L00
Required: 1
HOSE, WATER RETURN
$39.37
You save $6.95
2
Suzuki Marine
COVER,WTR PRESS17611-90J00
Required: 1
COVER, WATER PRESS VALVE (BLACK)
Supersedes: 17611-90J00-YAY
In stock
Only 5 remaining
$30.26
You save $7.56
2
Suzuki Marine
COVER,WTR PRESS17611-90J00
Required: 1
COVER, WATER PRESS VALVE (WHITE)
Supersedes: 17611-90J00-Y5S
In stock
Only 5 remaining
$30.26
You save $7.56
3
Suzuki Marine
O RING D:3.1 ID09280-26006
Required: 1
O RING (D:3.1,ID:26.4)
In stock
Only 5 remaining
$2.69
You save $0.67
4
Suzuki Marine
BOLT09116-06121
Required: 2
BOLT (6X25)
In stock
5+ in stock
$2.62
You save $0.65
5
Suzuki Marine
VALVE COMP,WATE17660-90J00
Required: 1
VALVE, WATER PRESSURE
In stock
Only 2 remaining
$17.05
You save $4.26
6
Suzuki Marine
THERMOSTAT,WATE17670-90J21
Required: 1
THERMOSTAT (50DEG)
Supersedes: 17670-90J20
In stock
Only 5 remaining
$55.81
You save $13.95
6
Suzuki Marine
Thermostat17670-90J11
Required: 1
THERMOSTAT (71DEG)
Supersedes: 17670-90J10
In stock
Only 1 remaining
$55.76
You save $13.94
7
Suzuki Marine
COVER,THERMOSTA17680-96J00
Required: 1
COVER, THERMOSTAT
$41.62
You save $7.35
In stock
Only 3 remaining
$2.23
You save $0.56
9
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE (5X9X600)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.29
You save $1.82
10
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE (5X9X600)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.29
You save $1.82
11
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE (5X9X600)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.29
You save $1.82
12
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE (5X9X600)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.29
You save $1.82
13
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE (5X9X600)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.29
You save $1.82
14
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE (5X9X600)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.29
You save $1.82
15
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE (5X9X600)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.29
You save $1.82
16
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE (5X9X600)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.29
You save $1.82
17
Suzuki Marine
HOSE(9X13X600)09352-90134-600
Required: 1
HOSE (9X13X600)
Supersedes: 09352-90133-600
$11.87
You save $2.09
18
Suzuki Marine
3 WAY JOINT09367-06002
Required: 2
JOINT, 3 WAY
$2.35
You save $0.59
In stock
5+ in stock
$1.86
You save $0.46
In stock
Only 2 remaining
$3.26
You save $0.57
In stock
Only 2 remaining
$5.83
You save $1.46
22
Suzuki Marine
CUSHION,SILENCE09320-09059
Required: 1
CUSHION
Supersedes: 09320-09039
$3.18
You save $0.79
23
Suzuki Marine
Hose Protector18498-96L41
Required: 1
PROTECTOR, HOSE (10.2X11.8X430)
Supersedes: 18498-96L40
$5.41
You save $0.96
24
Suzuki Marine
Clamp09407-25402
Required: 1
CLAMP (L:250)
$4.81
You save $0.85
25
Suzuki Marine
BRACKET,WATER R11198-96L00
Required: 1
BRACKET, WATER RETURN
$8.41
You save $1.48
26
Suzuki Marine
Hose Protector18498-96L30
Required: 1
PROTECTOR (10.2X11.8X300)
$3.50
You save $0.62
In stock
5+ in stock
$2.23
You save $0.56
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
