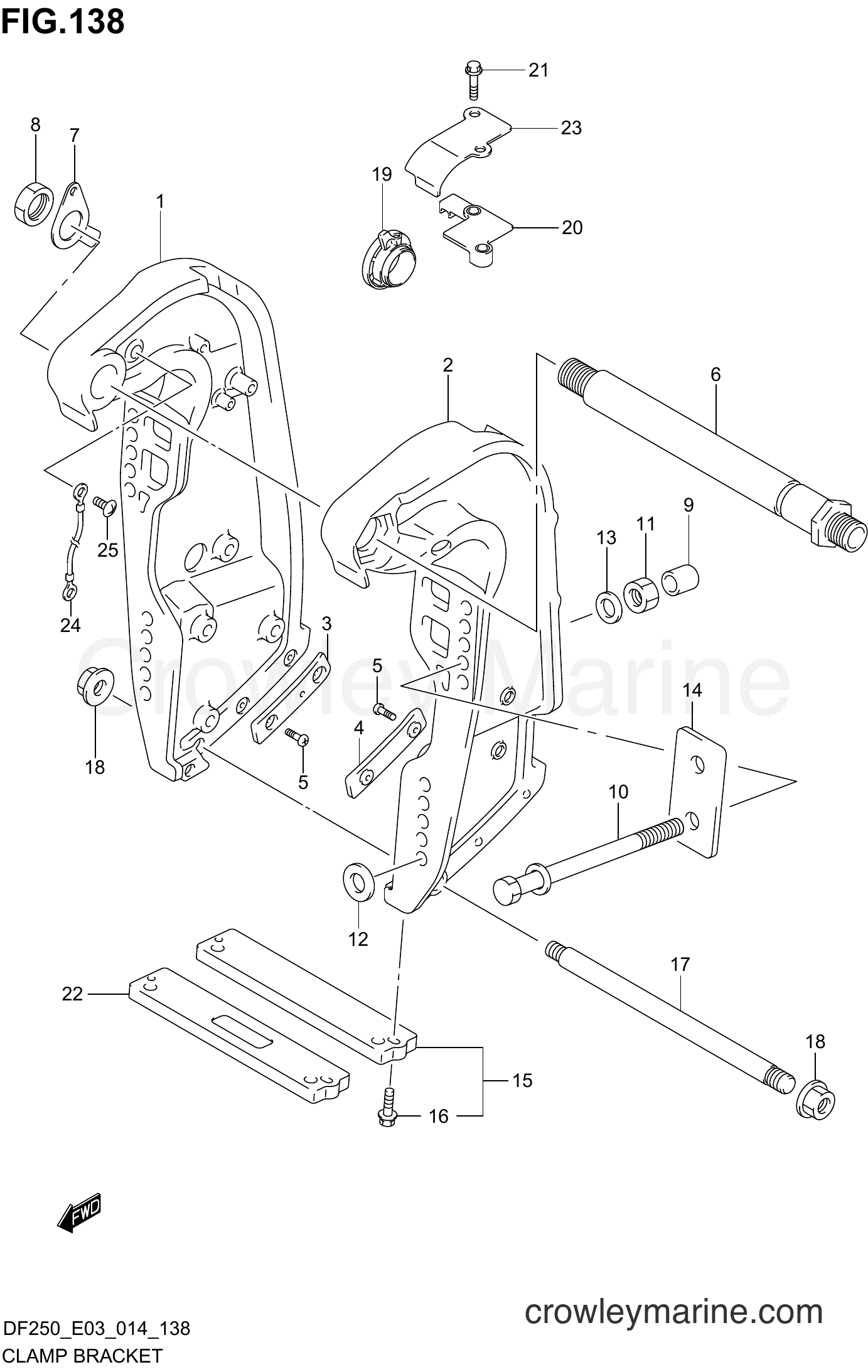

Serial Range Four-Stroke Outboard 250 - DF250 410001~ CLAMP BRACKET TRANSOM(X,XX) (DF225Z E03) diagram
1
Suzuki Marine
BRACKET,CLAMP S41111-93J16-0EP
Required: 1
BRACKET, CLAMP STBD (BLACK)
Supersedes: 41111-93J14-0EP
$473.00
You save $83.47
1
Suzuki Marine
BRACKET,CLAMP S41111-93J15-Y5S
Required: 1
BRACKET, CLAMP STBD (WHITE)
Supersedes: 41111-93J14-Y5S
$398.96
You save $70.41
2
Suzuki Marine
BRACKET,CLAMP P41121-93J08-0EP
Required: 1
BRACKET, CLAMP PORT (BLACK)
Supersedes: 41121-93J06-0EP
$575.88
You save $101.63
2
Suzuki Marine
BRACKET,CLAMP P41121-93J08-Y5S
Required: 1
BRACKET, CLAMP PORT (WHITE)
Supersedes: 41121-93J06-Y5S
$457.22
You save $80.69
3
Suzuki Marine
PLATE,CLAMP BRA41117-93J02
Required: 1
PLATE, CLAMP BRKT LOWER STBD
Supersedes: 41117-93J01
$13.35
You save $2.36
4
Suzuki Marine
Supersedes to 41122-93J0241122-93J01
Required: 1
PLATE, CLAMP BRKT LOWER PORT
$11.39
You save $2.01
$2.00
You save $0.35
6
Suzuki Marine
SHAFT,CLAMP BRA41130-93J12
Required: 1
SHAFT, CLAMP BRKT
$193.29
You save $34.11
7
Suzuki Marine
WASHER,CLAMP BR41135-93J11
Required: 1
WASHER, CLAMP BRACKET SHAFT
$4.59
You save $0.81
$26.55
You save $4.69
9
Suzuki Marine
Cap41153-93J00
Required: 6
CAP, TRANSOM BOLT
$4.14
You save $0.73
10
Suzuki Marine
BOLT,TRANSOM09100-12092
Required: 1
BOLT (12.7X75)
$21.76
You save $3.84
10
Suzuki Marine
BOLT,TRANSOM09100-12086
Required: 6
BOLT (12.7X150)
$26.32
You save $4.65
10
Suzuki Marine
BOLT,115MM LONG09100-12085
Required: 1
BOLT (12.7X115)
$24.50
You save $4.32
$7.88
You save $1.39
$12.89
You save $2.27
$10.08
You save $1.78
14
Suzuki Marine
PLATE,TRANSOM41155-93J02
Required: 2
PLATE, TRANSOM
$20.97
You save $3.70
15
Suzuki Marine
ANODE SET55320-94900
Required: 1
ZINC SET, PROTECTION
In stock
5+ in stock
$38.11
You save $6.72
16
Suzuki Marine
BOLT09116-06121
Required: 2
.BOLT (6X25)
In stock
5+ in stock
$2.78
You save $0.49
17
Suzuki Marine
PIN,TILT LOCK45421-87D03
Required: 1
PIN, TILT LOCK
Supersedes: 45421-87D02
$22.58
You save $3.98
$4.81
You save $0.85
19
Suzuki Marine
CAM ASSY,TILT L48140-93J01
Required: 1
CAM, TILT LIMIT SWITCH
$14.48
You save $2.56
20
Suzuki Marine
HOLDER,TILT LIM48144-93J00
Required: 1
HOLDER, TILT LIMIT SWITCH
$9.89
You save $1.74
$2.44
You save $0.43
22
Suzuki Marine
MAGNIESIUM ANOD55321-94910
Required: 1
ANODE (MAGNESIUM)
$40.32
You save $7.11
23
Suzuki Marine
COVER,TILT LIMI48145-93J00
Required: 1
COVER, TILT LIMIT SWITCH
$9.81
You save $1.73
24
Suzuki Marine
LEAD,CLAMP TO S36894-87D00
Required: 1
LEAD (CLAMP TO SWIVEL)
$11.97
You save $2.11
$2.00
You save $0.35
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
