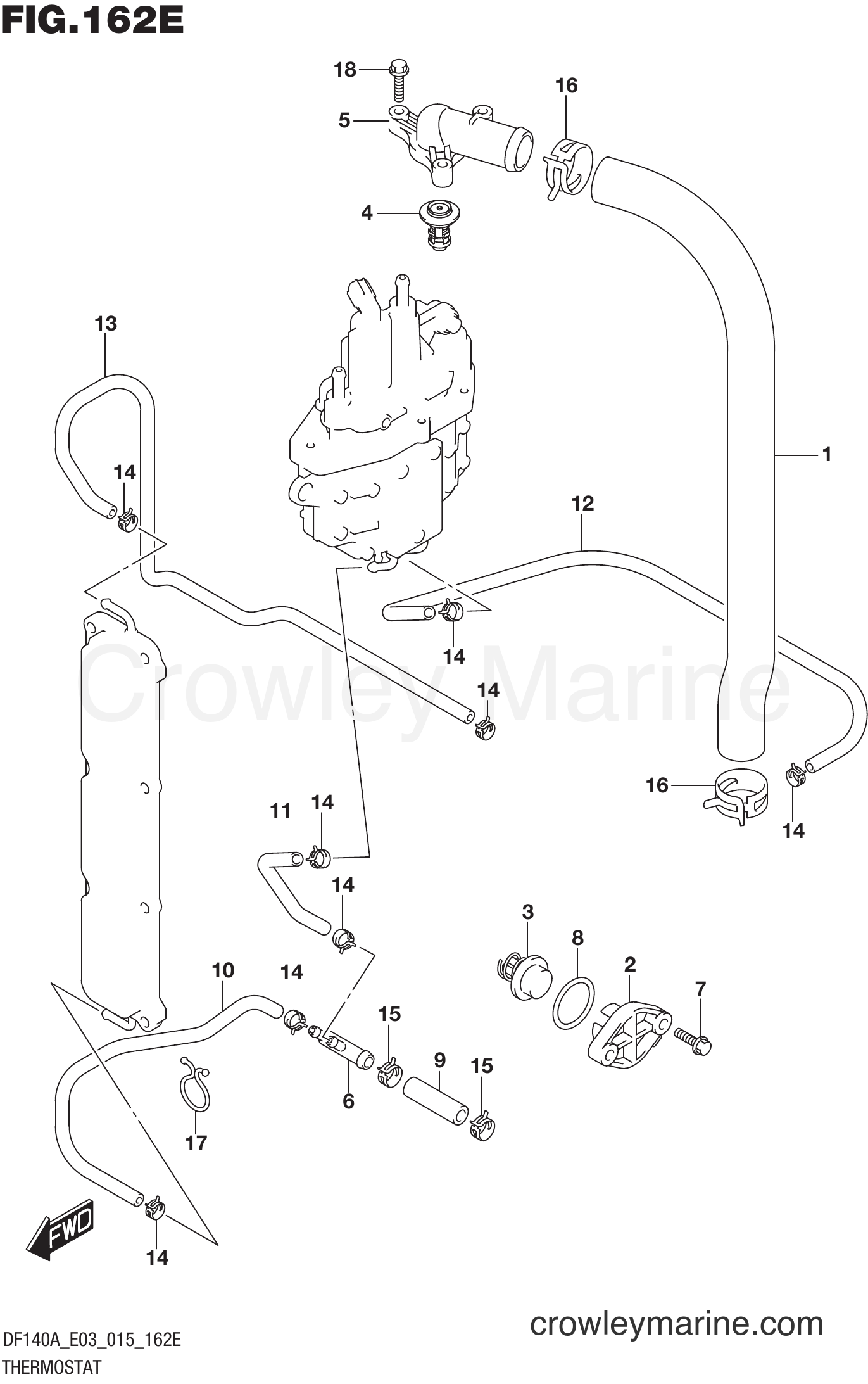

Serial Range Four-Stroke Outboard 140 - DF140A 510001~ THERMOSTAT (DF140AZ E03) diagram
1
Suzuki Marine
HOSE,WATER RETU11196-90J00
Required: 1
HOSE, WATER RETURN
$25.90
You save $6.48
2
Suzuki Marine
COVER,WTR PRESS17611-90J00
Required: 1
COVER, WATER PRESS VALVE (BLACK)
Supersedes: 17611-90J00-0EP
In stock
Only 5 remaining
$30.26
You save $7.56
2
Suzuki Marine
COVER,WTR PRESS17611-90J00
Required: 1
COVER, WATER PRESS VALVE (WHITE)
Supersedes: 17611-90J00-Y5S
In stock
Only 5 remaining
$30.26
You save $7.56
3
Suzuki Marine
VALVE COMP,WATE17660-90J00
Required: 1
VALVE, WATER PRESSURE
In stock
Only 2 remaining
$17.05
You save $4.26
4
Suzuki Marine
THERMOSTAT,WATE17670-90J21
Required: 1
THERMOSTAT (50sC)
Supersedes: 17670-90J20
In stock
Only 5 remaining
$55.81
You save $13.95
4
Suzuki Marine
Thermostat17670-90J11
Required: 1
THERMOSTAT (71sC)
Supersedes: 17670-90J10
In stock
Only 1 remaining
$55.76
You save $13.94
5
Suzuki Marine
COVER COMP,THER17681-90J02
Required: 1
COVER, THERMOSTAT
Supersedes: 17681-90J01
$40.01
You save $10.00
6
Suzuki Marine
3WAY,WATER HOSE17711-90J00
Required: 1
3 WAY, WATER HOSE
$3.91
You save $0.69
7
Suzuki Marine
BOLT09116-06121
Required: 2
BOLT (6X25)
In stock
5+ in stock
$2.62
You save $0.65
8
Suzuki Marine
O RING D:3.1 ID09280-26006
Required: 1
O RING (D:3.1,ID:26.4)
In stock
Only 5 remaining
$2.69
You save $0.67
9
Suzuki Marine
HOSE,11X15X60009352-11154-600
Required: 1
HOSE (11X15X600)
Supersedes: 09352-11153-600
$13.50
You save $2.38
10
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE (5X9X600)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.29
You save $1.82
11
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE (5X9X600)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.29
You save $1.82
12
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE (5X9X600)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.29
You save $1.82
13
Suzuki Marine
Hose09352-50903-00B
Required: 1
HOSE (5X9X2000)
$19.52
You save $3.44
In stock
5+ in stock
$1.86
You save $0.46
In stock
Only 1 remaining
$1.40
You save $0.35
In stock
Only 2 remaining
$5.83
You save $1.46
-50%
In stock
Only 2 remaining
$0.93
You save $0.93
In stock
Only 3 remaining
$2.23
You save $0.56
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
