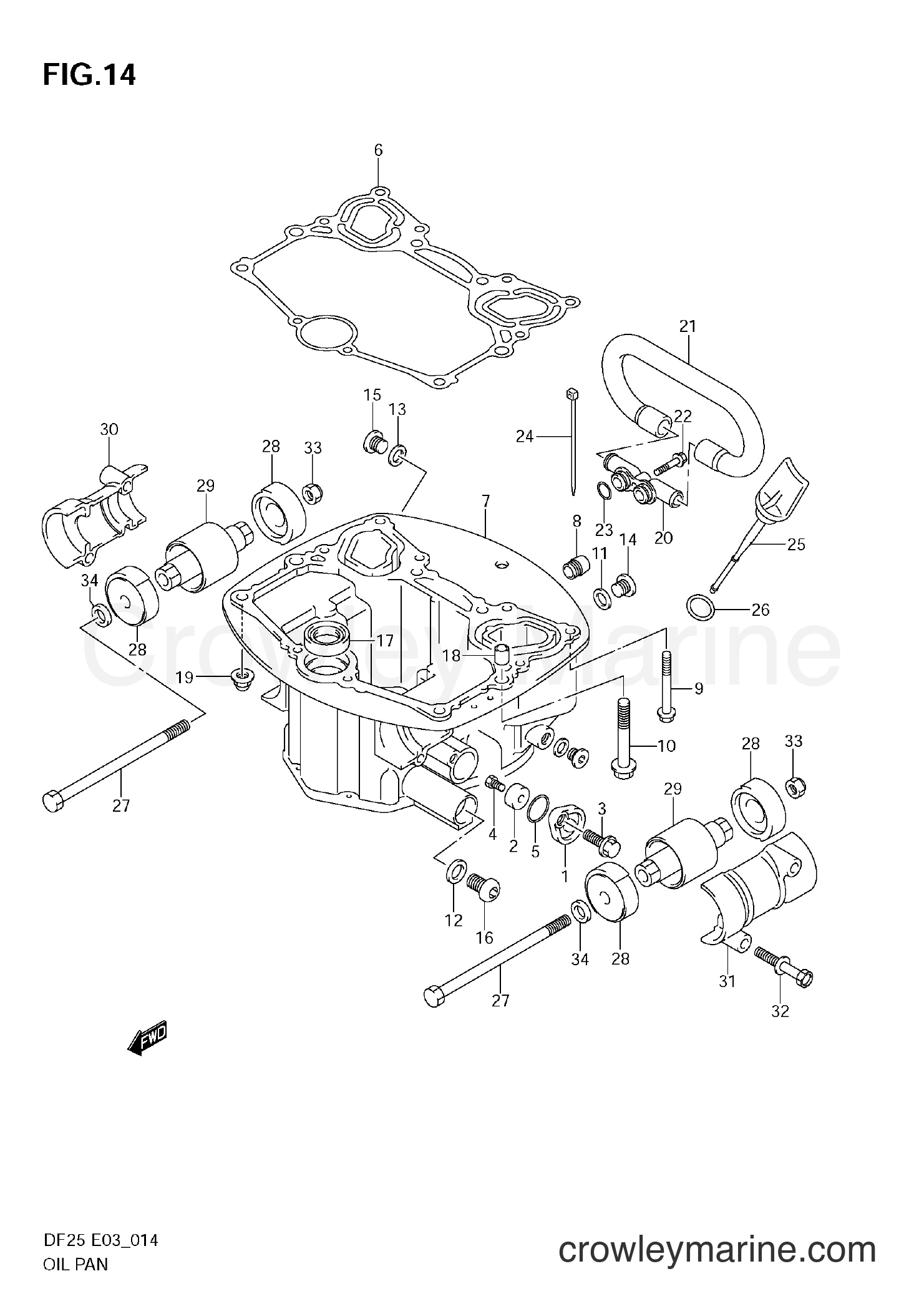

2007 Four-Stroke Outboard 25 - DF25 OIL PAN diagram
1
Suzuki Marine
COVER,PROTCTION11261-93J00
Required: 1
COVER, PROTECTION ANODE
In stock
5+ in stock
$15.39
You save $2.72
2
Suzuki Marine
ANODE,PROTECTIO55321-87J01
Required: 1
ANODE, PROTECTION
Supersedes: 55321-87J00
In stock
5+ in stock
$6.49
You save $1.14
2
Suzuki Marine
MAGNESIUM ANODE55321-87J11
Required: 1
ANODE (MAGNESIUM)
Supersedes: 55321-87J10
In stock
Only 1 remaining
$11.46
You save $2.02
3
Suzuki Marine
BOLT29103-93J30
Required: 1
BOLT, ANODE COVER (8X25)
$3.65
You save $0.65
4
Suzuki Marine
BOLT,PROTECTION09103-06281
Required: 1
BOLT, ANODE (6X14)
In stock
5+ in stock
$3.05
You save $0.54
5
Suzuki Marine
O-RING,D:1.9,ID09280-22019
Required: 1
O RING, ANODE COVER (ID:21.8,DD:1.9)
In stock
Only 2 remaining
$2.42
You save $0.43
6
Suzuki Marine
Oil Pan Gasket11489-95J01
Required: 1
GASKET, OIL PAN
$31.85
You save $5.62
$426.80
You save $75.32
8
Suzuki Marine
PIPE,EXHAUST43112-94L01
Required: 1
PIPE, EXHAUST
Supersedes: 43112-99E00
In stock
Only 2 remaining
$5.89
You save $1.04
9
Suzuki Marine
BOLT,ENG SET NO09116-08126
Required: 6
BOLT, CYLINDER HEAD SET (8X65
$4.11
You save $0.72
10
Suzuki Marine
BOLT,ENG SET NO09116-10137
Required: 6
BOLT, OIL PAN (10X70)
$7.57
You save $1.34
11
Suzuki Marine
GASKET,WATER PL09168-12011
Required: 2
GASKET, WATER PLUG (12X19X1.5
$1.58
You save $0.28
12
Suzuki Marine
GASKET 12.5X20X09168-12012
Required: 1
GASKET, OIL DRAIN PLUG (12X20X2.5)
In stock
5+ in stock
$1.89
You save $0.33
13
Suzuki Marine
GASKET,12X17X109168-12017
Required: 2
GASKET, EXHAUST PLUG (12X17X1)
In stock
Only 5 remaining
$2.01
You save $0.36
14
Suzuki Marine
Plug09248-12007
Required: 2
PLUG, WATER (12X9)
In stock
Only 1 remaining
$6.11
You save $1.08
15
Suzuki Marine
Plug09248-12007
Required: 2
PLUG, EXHAUST (12X9)
In stock
Only 1 remaining
$6.11
You save $1.08
16
Suzuki Marine
PLUG,OIL DRAIN09248-12009
Required: 1
PLUG, OIL DRAIN (12X18.7)
In stock
Only 1 remaining
$5.55
You save $0.98
17
Suzuki Marine
Oil Seal09282-15010
Required: 2
SEAL, DRIVE SHAFT UPPER OIL (14.7X25X6.5)
Supersedes: 09282-15008
$4.87
You save $0.86
18
Suzuki Marine
PIN04211-13149
Required: 2
PIN, OIL PAN
$2.37
You save $0.42
19
Suzuki Marine
Nut08313-20087
Required: 2
NUT, CRANKCASE STUD BOLT
$2.24
You save $0.40
20
Suzuki Marine
PIPE COMP,EXHAU11540-95J00
Required: 1
PIPE, EXHAUST
In stock
Only 1 remaining
$12.36
You save $2.18
$12.98
You save $2.29
$2.09
You save $0.37
23
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)09280-15003
Required: 2
O RING (ID:14.8,DD:2.4)
$1.83
You save $0.32
$3.15
You save $0.56
25
Suzuki Marine
Obsolete Suzuki Part11381-95J00
Required: 1
GAUGE, OIL LEVEL
$18.85
You save $3.33
26
Suzuki Marine
O-RING,OIL LEVE09280-16013
Required: 1
O RING, OIL LEVEL GAUGE
$5.05
You save $0.89
27
Suzuki Marine
Obsolete Suzuki Part54112-95J01
Required: 2
BOLT, UPPER MOUNT
$15.85
You save $2.80
28
Suzuki Marine
Obsolete Suzuki Part54120-95J00
Required: 4
MOUNT, UPPER THRUST
$9.83
You save $1.73
$57.80
You save $10.20
30
Suzuki Marine
Obsolete Suzuki Part54148-95J00-0EP
Required: 1
COVER, UPPER MT STBD (BLACK)
$25.26
You save $4.46
31
Suzuki Marine
Obsolete Suzuki Part54149-95J00-0EP
Required: 1
COVER, UPPER MT PORT (BLACK)
$25.26
You save $4.46
32
Suzuki Marine
BOLT, GEARCASE09116-08131
Required: 4
BOLT, UPPER MOUNT COVER (8X45
$4.62
You save $0.81
33
Suzuki Marine
Nut09159-10050
Required: 2
NUT, UPPER MOUNT BOLT (M10)
$2.45
You save $0.43
34
Suzuki Marine
WASHER,UPR MT B09160-10140
Required: 2
WASHER, UPPER MOUNT BOLT (10.5X18X3)
$2.44
You save $0.43
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
