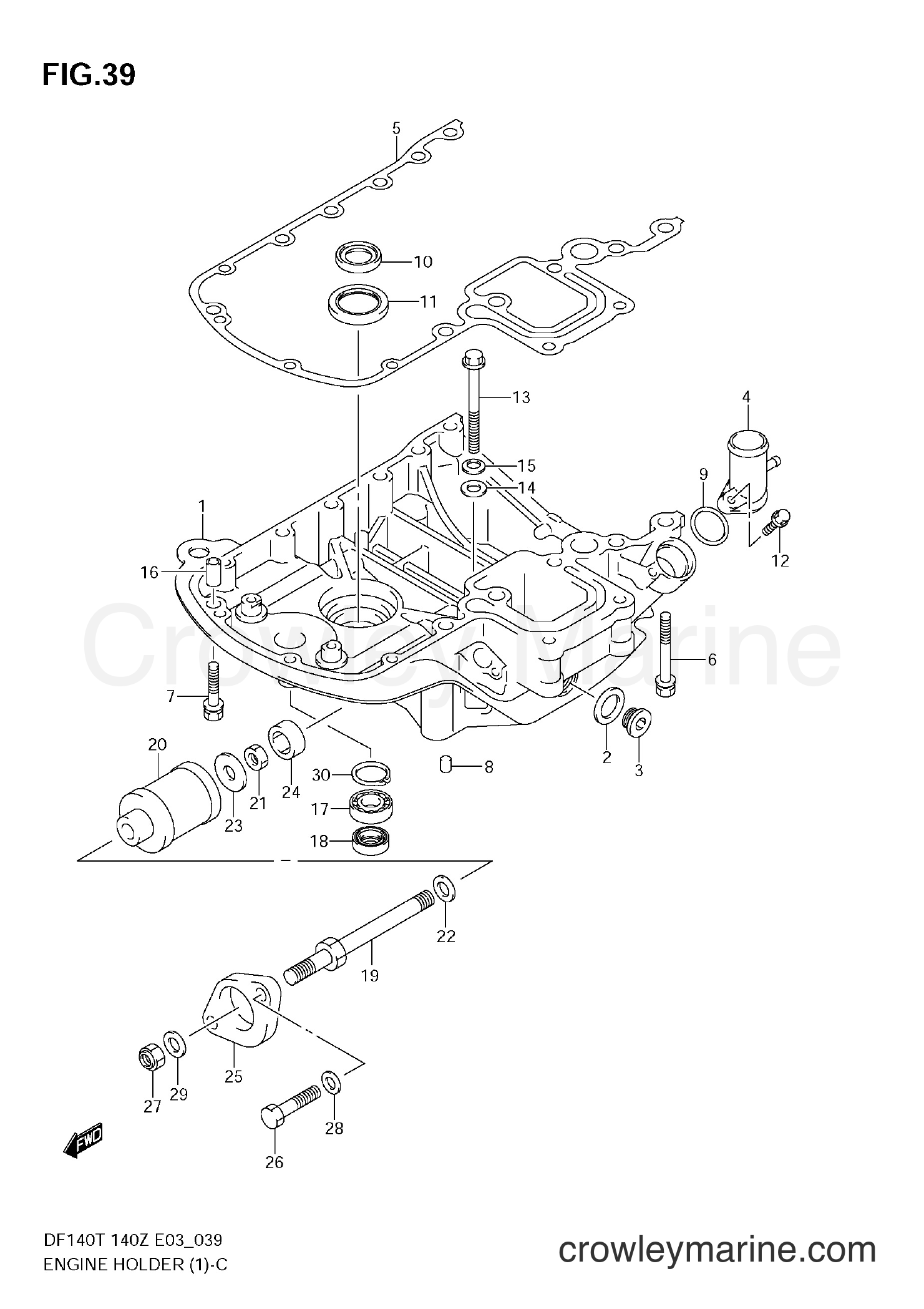

2010 Four-Stroke Outboard 140 - DF140Z ENGINE HOLDER diagram
1
Suzuki Marine
Supersedes to 51110-90830-0EP51110-90810-0EP
Required: 1
HOLDER SET, ENGINE (BLACK)
$515.63
You save $90.99
1
Suzuki Marine
HOLDER SET,ENGI51110-90822-0EP
Required: 1
HOLDER SET, ENGINE (BLACK)
Supersedes: 51110-90821-0EP
$1135.93
You save $200.46
1
Suzuki Marine
HOLDER SET,ENGI51110-90822-0EP
Required: 1
HOLDER SET, ENGINE (BLACK)
$1135.93
You save $200.46
2
Suzuki Marine
WASHER,18.5X28X09160-18031
Required: 1
.GASKET (18.5X28X2.6)
$2.54
You save $0.45
$6.32
You save $1.11
In stock
Only 2 remaining
$8.86
You save $1.56
4
Suzuki Marine
UNION,WATER RET51115-90J00
Required: 1
UNION, WATER RETURN
$11.56
You save $2.04
5
Suzuki Marine
GASKET,ENGINE H51211-90J10
Required: 1
GASKET, ENGINE HOLDER
In stock
Only 1 remaining
$67.15
You save $11.85
6
Suzuki Marine
BOLT,8X7009116-08160
Required: 4
BOLT (8X70)
Supersedes: 09116-08119
$13.18
You save $2.33
$3.88
You save $0.69
$1.83
You save $0.32
9
Suzuki Marine
O RING D:3.1 ID09280-26006
Required: 1
O RING (D:3.1,ID:26.4)
In stock
Only 5 remaining
$2.86
You save $0.50
In stock
Only 3 remaining
$5.11
You save $0.90
In stock
Only 1 remaining
$19.57
You save $3.45
In stock
Only 3 remaining
$2.37
You save $0.42
13
Suzuki Marine
BOLT01550-0890B
Required: 1
BOLT
Supersedes: 01550-08903
$4.79
You save $0.85
14
Required: 1
WASHER (8.5X19X2.3)
Price unavailable
$2.13
You save $0.38
$1.83
You save $0.32
17
Suzuki Marine
B1 17X35X8 BEAR09262-17019
Required: 1
BEARING, CLUTCH SHAFT
$20.02
You save $3.53
18
Suzuki Marine
SEAL,CLUTCH SHA09289-18001
Required: 1
SEAL, CLUTCH SHAFT
$23.20
You save $4.09
19
Suzuki Marine
BOLT,UPPER MOUN54112-90J10
Required: 2
BOLT, UPPER MOUNT
In stock
Only 2 remaining
$37.04
You save $6.54
20
Suzuki Marine
Upper Mount54130-90J31
Required: 2
MOUNT, UPPER
$85.49
You save $15.09
$2.91
You save $0.51
22
Suzuki Marine
WASHER,UPPER MO54113-90J00
Required: 2
WASHER (12.5X24X2.5)
$8.28
You save $1.46
23
Suzuki Marine
WASHER,12.5X22X09160-12110
Required: 2
WASHER (12.5X22X3.0)
$3.91
You save $0.69
24
Suzuki Marine
MOUNT,UPPR THRU54125-90J01
Required: 2
MOUNT, UPPER THRUST REVERSE
Supersedes: 54125-90J00
$6.02
You save $1.06
25
Suzuki Marine
Supersedes to 54148-90J10-0EP54148-90J01-0EP
Required: 2
COVER, UPPER MOUNT (BLACK)
$32.26
You save $5.69
26
Suzuki Marine
BOLT, 10X4509100-10157-XC0
Required: 4
BOLT (10X45)
Supersedes: 09100-10157
$6.71
You save $1.18
26
Suzuki Marine
BOLT,10X4409116-10176
Required: 4
BOLT (W/WASHER)
Supersedes: 09116-10139
$7.04
You save $1.24
$5.13
You save $0.91
28
Suzuki Marine
WASHER09160-10082
Required: 4
WASHER (10.5X19X2.0)
$1.67
You save $0.29
29
Suzuki Marine
WASHER09164-13007-XC0
Required: 2
WASHER (12.5X22X2.5)
Supersedes: 09164-13007
$4.44
You save $0.78
30
Suzuki Marine
Circle Clip08331-41359
Required: 1
CIRCLIP
Supersedes: 08331-41356
$2.34
You save $0.41
31
Required: 1
REFER TO FIG.40(E-10) FOR DF140T:682149~, DF140Z:680234~
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
