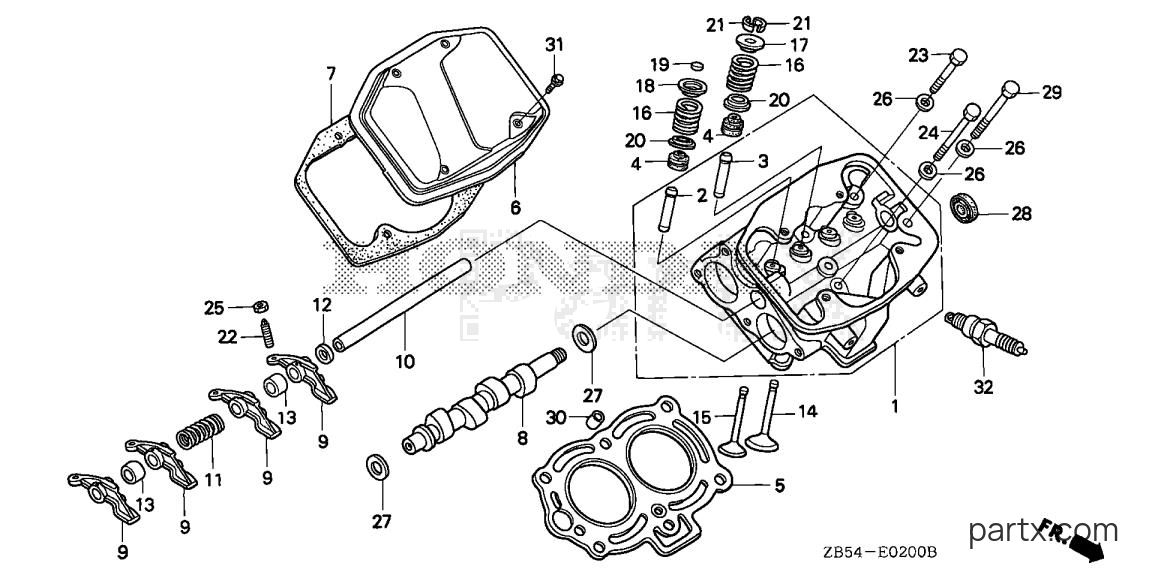

All Years Rv Generators EV - EV4010 LA CYLINDER HEAD diagram
001
Required: 1
CYLINDER HEAD (NOT AVAILABLE)
N
Price unavailable
002
Honda
GUIDE, EX VLV (OS)12204-ZA0-315
Required: 2
GUIDE, EX. VALVE (OVER SIZE)
N
$12.38
You save $2.18
003
Honda
GUIDE, VALVE (OS)12205-ZA0-306
Required: 2
GUIDE, VALVE (OVER SIZE)
N
$13.99
You save $2.47
004
Honda
SEAL, VALVE STEM12209-422-005
Required: 4
SEAL, VALVE STEM
N
$16.03
You save $2.83
005
Honda
GASKET, CYL HD12251-ZA0-800
Required: 1
GASKET, CYLINDER HEAD
N
$57.42
You save $14.36
006
Honda
COVER, CYLINDER HEAD12310-ZA0-700
Required: 1
COVER, CYLINDER HEAD
N
$50.88
You save $8.98
007
Honda
GASKET, HEAD COVER12391-ZA0-800
Required: 1
GASKET, HEAD COVER
N
In stock
Only 3 remaining
$12.38
You save $3.10
$144.02
You save $25.42
009
Honda
ARM, VALVE ROCKER14431-ZA0-010
Required: 4
ARM, VALVE ROCKER
N
$16.37
You save $2.89
010
Honda
SHAFT, VLV RKARM14451-881-000
Required: 1
SHAFT, VALVE ROCKER ARM
N
$18.41
You save $3.25
011
Honda
SPRING, VLV RKARM14481-881-000
Required: 1
SPRING, VALVE ROCKER ARM
N
$4.93
You save $0.87
012
Honda
COLLAR A, VLV RKARM14482-881-000
Required: 1
COLLAR A, VALVE ROCKER ARM
N
$3.03
You save $0.53
013
Honda
COLLAR B, VLV RKARM14483-881-000
Required: 2
COLLAR B, VALVE ROCKER ARM
N
$3.50
You save $0.62
014
Honda
VALVE, IN.14711-ZA0-003
Required: 2
VALVE, IN.
N
$17.63
You save $3.11
015
Honda
VALVE, EX.14721-ZA0-013
Required: 2
VALVE, EX.
N
$35.21
You save $6.21
016
Honda
SPRING, VALVE14753-921-010
Required: 4
SPRING, VALVE
N
$5.02
You save $0.88
017
Honda
RETAINER, VLV SPR14771-881-000
Required: 2
RETAINER, VALVE SPRING (NOT AVAILABLE)
N
$4.23
You save $0.75
018
Honda
RETAINER, VLV SPR14771-935-810
Required: 2
RETAINER, VALVE SPRING
N
$8.91
You save $1.57
019
Honda
ROTATOR, VALVE14772-881-000
Required: 2
ROTATOR, VALVE
N
$3.88
You save $0.68
020
Honda
SEAT, VALVE SPRING14775-921-000
Required: 4
SEAT, VALVE SPRING
N
$1.90
You save $0.34
021
Honda
COTTER, VALVE14781-001-004
Required: 4
COTTER, VALVE
N
$6.15
You save $1.09
021
Honda
COTTER, VALVE14781-001-010
Required: 4
COTTER, VALVE
N
$6.15
You save $1.09
021
Honda
COTTER, VALVE14781-235-000
Required: 4
COTTER, VALVE
N
$2.94
You save $0.52
022
Honda
SCREW, TAPPET ADJ90012-333-000
Required: 4
SCREW, TAPPET ADJUSTING
N
$2.99
You save $0.53
023
Honda
BOLT, HEAD (8X70)90017-935-000
Required: 3
BOLT, HEAD (8X70)
N
$2.21
You save $0.39
024
Honda
BOLT, HEX. (8X55)90019-881-000
Required: 2
BOLT, HEX. (8X55)
N
$2.69
You save $0.47
025
Honda
NUT, TAPPET ADJ90206-001-000
Required: 4
NUT, TAPPET ADJUSTING
N
$1.80
You save $0.32
026
Honda
WASHER, HEAD (8MM)90402-822-000
Required: 6
WASHER, HEAD (8MM)
N
$1.48
You save $0.26
027
Honda
WASHER (16MM)90453-235-000
Required: 2
WASHER, THRUST (16MM)
N
$1.99
You save $0.35
028
Honda
OIL SEAL (16X28X6)91206-921-000
Required: 1
OIL SEAL (16X28X6)
N
$7.43
You save $1.31
029
Honda
BOLT, HEX. (8X100)92201-08100-0H
Required: 1
BOLT, HEX. (8X100)
N
$2.21
You save $0.39
030
Honda
PIN, DOWEL (10X16)94301-10160
Required: 2
PIN, DOWEL (10X16)
N
$2.55
You save $0.45
031
Honda
BOLT, FLANGE (6X20)95701-06020-08
Required: 4
BOLT, FLANGE (6X20)
N
$0.41
You save $0.07
032
Honda
SPARK PLUG (BPR4HS)98076-54747
Required: 2
SPARK PLUG (BPR4HS) (NGK)
N
$2.62
You save $0.46
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
