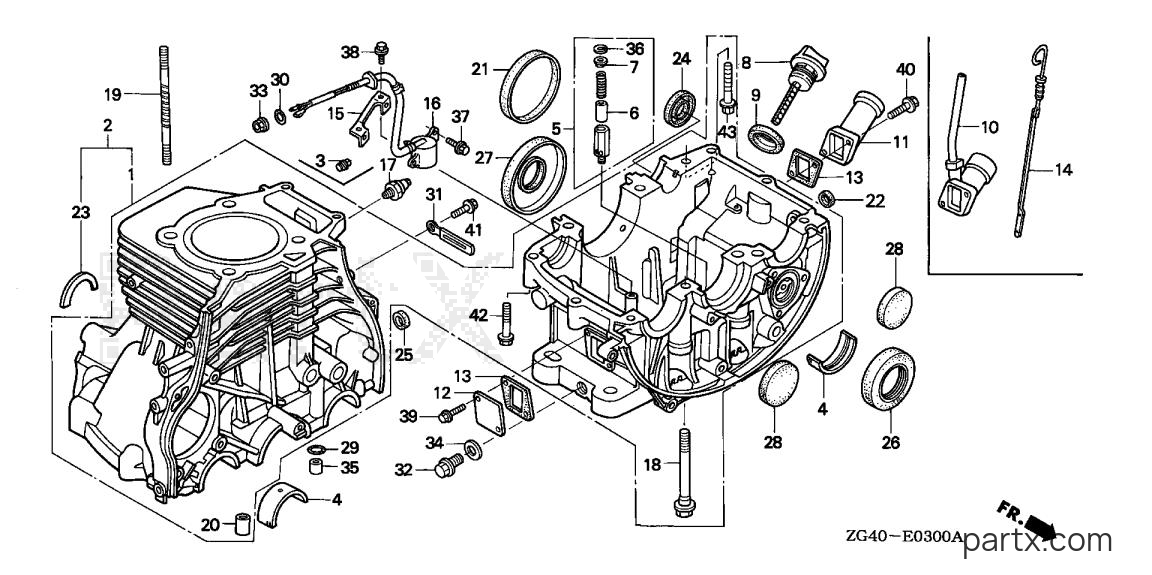

All Years Engines GD - GD320 QA CYLINDER diagram
002
Honda
CYLINDER ASSY.12000-ZG4-650
Required: 1
CYLINDER ASSY.
N
$1057.12
You save $186.55
004
Honda
BEARING A, MAIN13321-ZG4-003
Required: 2
BEARING A, MAIN (BLUE)
N
$22.37
You save $3.95
004
Honda
BEARING B, MAIN13322-ZG4-003
Required: 2
BEARING B, MAIN (BLACK)
N
$22.39
You save $3.95
004
Honda
BEARING C, MAIN13323-ZG4-003
Required: 2
BEARING C, MAIN (BROWN)
N
$22.39
You save $3.95
004
Honda
BEARING D, MAIN13324-ZG4-003
Required: 2
BEARING D, MAIN (GREEN)
N
$22.39
You save $3.95
004
Honda
BEARING E, MAIN13325-ZG4-003
Required: 2
BEARING E, MAIN (YELLOW)
N
$22.37
You save $3.95
004
Honda
BEARING F, MAIN13326-ZG4-003
Required: 2
BEARING F, MAIN (PINK)
N
$22.37
You save $3.95
004
Honda
BEARING G, MAIN13327-ZG4-003
Required: 2
BEARING G, MAIN (RED)
N
$22.39
You save $3.95
004
Honda
BEARING A, MAIN13332-ZG4-000
Required: 2
BEARING A, MAIN (UNDER SIZE 0.25) (BLACK)
N
$20.64
You save $3.64
004
Honda
BEARING B, MAIN13333-ZG4-000
Required: 2
BEARING B, MAIN (UNDER SIZE 0.25) (BROWN)
N
$20.66
You save $3.64
004
Honda
BEARING C, MAIN13334-ZG4-000
Required: 2
BEARING C, MAIN (UNDER SIZE 0.25) (GREEN)
N
$20.66
You save $3.64
004
Honda
BEARING A, MAIN13336-ZG4-000
Required: 2
BEARING A, MAIN (UNDER SIZE 0.50) (BLACK)
N
$20.64
You save $3.64
004
Honda
BEARING B, MAIN13337-ZG4-000
Required: 2
BEARING B, MAIN (UNDER SIZE 0.50) (BROWN)
N
$20.66
You save $3.64
004
Honda
BEARING C, MAIN13338-ZG4-000
Required: 2
BEARING C, MAIN (UNDER SIZE 0.50) (GREEN)
N
$20.66
You save $3.64
004
Honda
BEARING A (US 0.75)13342-ZG4-000
Required: 2
BEARING A, MAIN (UNDER SIZE 0.75) (BLACK)
N
$20.66
You save $3.64
004
Honda
BEARING B (US 0.75)13343-ZG4-000
Required: 2
BEARING B, MAIN (UNDER SIZE 0.75) (BROWN)
N
$20.66
You save $3.64
004
Honda
BEARING C (US 0.75)13344-ZG4-000
Required: 2
BEARING C, MAIN (UNDER SIZE 0.75) (GREEN)
N
$20.64
You save $3.64
005
Required: 1
VALVE ASSY., RELIEF (NOT AVAILABLE)
N
Price unavailable
006
Honda
VALVE, RELIEF15231-413-020
Required: 1
VALVE, RELIEF
N
$23.20
You save $4.10
007
Required: 1
SEAT, RELIEF VALVE (NOT AVAILABLE)
N
Price unavailable
008
Honda
CAP, OIL FILLER15620-ZG3-000
Required: 1
CAP, OIL FILLER
N
$9.25
You save $1.63
009
Honda
GSKT, OIL FILLER CAP15625-ZE8-000
Required: 1
GASKET, OIL FILLER CAP
N
$4.30
You save $0.76
011
Honda
EXTEN, OIL FILLER15631-ZG3-000
Required: 1
EXTENSION, OIL FILLER
N
$38.01
You save $6.71
012
Honda
PLATE, EXTENSION15634-ZG3-000
Required: 1
PLATE, EXTENSION
N
$13.80
You save $2.44
013
Honda
GASKET15635-ZG3-800
Required: 2
GASKET, EXTENSION OIL FILLER (NON-ASBESTOS)
N
$1.92
You save $0.34
018
Honda
BOLT-WASHER (11X115)90005-ZG3-003
Required: 4
BOLT-WASHER (11X115)
N
$8.45
You save $1.49
019
Honda
BOLT (10X103.5)90020-ZG3-003
Required: 4
BOLT, STUD (10X103.5)
N
$11.30
You save $2.00
020
Honda
PIN, DOWEL (13X20)90715-PC6-000
Required: 3
PIN, DOWEL (13X20)
N
$6.39
You save $1.13
023
Honda
SET-RING (80)91003-ZG4-000
Required: 1
SET-RING (80)
N
$9.72
You save $1.72
025
Honda
OIL SEAL (8X14X5)91201-ZE9-003
Required: 1
OIL SEAL (8X14X5)
N
$4.34
You save $0.76
026
Honda
OIL SEAL (37X64X10)91201-ZG4-003
Required: 1
OIL SEAL (37X64X10)
N
$13.99
You save $2.47
027
Honda
OIL SEAL (31X80X10)91202-ZG4-003
Required: 1
OIL SEAL (31X80X10)
N
$16.12
You save $2.84
028
Honda
PLUG, SEALING (47MM)91204-ZG3-003
Required: 2
PLUG, SEALING (47MM)
N
$9.44
You save $1.67
029
Honda
O-RING (9.8X1.9)91305-PE2-003
Required: 1
O-RING (9.8X1.9)
N
$2.74
You save $0.48
032
Honda
BOLT, DRAIN (14MM)92800-14000
Required: 1
BOLT, DRAIN PLUG (14MM)
N
$4.56
You save $0.80
034
Honda
WASHER, DRAIN (14MM)94109-14000
Required: 1
WASHER, DRAIN PLUG (14MM)
N
$0.66
You save $0.12
035
Honda
PIN, DOWEL (10X16)94301-10160
Required: 1
PIN, DOWEL (10X16)
N
$2.55
You save $0.45
036
Honda
CIRCLIP (12MM)94520-12000
Required: 1
CIRCLIP (INNER) (12MM)
N
$0.82
You save $0.14
039
Honda
BOLT, FLANGE (6X16)95701-06016-00
Required: 2
BOLT, FLANGE (6X16)
N
$1.68
You save $0.30
040
Honda
BOLT, FLANGE (6X22)95701-06022-00
Required: 2
BOLT, FLANGE (6X22)
N
$1.87
You save $0.33
042
Honda
BOLT, FLANGE (8X40)95701-08040-00
Required: 6
BOLT, FLANGE (8X40)
N
In stock
5+ in stock
$1.34
You save $0.24
-50%
043
Honda
BOLT, FLANGE (8X50)95701-08050-00
Required: 1
BOLT, FLANGE (8X50)
N
In stock
Only 1 remaining
$1.50
You save $1.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
