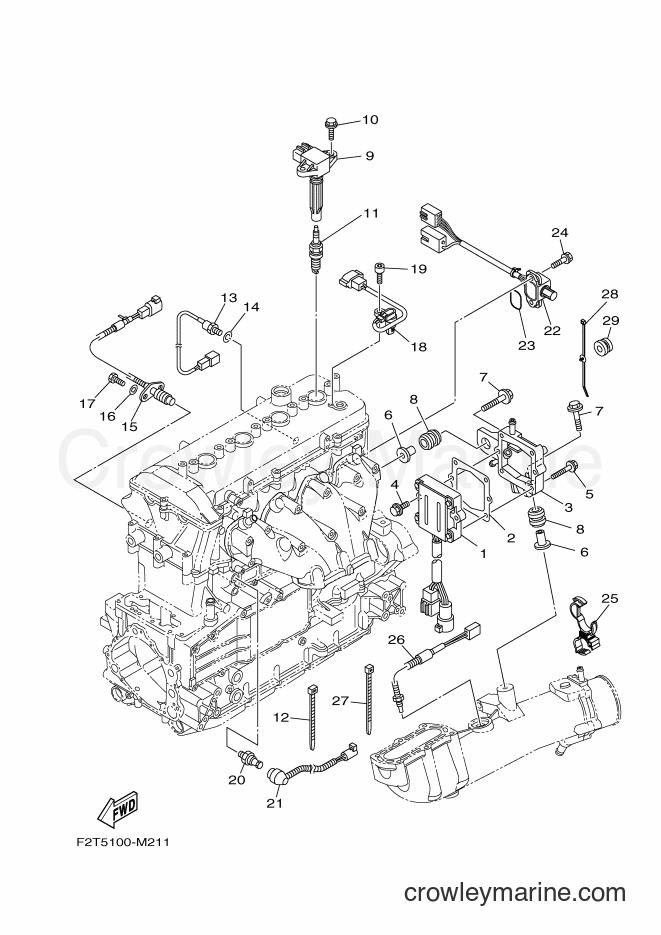

2016 WaveRunner FB1800A-R - FB1800A-R (F2TJ) [010] ELECTRICAL 2 diagram
![Yamaha Motors FB1800A-R (F2TJ) [010] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/a9qjpeVh.png)
1
Yamaha Motors
Rectifier and Regulator6S5-81960-11-00
Required: 1
RECTIFIER & REGULATOR ASSY
Supersedes: 6S5-81960-10-00
$347.22
You save $61.27
2
Yamaha Motors
Rectifier Fitting Plate6S5-81975-00-00
Required: 1
PLATE, RECTIFIER FITTING
$10.19
You save $1.80
3
Yamaha Motors
RECTIFIER COVER6S5-81972-01-94
Required: 1
COVER, RECTIFIER
$127.49
You save $22.50
4
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
5
Yamaha Motors
Bolt with Washer90119-06048-00
Required: 4
BOLT, WITH WASHER
$2.12
You save $0.37
In stock
Only 2 remaining
$9.69
You save $1.71
7
Yamaha Motors
Bolt with Washer90119-08187-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-08M22-00
$2.97
You save $0.52
In stock
5+ in stock
$11.69
You save $2.06
9
Yamaha Motors
Ignition Coil Assembly6S5-82310-02-00
Required: 4
IGNITION COIL ASSY
Supersedes: 6S5-82310-00-00
$343.39
You save $60.60
In stock
Only 3 remaining
$8.92
You save $1.57
11
Yamaha Motors
NGK LFR6A-00 SPARK PLUGLFR-6A000-00-00
Required: 4
PLUG, SPARK (NGK LFR6A)
Supersedes: 94702-00427-00
In stock
5+ in stock
$9.34
You save $1.65
In stock
Only 5 remaining
$1.57
You save $0.28
13
Yamaha Motors
THERMOSENSOR ASSY61A-85790-01-00
Required: 1
THERMOSENSOR ASSY
Supersedes: 61A-85790-00-00
In stock
Only 3 remaining
$122.48
You save $21.62
14
Yamaha Motors
Plate Washer92990-10600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.55
You save $0.45
15
Yamaha Motors
Thermo Switch Assembly6CR-82560-00-00
Required: 1
THERMO SWITCH ASSY
$82.44
You save $14.55
$2.35
You save $0.41
17
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
18
Yamaha Motors
Cam Position Sensor60E-85896-02-00
Required: 1
SENSOR, CAM POSITION
Supersedes: 60E-85896-01-00
$136.84
You save $24.15
$6.37
You save $1.12
20
Yamaha Motors
Oil Pressure Switch Assembly68V-82504-00-00
Required: 1
OIL PRESSURE SWITCH ASSY
In stock
Only 1 remaining
$72.17
You save $12.73
21
Yamaha Motors
Lead Wire ASSEMBLY6S5-81315-01-00
Required: 1
LEAD WIRE ASSY
Supersedes: 6S5-81315-00-00
$44.19
You save $7.80
22
Yamaha Motors
Earth Plate Component6CS-8273J-10-00
Required: 1
EARTH PLATE COMP.
$155.54
You save $27.45
In stock
Only 2 remaining
$7.22
You save $1.27
24
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
$3.40
You save $0.60
26
Yamaha Motors
Thermosensor Assembly6AA-85790-00-00
Required: 1
THERMOSENSOR ASSY
$116.02
You save $20.47
27
Yamaha Motors
Clamp90464-20005-00
Required: 1
CLAMP
Supersedes: 90464-31001-00
$2.12
You save $0.37
$4.10
You save $0.72
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
