All diagrams for this model

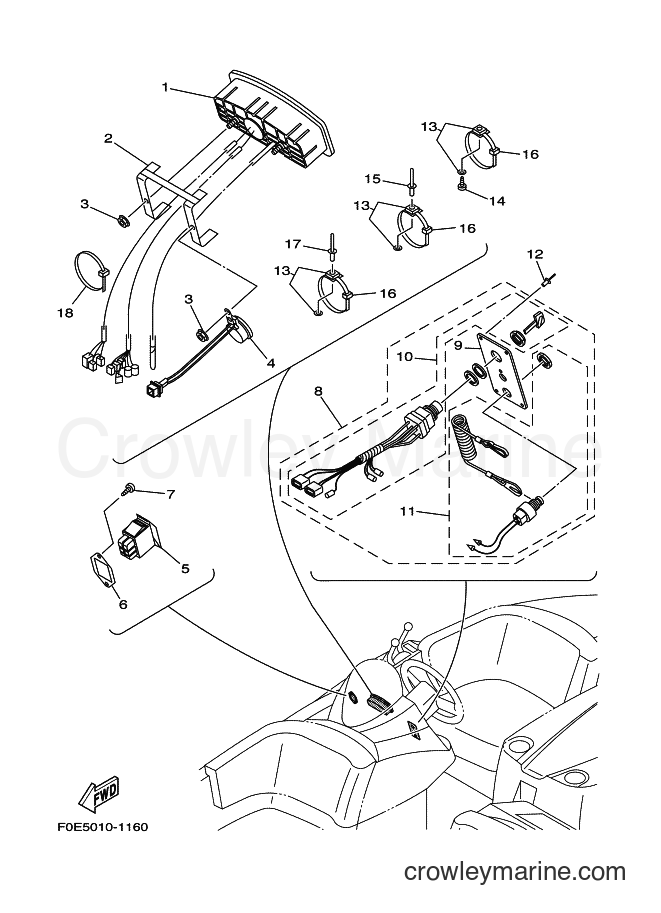

2000 WaveRunner Components JET FOR 1430TR - JET FOR 1430TR (66U1) [01B] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors JET FOR 1430TR (66U1) [01B] - ELECTRICAL 2
Change View:
1
Required: 1
METER ASSY
Price unavailable
METER BRACKET
2
Yamaha Motors
METER BRACKETGP7-68238-10-00
Required: 1
BRACKET, METER
Cross Ship
Leaves in 2-5 days
$56.99
$48.44
You save $8.55
More details
4
Required: 1
BUZZER
Price unavailable
5
Required: 1
SWITCH, PUSH
Price unavailable
6
Required: 1
PANEL
Price unavailable
SPECIAL SHAPE SCREW
7
Yamaha Motors
SPECIAL SHAPE SCREW90149-03981-00
Required: 2
SCREW
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
8
Required: 1
SWITCH PANEL ASSY 1
Price unavailable
Switch Panel
9
Yamaha Motors
Switch Panel689-82571-02-00
Required: 1
. PANEL, SWITCH
Cross Ship
Leaves in 2-5 days
$34.15
$29.03
You save $5.12
More details
10
Required: 1
. KEY,SWITCH ASSY
Price unavailable
12
Required: 4
RIVET, BLIND
Price unavailable
Clamp
13
Yamaha Motors
Clamp90600-91736-00
Required: 15
CLAMP COMP.
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Tapping Screw
14
Yamaha Motors
Tapping Screw97780-40112-00
Required: 10
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.20
$3.36
You save $0.84
More details
BLIND RIVET
15
Yamaha Motors
BLIND RIVET90267-48946-00
Required: 4
RIVET, BLIND
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
Band
16
Yamaha Motors
Band90601-20009-00
Required: 15
BAND
Supersedes: 90601-20006-00
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
BLIND RIVET
17
Yamaha Motors
BLIND RIVET90267-48932-00
Required: 1
RIVET, BLIND
Cross Ship
Leaves in 2-5 days
$1.99
$1.69
You save $0.30
More details
18
Required: 2
BAND
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
