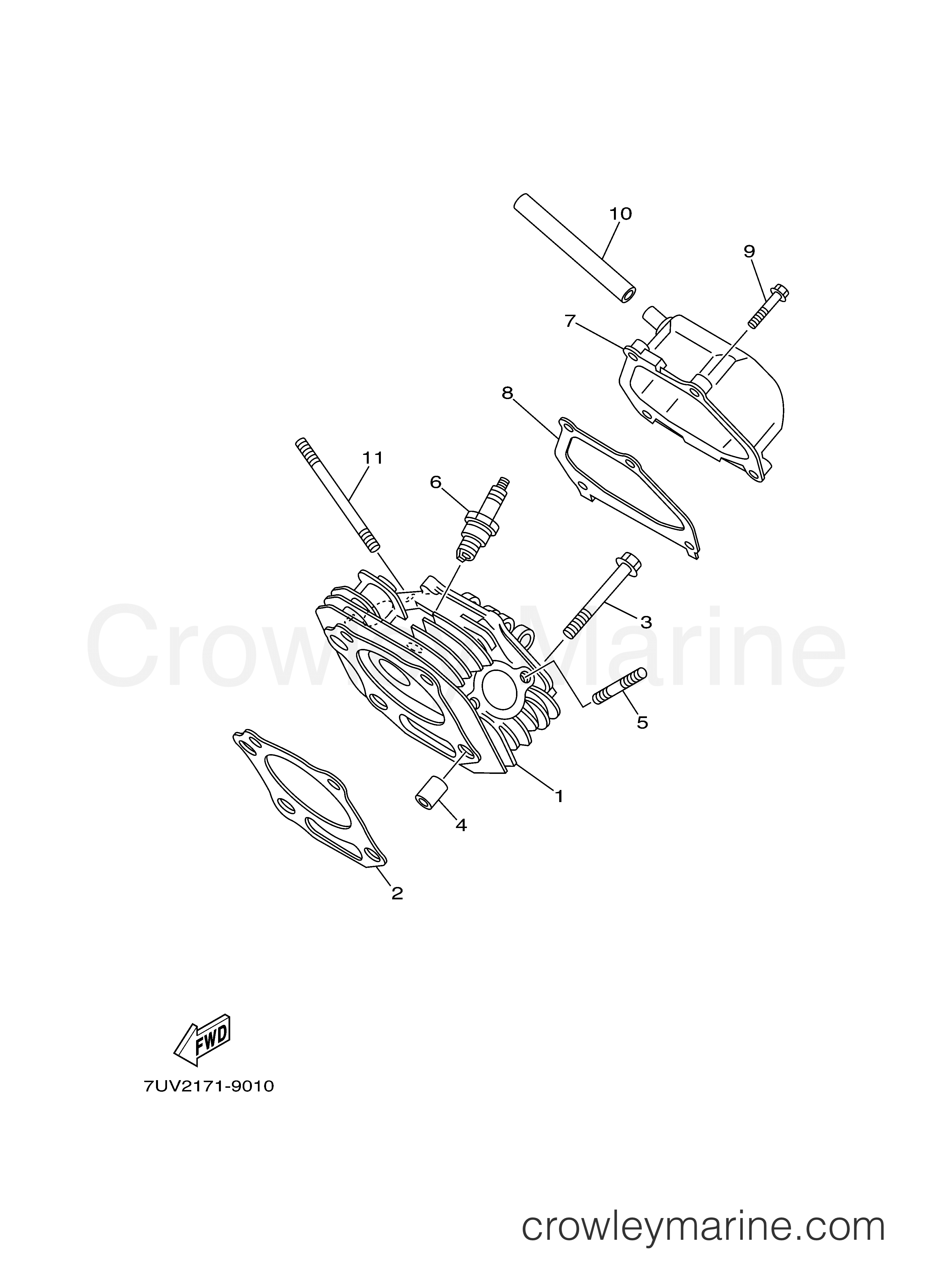

2011 UTV 360 - MZ360A2K CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors MZ360A2K - CYLINDER
Change View:
Cylinder Head
1
Yamaha Motors
Cylinder Head7CT-E1111-00-00
Required: 1
HEAD, CYLINDER 1
Cross Ship
Leaves in 2-5 days
$353.99
$300.89
You save $53.10
More details
Flange Bolt
3
Yamaha Motors
Flange Bolt 95811-10070-00
Required: 4
BOLT, FLANGE
Supersedes: 95812-10070-00
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Bolt Stud (95627-08618-00)
5
Yamaha Motors
Bolt Stud (95627-08618-00)95617-08618-00
Required: 2
BOLT, STUD
Supersedes: 95622-08618-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Cylinder Head Cover
7
Yamaha Motors
Cylinder Head Cover7CT-E1190-00-00
Required: 1
COVER, CYLINDER HEAD 1
Cross Ship
Leaves in 2-5 days
$80.99
$68.84
You save $12.15
More details
Head Cover Gasket
8
Yamaha Motors
Head Cover Gasket7CT-E1193-00-00
Required: 1
GASKET, HEAD COVER 1
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
Flange Bolt
9
Yamaha Motors
Flange Bolt95822-06030-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.70
$1.44
You save $0.26
More details
Breather Pipe
10
Yamaha Motors
Breather Pipe7CT-E1166-00-00
Required: 1
PIPE, BREATHER 1
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details
Stud Bolt
11
Yamaha Motors
Stud Bolt95602-08700-00
Required: 2
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
