2004 UTV 175 - MZ175AAIA6 TCI MAGNETO diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

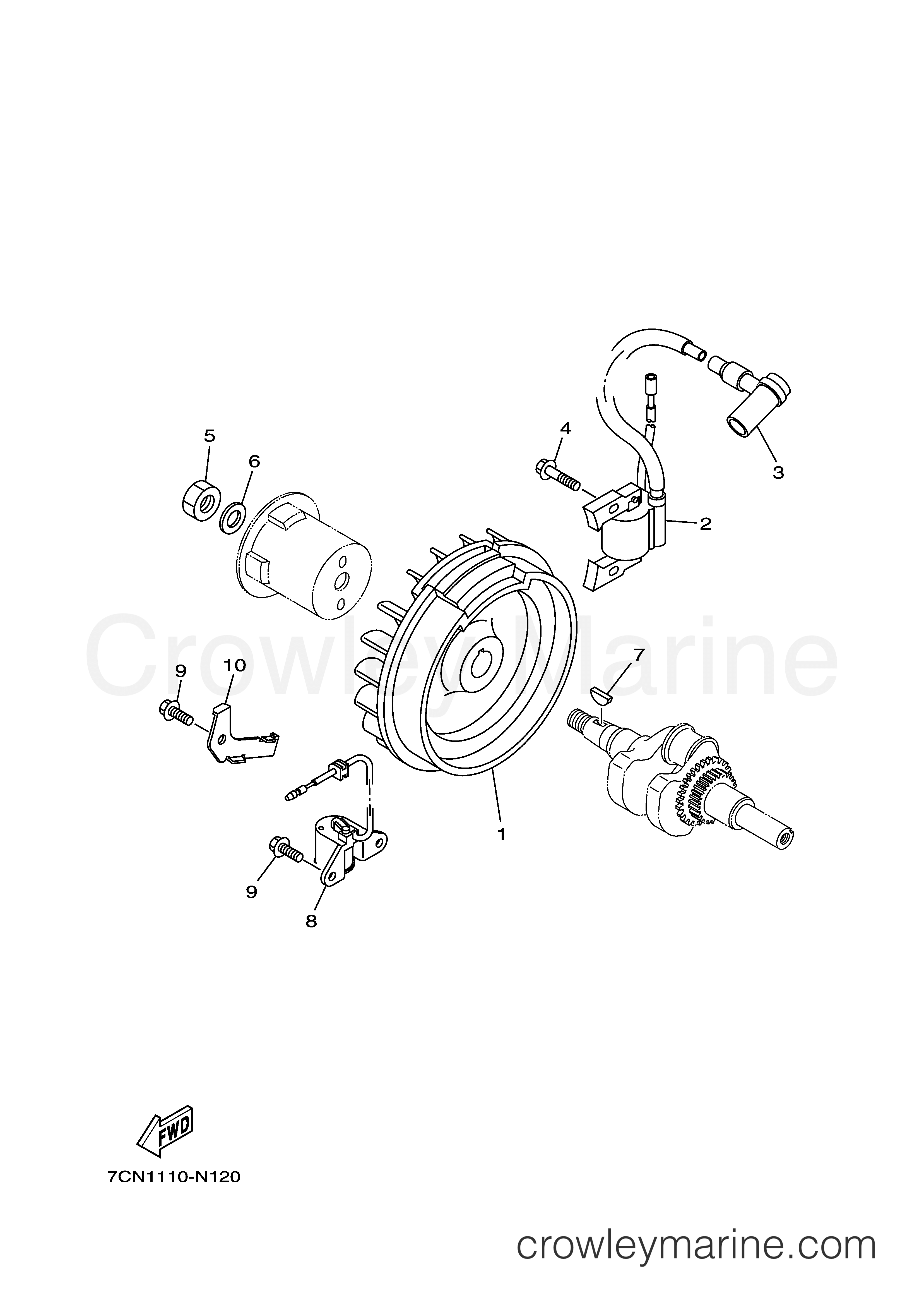

Yamaha Motors MZ175AAIA6 - TCI MAGNETO
Change View:
Rotor Assembly
1
Yamaha Motors
Rotor Assembly7CN-H5650-00-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$243.99
$207.39
You save $36.60
More details
T.C.I. UNIT ASSY
2
Yamaha Motors
T.C.I. UNIT ASSY7CN-H5640-02-00
Required: 1
T.C.I. UNIT ASSY
Supersedes: 7CN-H5640-01-00
Cross Ship
Leaves in 2-5 days
$105.99
$90.09
You save $15.90
More details
Plug Cap Assembly
3
Yamaha Motors
Plug Cap AssemblyJN6-82370-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 7CN-H2370-00-00
Cross Ship
Leaves in 2-5 days
$16.99
$14.44
You save $2.55
More details
Nut
5
Yamaha Motors
Nut90170-14800-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
Woodruff Key
7
Yamaha Motors
Woodruff Key90280-04052-00
Required: 1
KEY, WOODRUFF
Supersedes: 90280-04801-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
OIL LEVEL GAUGE ASSY
8
Yamaha Motors
OIL LEVEL GAUGE ASSY7CN-H5720-11-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 7CN-H5720-00-00
Cross Ship
Leaves in 2-5 days
$101.99
$86.69
You save $15.30
More details
Clamp
10
Yamaha Motors
Clamp7CN-H5724-00-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$3.45
$2.93
You save $0.52
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
