1992 Stern Drive V8 - V8_7.4_INTERMEDIATE CONTROL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

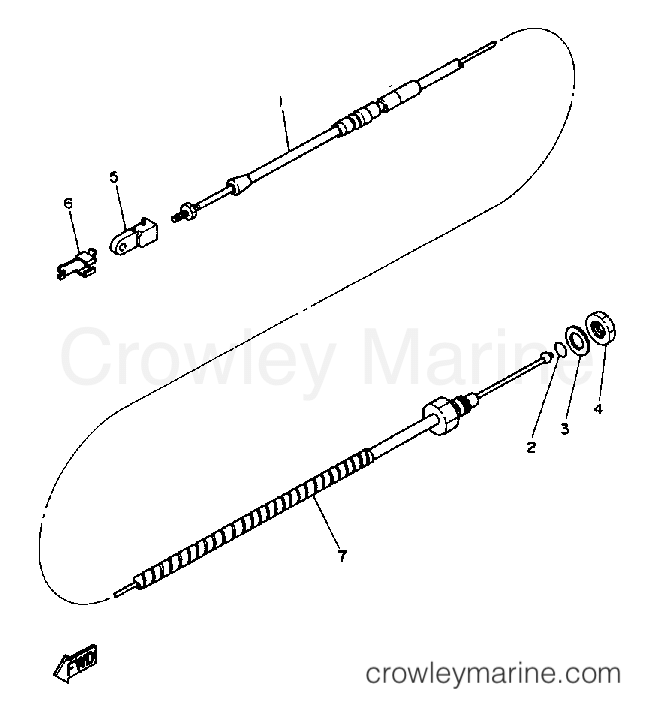

Yamaha Motors V8_7.4_INTERMEDIATE - CONTROL

Change View:

Yamaha Motors

Obsolete Yamaha Part6U0-48311-01-00

Required: 1

CABLE

Supersedes: 6U0-48311-00-00

~~$171.99~~

$146.19

You save $25.80

O-RING

Supersedes: 93210-10166-00

~~$8.49~~

$7.22

You save $1.27

More details

Yamaha Motors

Plate Washer90201-13M05-00

Required: 1

WASHER, PLATE

~~$11.49~~

$9.77

You save $1.72

More details

Yamaha Motors

Hexagon Nut90170-12M28-00

Required: 1

NUT, HEXAGON

~~$5.99~~

$5.09

You save $0.90

More details

Yamaha Motors

Cable End6G8-26363-00-00

Required: 1

.END, WIRE 1

In stock

Only 4 remaining

~~$9.45~~

$8.03

You save $1.42

More details

Yamaha Motors

Cable End6G8-26364-00-00

Required: 1

.END, CABLE

In stock

5+ in stock

~~$9.10~~

$7.73

You save $1.37

HOSE

~~$5.49~~

$4.67

You save $0.82

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
