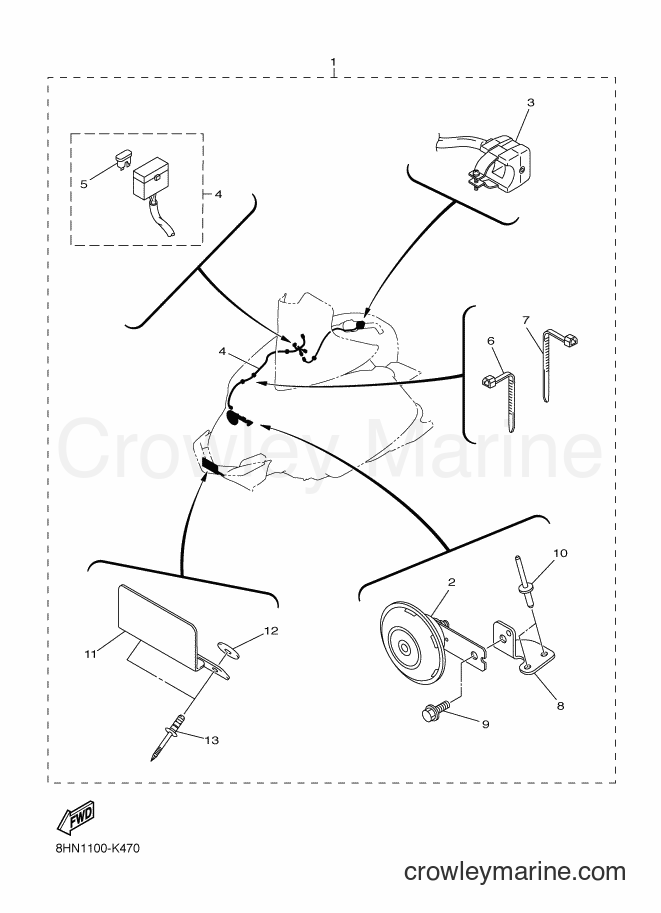

2016 Snowmobile RX10STL - RX10STL (8LB2) [010] ELECTRICAL 4 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RX10STL (8LB2) [010] - ELECTRICAL 4
Change View:
1
Required: 1
HORN KIT
Price unavailable
Horn
2
Yamaha Motors
Horn3MX-83371-11-00
Required: 1
. HORN
Cross Ship
Leaves in 2-5 days
$32.99
$28.04
You save $4.95
More details
3
Required: 1
. SWITCH, HANDLE 1
Price unavailable
4
Required: 1
. WIRE, SUB LEAD
Price unavailable
Fuse (12V/10A)
5
Yamaha Motors
Fuse (12V/10A)67F-82151-30-00
Required: 1
. FUSE (3A-BL)
Supersedes: 5JJ-82151-50-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Clamp
6
Yamaha Motors
Clamp90464-13077-00
Required: 3
. CLAMP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Clamp
7
Yamaha Motors
Clamp90464-15195-00
Required: 1
. CLAMP
Supersedes: 90464-13073-00
Cross Ship
Leaves in 2-5 days
$4.41
$3.75
You save $0.66
More details
8
Required: 1
. STAY, HORN
Price unavailable
95811-06010-00
9
Yamaha Motors
95811-06010-0095821-06010-00
Required: 1
. BOLT, FLANGE
Supersedes: 95822-06010-00
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
Blind Rivet
10
Yamaha Motors
Blind Rivet90267-48177-00
Required: 2
. RIVET, BLIND (4.8X14 YELLOW)
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
11
Required: 1
. BRACKET, REFLECTOR
Price unavailable
Plate Washer
12
Yamaha Motors
Plate Washer90201-061A5-00
Required: 2
. WASHER, PLATE
Supersedes: 90201-05036-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Blind Rivet
13
Yamaha Motors
Blind Rivet90267-47186-00
Required: 2
. RIVET, BLIND (4.7X16.4 BLACK)
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
