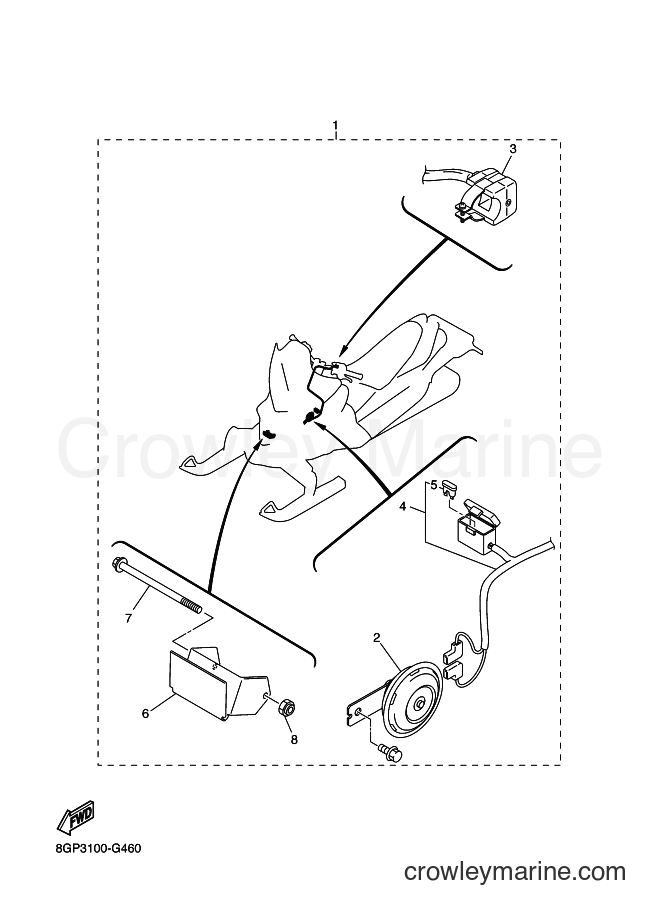

2012 Snowmobile RPZ50S - RPZ50S (8GNB) [020] ELECTRICAL 4 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RPZ50S (8GNB) [020] - ELECTRICAL 4
Change View:
1
Required: 1
HORN KIT
Price unavailable
Horn
2
Yamaha Motors
Horn3MX-83371-11-00
Required: 1
. HORN
Cross Ship
Leaves in 2-5 days
$32.99
$28.04
You save $4.95
More details
3
Required: 1
. SWITCH, HANDLE 1
Price unavailable
4
Required: 1
. WIRE, SUB LEAD
Price unavailable
Fuse (12V/10A)
5
Yamaha Motors
Fuse (12V/10A)67F-82151-30-00
Required: 1
. FUSE (3A-BL)
Supersedes: 5JJ-82151-50-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
6
Required: 1
. BRACKET, REFLECTOR
Price unavailable
Flange Bolt
7
Yamaha Motors
Flange Bolt95817-06090-00
Required: 1
. BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
Flange Nut
8
Yamaha Motors
Flange Nut95707-06300-00
Required: 1
. NUT, NYLON
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
