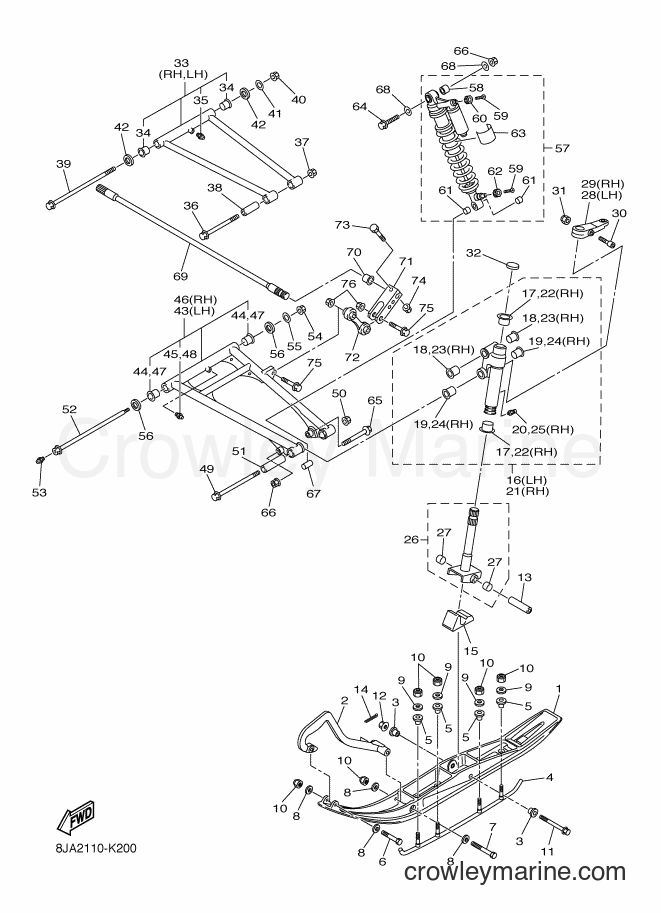

2011 Snowmobile RS10GT - RS10GT (8JA2) [020] SKI diagram

1
Yamaha Motors
Ski8ES-23711-00-BK
Required: 2
SKI 1
Supersedes: 8ES-F3711-00-00
$118.14
You save $20.85

2
Yamaha Motors
BLUE 8DM HANDLE PLAS8DM-23712-00-BU
Required: 2
REINFORCEMENT, HEAD
Supersedes: 8EK-F3712-00-00
$22.06
You save $3.89

3
Yamaha Motors
COLLAR 18EX-23754-00-00
Required: 4
COLLAR, 1
Supersedes: 8EX-F3754-00-00
$16.99
You save $3.00
$47.71
You save $8.28
$6.79
You save $1.20
$2.42
You save $0.43

7
Yamaha Motors
BOLT97027-08100-00
Required: 2
BOLT
Supersedes: 9702M-08100-00
$5.52
You save $0.97

8
Yamaha Motors
Plate Washer90201-08784-00
Required: 8
WASHER, PLATE
$2.98
You save $0.52

9
Yamaha Motors
Plain Washer90201-086P8-00
Required: 8
WASHER, PLATE
$4.67
You save $0.82

10
Yamaha Motors
LOCK NUT95717-08300-00
Required: 12
NUT, NYLON
Supersedes: 9570M-08300-00
$2.59
You save $0.46
$11.47
You save $2.02
In stock
5+ in stock
$3.53
You save $0.62
$23.79
You save $4.20
$1.69
You save $0.30
$27.19
You save $4.80

16
Yamaha Motors
STEERING KNUCKLE ASSEMBLY8ES-23501-00-00
Required: 1
STEERING KNUCKLE ASSY (LEFT)
$239.69
You save $42.30
$8.92
You save $1.57
$7.22
You save $1.27
$10.62
You save $1.87

20
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
. NIPPLE, GREASE
Supersedes: 93700-06004-00
In stock
5+ in stock
$6.60
You save $1.65

21
Yamaha Motors
STEERING KNUCKLE ASSEMBLY8ES-23502-00-00
Required: 1
STEERING KNUCKLE ASSY (RIGHT)
$328.09
You save $57.90
$8.92
You save $1.57
$7.22
You save $1.27
$10.62
You save $1.87

25
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
. NIPPLE, GREASE
Supersedes: 93700-06004-00
In stock
5+ in stock
$6.60
You save $1.65

26
Yamaha Motors
SKI ASSEMBLY COLUMN8ES-23803-00-00
Required: 2
COLUMN, SKI ASSY
$186.99
You save $33.00
27
Yamaha Motors
Bimetal Formed Bushing90384-16N51-00
Required: 2
. BUSH, BIMETAL FORMED
$4.67
You save $0.82

28
Yamaha Motors
Outside Arm8FA-23851-00-00
Required: 1
ARM, OUTSIDE 1
$110.49
You save $19.50

29
Yamaha Motors
Outside Arm8FA-23852-00-00
Required: 1
ARM, OUTSIDE 2
$108.79
You save $19.20

30
Yamaha Motors
Hexagon Socket Bolt90110-08104-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$2.21
You save $0.39

31
Yamaha Motors
Self-locking Nut95602-08200-00
Required: 2
NUT, SELF-LOCKING
$2.72
You save $0.48
$6.37
You save $1.12
-50%

33
Yamaha Motors
Front Upper Arm Comp8JA-23540-00-00
Required: 2
FRONT UPPER ARM COMP.
In stock
Only 1 remaining
$119.50
You save $119.50
$7.22
You save $1.27

35
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
. NIPPLE, GREASE
Supersedes: 93700-06004-00
In stock
5+ in stock
$6.60
You save $1.65
$8.07
You save $1.42
$2.29
You save $0.41

38
Yamaha Motors
COLLAR90387-10099-00
Required: 2
COLLAR
Supersedes: 90387-10N58-00
$19.54
You save $3.45
$45.89
You save $8.10
$2.29
You save $0.41

41
Yamaha Motors
Plain Washer90201-10052-00
Required: 2
WASHER, PLATE
$8.07
You save $1.42
$2.21
You save $0.39

43
Yamaha Motors
FRONT LOWER ARM COMP8JA-23570-00-00
Required: 1
FRONT LOWER ARM COMP. (LEFT)
$265.19
You save $46.80
$9.77
You save $1.72

45
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
. NIPPLE, GREASE
Supersedes: 93700-06004-00
In stock
5+ in stock
$6.60
You save $1.65

46
Yamaha Motors
FRONT LOWER ARM COMP8JA-23580-00-00
Required: 1
FRONT LOWER ARM COMP. (RIGHT)
$324.69
You save $57.30
$9.77
You save $1.72

48
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
. NIPPLE, GREASE
Supersedes: 93700-06004-00
In stock
5+ in stock
$6.60
You save $1.65
$16.57
You save $2.92

50
Yamaha Motors
SELF-LOCKING NUT95602-12200-00
Required: 2
NUT, SELF-LOCKING
$4.67
You save $0.82
-50%
In stock
Only 1 remaining
$10.49
You save $10.49
$79.04
You save $13.95

53
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 2
NIPPLE, GREASE
Supersedes: 93700-06004-00
In stock
5+ in stock
$6.60
You save $1.65
$2.29
You save $0.41

55
Yamaha Motors
Plain Washer90201-10052-00
Required: 2
WASHER, PLATE
$8.07
You save $1.42
$2.21
You save $0.39

57
Yamaha Motors
ABSORBER ASSEMBLY8GD-2376A-00-00
Required: 2
ABSORBER ASSY 1
$734.39
You save $129.60

58
Yamaha Motors
Bush Damper8FA-2331R-00-00
Required: 1
. DAMPER, BUSH B
$10.19
You save $1.80

59
Yamaha Motors
Oval Head Screw98680-03008-00
Required: 2
. SCREW, COUNTERSUNK
Supersedes: 90142-03N01-00
$0.42
You save $0.08

60
Yamaha Motors
Knob (Comp)5EA-22464-00-00
Required: 1
. KNOB (COMP)
$3.91
You save $0.69

61
Yamaha Motors
Bimetal Formed Bushing90384-15N51-00
Required: 2
. BUSH, BIMETAL FORMED
$8.07
You save $1.42

62
Yamaha Motors
Cap5JW-2319W-00-00
Required: 1
. KNOB (TEN)
$10.19
You save $1.80

63
Yamaha Motors
Label (Warning)4AA-22259-60-00
Required: 1
. LABEL, WARNING
Supersedes: 4AA-22259-70-00
$6.37
You save $1.12

64
Yamaha Motors
Washer Based Bolt90105-10169-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-10232-00
$10.62
You save $1.87
$8.07
You save $1.42
$2.29
You save $0.41
$15.72
You save $2.77

68
Yamaha Motors
Plain Washer90201-10052-00
Required: 4
WASHER, PLATE
$8.07
You save $1.42

69
Yamaha Motors
Front Bar Stabilizer8FG-2386E-00-00
Required: 1
BAR, STABILIZER FRONT
$118.99
You save $21.00
70
Yamaha Motors
FRONT STABILIZER BUSH8FG-2386G-00-00
Required: 2
BUSH, STABILIZER FRONT
$4.67
You save $0.82

71
Yamaha Motors
Stabilizer Arm8FG-2386L-00-00
Required: 2
ARM, STABILIZER
$60.34
You save $10.65

72
Yamaha Motors
STABILIZER JOINT 18ES-2385L-00-00
Required: 2
JOINT, STABILIZER 1
$101.99
You save $18.00
$7.22
You save $1.27

74
Yamaha Motors
U Flange Nut95604-06200-00
Required: 2
NUT, U FLANGE
$2.89
You save $0.06
$8.07
You save $1.42

76
Yamaha Motors
U Flange Nut95604-08200-00
Required: 4
NUT, U FLANGE
$2.40
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
