2007 Snowmobile RT50 - RT50 (8GC1) [020] FRAME diagram

1
Yamaha Motors
Front Frame Comp8GK-21940-01-00
Required: 1
FRONT FRAME COMP.
Supersedes: 8GK-21940-00-00
$985.99
You save $174.00
$7.22
You save $1.27
$21.24
You save $3.75
$5.94
You save $1.05

5
Yamaha Motors
Button head bolt92017-05040-00
Required: 1
BOLT, BUTTON HEAD
$2.08
You save $0.37
$0.81
You save $0.14

7
Yamaha Motors
Sub Frame Panel8GC-21912-01-00
Required: 1
PANEL, SUB FRAME 1
Supersedes: 8GC-21912-00-00
$38.24
You save $6.75
$4.17
You save $0.74
$8.07
You save $1.42

10
Yamaha Motors
FRAME PROTECTOR8GC-2195A-00-00
Required: 1
PROTECTOR, FRAME A
$24.64
You save $4.35
$2.25
You save $0.40

12
Yamaha Motors
REAR FRAME COMP.8GC-21950-01-00
Required: 1
REAR FRAME COMP.
Supersedes: 8GC-21950-00-00
$4192.19
You save $739.80

13
Yamaha Motors
FRAME PANEL REINFORCEMENT8GC-21991-00-00
Required: 1
. REINF., PANELL FRAME 1
$417.34
You save $73.65

14
Yamaha Motors
Reinforcement Sub Housing Assembly8GC-21930-00-00
Required: 1
. HOUSING, REINF SUB-ASSY(R.H)
$968.14
You save $170.85

15
Yamaha Motors
BEARING93306-20532-00
Required: 1
. . BEARING
Supersedes: 93306-20511-00
$62.04
You save $10.95
In stock
Only 1 remaining
$11.47
You save $2.02
$13.17
You save $2.32

18
Yamaha Motors
Blind Rivet90267-47195-00
Required: 94
. RIVET, BLIND
$3.57
You save $0.63

19
Yamaha Motors
MAIN TRACK BRACKET8GC-21943-00-00
Required: 1
. BRACKET, MAIN TRACK 1
$65.44
You save $11.55

20
Yamaha Motors
MAIN TRACK BRACKET8GC-21953-00-00
Required: 1
. BRACKET, MAIN TRACK 2
$65.44
You save $11.55

21
Yamaha Motors
Flange Bolt95022-08020-00
Required: 10
. BOLT, FLANGE
$8.07
You save $1.42

22
Yamaha Motors
95811-08012-0095812-08012-00
Required: 2
. BOLT, FLANGE
Supersedes: 95822-08012-00
$1.32
You save $0.23

23
Yamaha Motors
Heat Exchanger Assembly8GC-12440-00-00
Required: 1
. HEAT EXCHANGER ASSY
$968.14
You save $170.85

24
Yamaha Motors
Flange Bolt95822-08020-00
Required: 6
. BOLT, FLANGE
$0.26
You save $0.05

25
Yamaha Motors
Flange Bolt90105-06109-00
Required: 2
. BOLT
Supersedes: 90109-065G4-00
$8.92
You save $1.57
26
Required: 1
. REINFORCEMENT, FOOTREST 1
Price unavailable
27
Required: 1
. REINFORCEMENT, FOOTREST 2
Price unavailable

28
Yamaha Motors
RR TRACK SUSPENSION BRACKET8GC-21944-00-00
Required: 1
. BRACKET, RR.TRACK SUSPENTION 1
$130.04
You save $22.95

29
Yamaha Motors
Flange Bolt95822-08014-00
Required: 4
. BOLT, FLANGE
$8.07
You save $1.42

30
Yamaha Motors
Blind Rivet90267-47195-00
Required: 13
. RIVET, BLIND
$3.57
You save $0.63

31
Yamaha Motors
RR TRACK SUSPENSION BRACKET8GC-21954-00-00
Required: 1
. BRACKET, RR.TRACK SUSPENTION 2
$130.04
You save $22.95
$5.52
You save $0.97
$7.22
You save $1.27

34
Yamaha Motors
Blind Rivet90267-47195-00
Required: 2
. RIVET, BLIND
$3.57
You save $0.63

35
Yamaha Motors
SPRING PLATE2TK-2177L-00-00
Required: 1
. PLATE, SPRING
$5.52
You save $0.97

36
Yamaha Motors
Blind Rivet90267-32192-00
Required: 2
. RIVET, BLIND
$1.66
You save $0.29

37
Yamaha Motors
FOOTREST BRACKET 18GC-27452-00-00
Required: 1
. BRACKET, FOOTREST 1
$28.89
You save $5.10

38
Yamaha Motors
FOOTREST BRACKET8GC-27462-00-00
Required: 1
. BRACKET, FOOTREST 2
$28.89
You save $5.10
$22.09
You save $3.90
$22.09
You save $3.90

41
Yamaha Motors
Blind Rivet90267-47195-00
Required: 16
. RIVET, BLIND
$3.57
You save $0.63

42
Yamaha Motors
Seat Bracket8GC-21341-00-00
Required: 1
. BRACKET, SEAT 1
$77.34
You save $13.65

43
Yamaha Motors
Blind Rivet90267-47195-00
Required: 24
. RIVET, BLIND
$3.57
You save $0.63
44
Required: 1
. REINFORCEMENT, RR. FOOTREST 1
Price unavailable
45
Required: 1
. REINFORCEMENT, RR. FOOTREST 2
Price unavailable
$9.34
You save $1.65
$13.17
You save $2.32
$11.04
You save $1.95
$39.94
You save $7.05
$39.94
You save $7.05
$3.27
You save $0.58

52
Yamaha Motors
Blind Rivet90267-48010-00
Required: 8
. RIVET, BLIND
$2.29
You save $0.41
$14.87
You save $2.62
54
Yamaha Motors
Spring Nut (4ES)90183-06069-00
Required: 2
NUT, SPRING
Supersedes: 90183-06053-00
In stock
Only 2 remaining
$6.37
You save $1.12

55
Yamaha Motors
Bolt (4MY)91317-06012-00
Required: 2
BOLT
Supersedes: 91312-06012-00
$8.07
You save $1.42
$453.89
You save $80.10

57
Yamaha Motors
Muffler Damper8GC-14747-00-00
Required: 2
DAMPER, MUFFLER
$19.54
You save $3.45

58
Yamaha Motors
Damper Bracket8GC-21121-00-00
Required: 2
BRACKET, DAMPER
$8.49
You save $1.50

59
Yamaha Motors
95811-06010-0095821-06010-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-06010-00
$1.49
You save $0.26
$50.99
You save $9.00

61
Yamaha Motors
SILENCER BRACKET8GC-1467H-00-00
Required: 1
BRACKET, SILENCER 1
$11.04
You save $1.95
$3.57
You save $0.63

63
Yamaha Motors
Thrust Cover8GC-22128-00-00
Required: 1
COVER, THRUST 1
$14.87
You save $2.62

64
Yamaha Motors
THRUST COVER 28GC-22129-00-00
Required: 1
COVER, THRUST 2
$9.34
You save $1.65
$23.79
You save $4.20

66
Yamaha Motors
Blind Rivet90267-48024-00
Required: 8
RIVET, BLIND
Supersedes: 90267-50010-00
$1.96
You save $0.35

67
Yamaha Motors
Flange Bolt (3HP)95817-10016-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-10016-00
$8.07
You save $1.42

68
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
$8.07
You save $1.42

69
Yamaha Motors
Sub Frame Panel8GC-21917-00-00
Required: 1
PANEL, SUB FRAME 6
$39.94
You save $7.05

70
Yamaha Motors
FOOTREST COMP. 18GJ-21960-00-00
Required: 1
FOOTREST COMP. 1
$205.69
You save $36.30

71
Yamaha Motors
Blind Rivet90267-48010-00
Required: 2
. RIVET, BLIND
$2.29
You save $0.41

72
Yamaha Motors
CLAMP 51Y90465-08277-00
Required: 3
. CLAMP
Supersedes: 90465-08368-00
$10.62
You save $1.87

73
Yamaha Motors
BLIND RIVET90267-48083-00
Required: 1
. RIVET, BLIND
$3.06
You save $0.54

74
Yamaha Motors
Washer Plate90201-043H7-00
Required: 2
. WASHER, PLATE
$3.19
You save $0.56
$6.37
You save $1.12

76
Yamaha Motors
95814-08016-0095821-08016-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-08016-00
$1.87
You save $0.33
$3.02
You save $0.53

78
Yamaha Motors
Flange Bolt95812-06014-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-06080-00
$5.52
You save $0.97

79
Yamaha Motors
FOOTREST COMP. 28GJ-21970-00-00
Required: 1
FOOTREST COMP. 2
$154.69
You save $27.30
$0.26
You save $0.05
$1.36
You save $0.24
$35.69
You save $6.30

83
Yamaha Motors
BOLT90109-06285-00
Required: 6
BOLT
Supersedes: 90109-066G1-00
$3.36
You save $0.59
$1.78
You save $0.32
$4.12
You save $0.73

86
Yamaha Motors
STEERING BRACKET PLATE8GC-2195E-00-00
Required: 1
PLATE, STRG BRACKET 1
$14.87
You save $2.62

87
Yamaha Motors
STEERING BRACKET PLATE8GC-2195F-00-00
Required: 1
PLATE, STRG BRACKET 2
$8.07
You save $1.42
$36.54
You save $6.45
$20.39
You save $3.60
$2.25
You save $0.40
$7.22
You save $1.27

92
Yamaha Motors
EPA OFFROAD PLATE8GC-2179D-00-00
Required: 1
PLETE, EPA OFFROAD 2
$4.12
You save $0.73
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

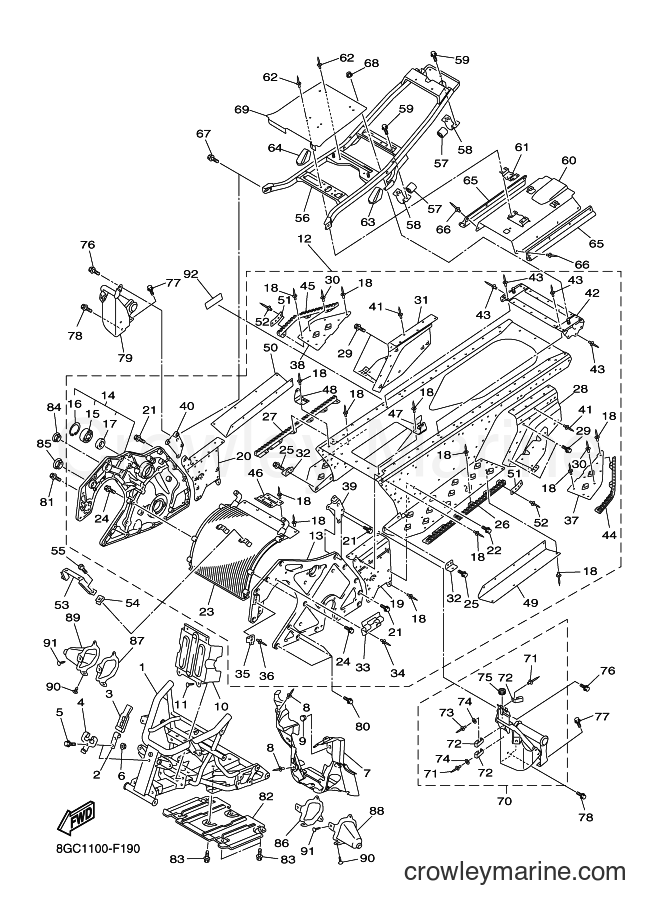

![Yamaha Motors RT50 (8GC1) [020] - FRAME](https://cdn.crowleymarine.com/yamaha/qXd48XNa.png)
