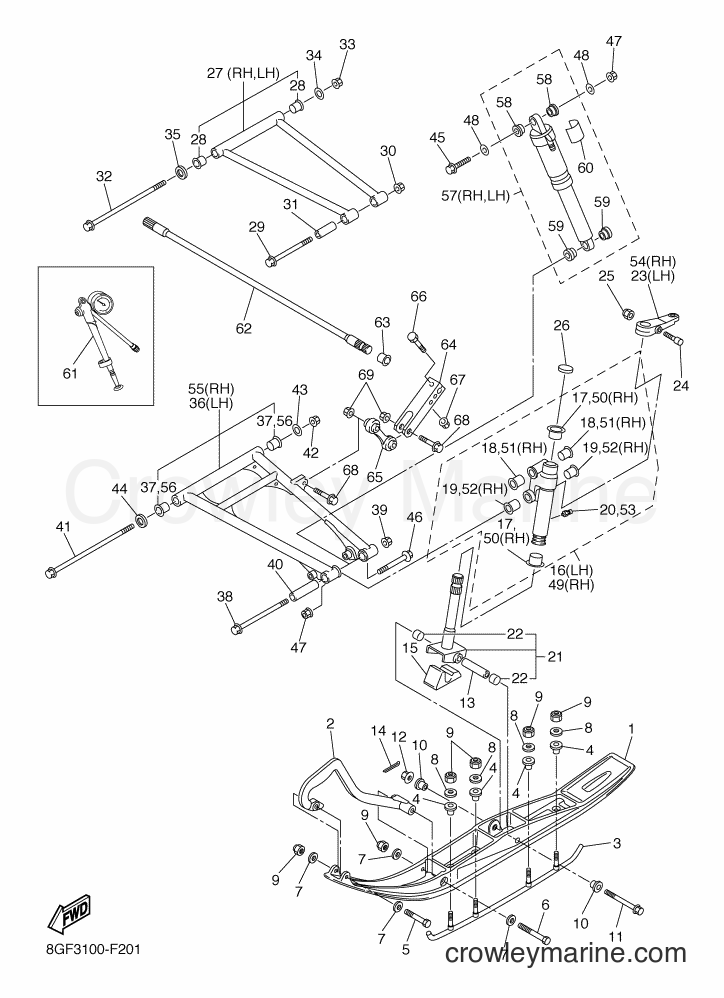

2007 Snowmobile RS10S - RS10S (8GF3) [020] SKI diagram

1
Yamaha Motors
Ski8ES-23711-00-BK
Required: 2
SKI 1
Supersedes: 8ES-F3711-00-00
$118.14
You save $20.85

2
Yamaha Motors
RED 8DM HANDLE PLAST8DM-23712-00-RD
Required: 2
REINFORCEMENT, HEAD
Supersedes: 8FB-F3712-00-00
$23.76
You save $4.19

3
Yamaha Motors
Ski Runner KitSMA-F3731-EK-00
Required: 2
RUNNER 1
Supersedes: 8EK-F3731-00-00
$67.11
You save $11.84
$6.79
You save $1.20
$2.42
You save $0.43

6
Yamaha Motors
BOLT97027-08100-00
Required: 2
BOLT
Supersedes: 9702M-08100-00
$5.52
You save $0.97

7
Yamaha Motors
Plate Washer90201-08784-00
Required: 8
WASHER, PLATE
$2.98
You save $0.52

8
Yamaha Motors
Plain Washer90201-086P8-00
Required: 8
WASHER, PLATE
$4.67
You save $0.82

9
Yamaha Motors
LOCK NUT95717-08300-00
Required: 12
NUT, NYLON
Supersedes: 9570M-08300-00
$2.59
You save $0.46

10
Yamaha Motors
COLLAR 18EX-23754-00-00
Required: 4
COLLAR, 1
Supersedes: 8EX-F3754-00-00
$16.99
You save $3.00
$11.47
You save $2.02
In stock
5+ in stock
$3.53
You save $0.62
$23.79
You save $4.20
$1.69
You save $0.30
$27.19
You save $4.80

16
Yamaha Motors
STEERING KNUCKLE ASSEMBLY8ES-23501-10-00
Required: 1
STEERING KNUCKLE ASSY (LEFT)
$234.59
You save $41.40
$8.92
You save $1.57
$7.22
You save $1.27
$10.62
You save $1.87

20
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
. NIPPLE, GREASE
Supersedes: 93700-06004-00
In stock
5+ in stock
$7.01
You save $1.24

21
Yamaha Motors
SKI ASSEMBLY COLUMN8ES-23803-00-00
Required: 2
COLUMN, SKI ASSY
$186.99
You save $33.00
22
Yamaha Motors
Bimetal Formed Bushing90384-16N51-00
Required: 2
. BUSH, BIMETAL FORMED
$4.67
You save $0.82

23
Yamaha Motors
Outside Arm8FA-23851-00-00
Required: 1
ARM, OUTSIDE 1
$110.49
You save $19.50

24
Yamaha Motors
Hexagon Socket Bolt90110-08N53-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$4.25
You save $0.75

25
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
$8.07
You save $1.42
$6.37
You save $1.12

27
Yamaha Motors
Front Upper Arm Comp8JA-23540-60-00
Required: 2
FRONT UPPER ARM COMP.
Supersedes: 8ES-23540-60-00
$137.69
You save $24.30
$7.22
You save $1.27
$8.07
You save $1.42
In stock
5+ in stock
$3.53
You save $0.62

31
Yamaha Motors
COLLAR90387-10099-00
Required: 2
COLLAR
Supersedes: 90387-10N58-00
$19.54
You save $3.45
$41.64
You save $7.35
In stock
5+ in stock
$3.53
You save $0.62

34
Yamaha Motors
Plain Washer90201-106F2-00
Required: 2
WASHER, PLATE
$9.77
You save $1.72
$2.21
You save $0.39

36
Yamaha Motors
FRONT LOWER ARM COMP8JA-23570-60-00
Required: 1
FRONT LOWER ARM COMP. (LEFT)
Supersedes: 8ES-23570-60-00
$237.99
You save $42.00
$9.77
You save $1.72
$16.57
You save $2.92
39
Yamaha Motors
FLANGE NUT95607-12200-00
Required: 2
NUT, SELF-LOCKING
$5.52
You save $0.97
In stock
Only 1 remaining
$17.84
You save $3.15
$51.84
You save $9.15
In stock
5+ in stock
$3.53
You save $0.62

43
Yamaha Motors
Plain Washer90201-106F2-00
Required: 2
WASHER, PLATE
$9.77
You save $1.72
$2.21
You save $0.39

45
Yamaha Motors
Washer Based Bolt90105-10169-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-10232-00
$10.62
You save $1.87
$10.62
You save $1.87
In stock
5+ in stock
$3.53
You save $0.62

48
Yamaha Motors
Plain Washer90201-106F2-00
Required: 4
WASHER, PLATE
$9.77
You save $1.72

49
Yamaha Motors
STEERING KNUCKLE ASSEMBLY8ES-23502-10-00
Required: 1
STEERING KNUCKLE ASSY (RIGHT)
$373.14
You save $65.85
$8.92
You save $1.57
$7.22
You save $1.27
$10.62
You save $1.87

53
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
. NIPPLE, GREASE
Supersedes: 93700-06004-00
In stock
5+ in stock
$7.01
You save $1.24

54
Yamaha Motors
Outside Arm8FA-23852-00-00
Required: 1
ARM, OUTSIDE 2
$108.79
You save $19.20

55
Yamaha Motors
FRONT LOWER ARM COMP8ES-23580-60-00
Required: 1
FRONT LOWER ARM COMP. (RIGHT)
$211.64
You save $37.35
$9.77
You save $1.72

57
Yamaha Motors
ABSORBER ASSEMBLY8GH-F376A-00-00
Required: 2
ABSORBER ASSY 1
$326.36
You save $57.59
$33.99
You save $6.00
$33.99
You save $6.00
60
Required: 1
. LABEL, WARNING
Price unavailable

61
Yamaha Motors
FOX AIR PUMP8FP-23703-FS-00
Required: 1
ADJUSTER
Supersedes: 8GT-F3703-00-00
$38.21
You save $6.74

62
Yamaha Motors
Front Bar Stabilizer8FG-2386E-00-00
Required: 1
BAR, STABILIZER FRONT
$118.99
You save $21.00
63
Yamaha Motors
FRONT STABILIZER BUSH8FG-2386G-00-00
Required: 2
BUSH, STABILIZER FRONT
$4.67
You save $0.82

64
Yamaha Motors
Stabilizer Arm8FG-2386L-00-00
Required: 2
ARM, STABILIZER
$60.34
You save $10.65

65
Yamaha Motors
STABILIZER JOINT 18ES-2385L-00-00
Required: 2
JOINT, STABILIZER 1
$101.99
You save $18.00

66
Yamaha Motors
Bolt90101-06278-00
Required: 2
BOLT
Supersedes: 90101-06765-00
$2.21
You save $0.39

67
Yamaha Motors
U Flange Nut95604-06200-00
Required: 2
NUT, U FLANGE
$2.51
You save $0.44
$8.07
You save $1.42

69
Yamaha Motors
U Flange Nut95604-08200-00
Required: 4
NUT, U FLANGE
$2.40
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
