2004 Snowmobile RX10 - RX10 (8FH2) [020] FRAME diagram

1
Yamaha Motors
Front Frame Comp99999-03543-00
Required: 1
FRONT FRAME COMP.
Supersedes: 8FA-21940-00-00
$1512.14
You save $266.85

2
Yamaha Motors
8FA-W2197-12-008FA-W2197-11-00
Required: 1
. BULKHEAD
Supersedes: 8FA-W2197-00-00
$433.49
You save $76.50

3
Yamaha Motors
Solid Bushing90381-15001-00
Required: 2
. . BUSH, SOLID
$5.52
You save $0.97
4
Yamaha Motors
Solid Bushing90381-16004-00
Required: 2
. . BUSH, SOLID
Supersedes: 90381-16001-00
$15.72
You save $2.77

5
Yamaha Motors
BULKHEAD 299999-03545-00
Required: 1
. BULKHEAD 2
Supersedes: 8FA-W2198-00-00
$422.44
You save $74.55

6
Yamaha Motors
Solid Bushing90381-15001-00
Required: 2
. . BUSH, SOLID
$5.52
You save $0.97
7
Yamaha Motors
Solid Bushing90381-16004-00
Required: 2
. . BUSH, SOLID
Supersedes: 90381-16001-00
$15.72
You save $2.77

8
Yamaha Motors
Flange Bolt95817-08060-00
Required: 3
BOLT, FLANGE
Supersedes: 95827-08060-00
$4.08
You save $0.72

9
Yamaha Motors
Flange Bolt90105-084A1-00
Required: 1
BOLT, FLANGE
Supersedes: 95827-08065-00
$9.77
You save $1.72

10
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 4
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
$8.07
You save $1.42

11
Yamaha Motors
REGULATOR BRACKET8FA-2128A-01-00
Required: 1
BRACKET, REGULATOR
Supersedes: 8FA-2128A-00-00
$8.92
You save $1.57

12
Yamaha Motors
STEERING BRACKET8FG-21947-00-00
Required: 1
BRACKET, STEERING 1
$155.54
You save $27.45
In stock
5+ in stock
$3.53
You save $0.62

14
Yamaha Motors
Heat Exchanger Assembly8FA-12440-00-00
Required: 1
HEAT EXCHANGER ASSY
$640.04
You save $112.95
$8.07
You save $1.42
$15.72
You save $2.77

17
Yamaha Motors
Hose Clamp Assembly90450-35001-00
Required: 1
HOSE CLAMP ASSY
$5.52
You save $0.97
$66.29
You save $11.70
$8.07
You save $1.42

20
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
$8.07
You save $1.42
$3.57
You save $0.63

22
Yamaha Motors
REAR FRAME COMP.99999-03459-00
Required: 1
REAR FRAME COMP.
Supersedes: 8FG-21950-00-00
$963.04
You save $169.95

23
Yamaha Motors
FRAME REINFORCEMENT8FA-W2199-10-00
Required: 1
. REINEFORCEMENT, FRAME REAR 1
Supersedes: 8FA-W2199-01-00
$1805.39
You save $318.60
$16.14
You save $2.85

25
Yamaha Motors
RR TRACK SUSPENSION BRACKET8FG-21944-00-00
Required: 1
. BRACKET, RR.TRACK SUSPENTION 1
$52.69
You save $9.30

26
Yamaha Motors
Flange Bolt95817-10020-00
Required: 4
. BOLT, FLANGE
In stock
Only 2 remaining
$8.07
You save $1.42

27
Yamaha Motors
GUIDE PLATE8FG-47467-00-00
Required: 2
. PLATE, GUIDE
$8.49
You save $1.50

28
Yamaha Motors
FUEL TANK BRACKET8CR-2194N-00-00
Required: 2
. BRACKET, FUEL TANK 1
$3.10
You save $0.55
$3.57
You save $0.63
$3.57
You save $0.63

31
Yamaha Motors
Muffler Protector8FA-2194H-01-00
Required: 1
. PROTECTOR, MUFFLER
$67.14
You save $11.85

32
Yamaha Motors
Blind Rivet90267-47195-00
Required: 1
. RIVET, BLIND
$3.57
You save $0.63

33
Yamaha Motors
RR TRACK SUSPENSION BRACKET8FG-21954-00-00
Required: 1
. BRACKET, RR.TRACK SUSPENTION 2
$55.24
You save $9.75

34
Yamaha Motors
SUB FRAME PANEL8FG-21916-01-00
Required: 1
. PANEL, SUB FRAME 5
Supersedes: 8FG-21916-00-00
$164.89
You save $29.10
$61.19
You save $10.80
$61.19
You save $10.80

37
Yamaha Motors
Side Member8FG-2111J-00-00
Required: 1
. MEMBER, SIDE 1
$75.64
You save $13.35

38
Yamaha Motors
Side Member8FG-2111K-00-00
Required: 1
. MEMBER, SIDE 2
$75.64
You save $13.35

39
Yamaha Motors
Heat Exchanger Assembly8FA-1241A-00-00
Required: 1
. HEAT EXCHANGER ASSY 4
$51.84
You save $9.15

40
Yamaha Motors
Seal Washer90210-06006-00
Required: 1
. . WASHER, SEAL
$8.92
You save $1.57

41
Yamaha Motors
95817-06016-0090105-06010-00
Required: 1
. . BOLT, FLANGE
Supersedes: 95817-06016-00
$1.49
You save $0.26

42
Yamaha Motors
Blind Rivet90267-48095-00
Required: 2
. RIVET, BLIND
$2.29
You save $0.41

43
Yamaha Motors
FOOTREST REINFORCEMENT8FG-21926-00-00
Required: 1
. REINFORCEMENT, FOOTREST 1
$120.69
You save $21.30

44
Yamaha Motors
FOOTREST REINFORCEMENT8FG-21936-00-00
Required: 1
. REINFORCEMENT, FOOTREST 2
$120.69
You save $21.30
$4.17
You save $0.74
$4.17
You save $0.74

47
Yamaha Motors
Frame Connection Kit8FG-W2195-00-00
Required: 1
FRAME CONNECTION KIT
$207.39
You save $36.60

48
Yamaha Motors
Chain Housing Bracket8CR-21939-01-00
Required: 2
. BRACKET, CHAIN HOUSING
$5.52
You save $0.97

49
Yamaha Motors
MAIN TRACK BRACKET8CR-21943-01-00
Required: 2
. BRACKET, MAIN TRACK 1
$3.57
You save $0.63

50
Yamaha Motors
BRACKET8FG-2196M-00-00
Required: 1
. BRACKET, 5
$28.04
You save $4.95
$22.94
You save $4.05
$4.12
You save $0.73

53
Yamaha Motors
Wireharness Clamp8FA-21999-00-00
Required: 1
. CLAMP, WIREHARNESS
$9.34
You save $1.65

54
Yamaha Motors
Blind Rivet90267-47195-00
Required: 1
. RIVET, BLIND
$3.57
You save $0.63

55
Yamaha Motors
Blind Rivet90267-48018-00
Required: 18
. RIVET, BLIND
$8.92
You save $1.57

56
Yamaha Motors
MAIN TRACK BRACKET8FA-21953-00-00
Required: 2
. BRACKET, MAIN TRACK 2
$3.87
You save $0.68

57
Yamaha Motors
FOOTREST COMP. 18FG-21960-00-00
Required: 1
FOOTREST COMP. 1
$242.24
You save $42.75

58
Yamaha Motors
FOOTREST COMP. 28FG-21970-00-00
Required: 1
FOOTREST COMP. 2
$205.69
You save $36.30

59
Yamaha Motors
OIL TANK BRACKET8FA-2193E-00-00
Required: 1
BRACKET, OIL TANK 1
$16.57
You save $2.92

60
Yamaha Motors
Flange Bolt95817-08014-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-08014-00
$2.13
You save $0.38

61
Yamaha Motors
Reinforcement Sub Housing Assembly8EK-21920-01-00
Required: 1
HOUSING, REINF SUB-ASSY(L.H)
$18.69
You save $3.30
$21.24
You save $3.75
$27.19
You save $4.80

64
Yamaha Motors
STEERING BRACKET PLATE8FA-2195E-00-00
Required: 1
PLATE, STRG BRACKET 1
$16.99
You save $3.00

65
Yamaha Motors
STEERING BRACKET PLATE8FA-2195F-00-00
Required: 1
PLATE, STRG BRACKET 2
$8.49
You save $1.50

66
Yamaha Motors
Frame Under8FA-2196A-00-00
Required: 1
FRAME UNDER 1
$73.94
You save $13.05

67
Yamaha Motors
UNDER FRAME8FA-2196E-01-00
Required: 1
FRAME, UNDER 2
Supersedes: 8FA-2196E-00-00
$70.54
You save $12.45

68
Yamaha Motors
Guard Fitting Bracket8FA-21972-01-00
Required: 1
BRACKET, GUARD FITTING
Supersedes: 8FA-21972-00-00
$6.37
You save $1.12
$6.37
You save $1.12
$3.06
You save $0.54
In stock
5+ in stock
$2.51
You save $0.44

72
Yamaha Motors
FRONT BUMPER8FA-77512-00-00
Required: 1
BUMPER, FRONT 2
$24.64
You save $4.35
$1.19
You save $0.21

74
Yamaha Motors
Front Bracket8FA-21949-00-00
Required: 1
BRACKET, FRONT
$59.49
You save $10.50

75
Yamaha Motors
FRONT BUMPER BRACKET8FA-21959-00-00
Required: 1
BRACKET, FRONT BUMPER
$55.24
You save $9.75
$3.87
You save $0.68
$1.36
You save $0.24

78
Yamaha Motors
FRAME PROTECTOR8FG-21978-00-00
Required: 2
PROTECTOR, FRAME
$69.69
You save $12.30

79
Yamaha Motors
Bracket8FA-2197N-01-00
Required: 4
BRACKET 7
Supersedes: 8FA-2197N-00-00
$3.40
You save $0.60
$10.62
You save $1.87
$3.57
You save $0.63
82
Yamaha Motors
Flange Bolt95817-08020-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-08020-00
In stock
Only 1 remaining
$8.92
You save $1.57
$2.29
You save $0.41

84
Yamaha Motors
FRAME PROTECTOR8FA-2197E-01-00
Required: 1
PROTECTOR, FRAME
Supersedes: 8FA-2197E-00-00
$33.14
You save $5.85
$8.07
You save $1.42
86
Yamaha Motors
Spring Nut (4ES)90183-06069-00
Required: 5
NUT, SPRING
Supersedes: 90183-06053-00
In stock
Only 2 remaining
$6.37
You save $1.12
$3.61
You save $0.64
$43.34
You save $7.65
$3.02
You save $0.53

90
Yamaha Motors
WARNING LABEL 28BH-77762-00-00
Required: 1
LABEL, WARNING 2
$53.54
You save $9.45

90
Yamaha Motors
Label (Warning)88X-77762-10-00
Required: 1
LABEL, WARNING 2
$23.79
You save $4.20
90
Required: 1
LABEL, WARNING 2
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.



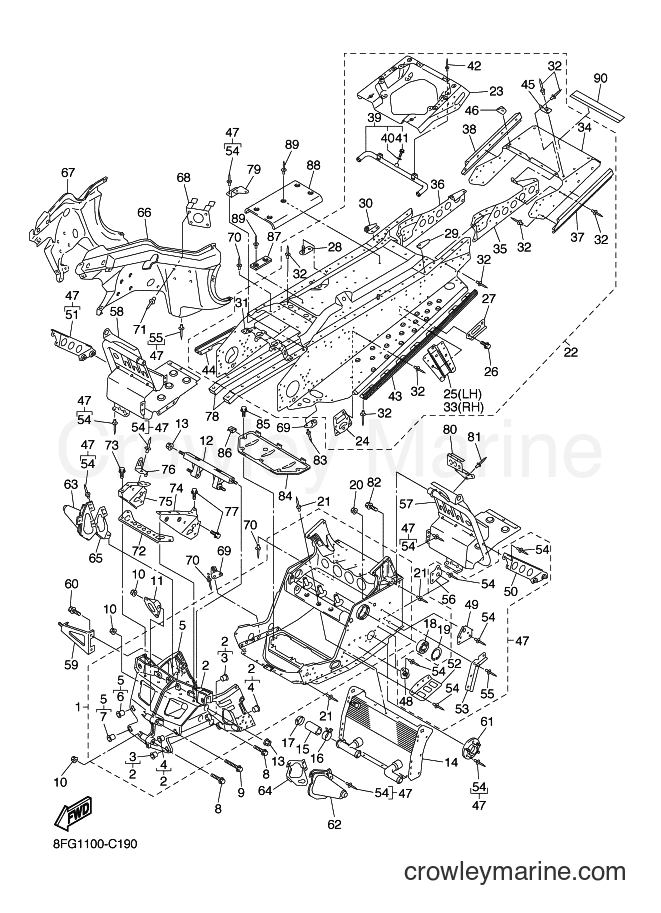

![Yamaha Motors RX10 (8FH2) [020] - FRAME](https://cdn.crowleymarine.com/yamaha/kcTWEK3X.png)
