2001 Snowmobile VT480TF - VT480TF (8BM8) [020] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

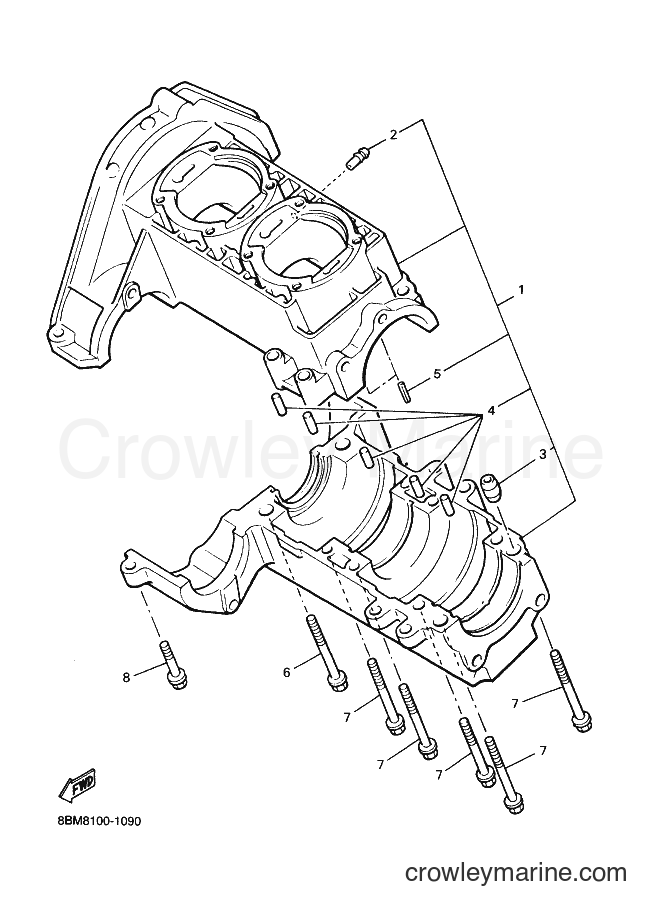

Yamaha Motors VT480TF (8BM8) [020] - CRANKCASE

Change View:

Yamaha Motors

Crankcase Assembly88T-15100-01-00

Required: 1

CRANKCASE ASSY

~~$844.99~~

$718.24

You save $126.75

More details

-50%

Yamaha Motors

Breather JointJ38-11116-00-00

Required: 1

. JOINT, BREATHER

In stock

Only 1 remaining

~~$3.80~~

$1.90

You save $1.90

More details

-50%

Yamaha Motors

Dowel Pin99530-12016-00

Required: 2

. PIN, DOWEL

In stock

Only 2 remaining

~~$4.89~~

$2.45

You save $2.45

More details

Yamaha Motors

Dowel Pin93604-07141-00

Required: 5

. PIN, DOWEL

~~$2.70~~

$2.29

You save $0.41

More details

Yamaha Motors

Spring Pin (80K)91609-30006-00

Required: 2

. PIN, SPRING

~~$0.20~~

$0.57

You save $-0.37

More details

Yamaha Motors

Washer Based Bolt90105-08466-00

Required: 1

BOLT, FLANGE

~~$3.50~~

$2.98

You save $0.52

More details

Yamaha Motors

Flange Bolt90105-084A1-00

Required: 9

BOLT, FLANGE

Supersedes: 95817-08065-00

~~$11.49~~

$9.77

You save $1.72

More details

Yamaha Motors

Flange Bolt95811-06025-00

Required: 1

BOLT, FLANGE

Supersedes: 95827-06025-00

~~$1.70~~

$1.44

You save $0.26

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
