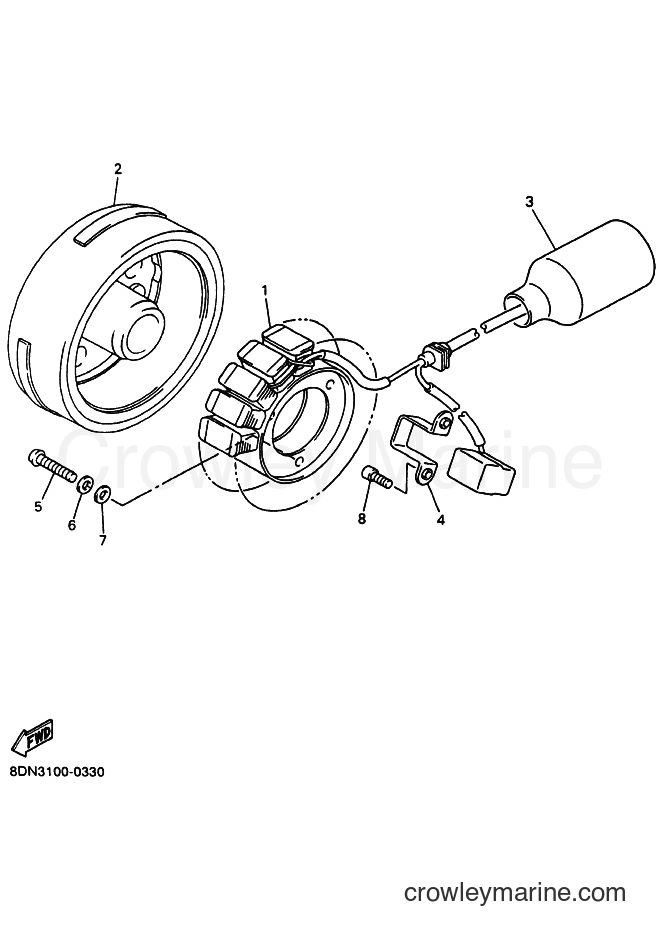

2001 Snowmobile SRX700 - SRX700 (8DN4) [020] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Yamaha Motors SRX700 (8DN4) [020] - GENERATOR

Change View:

Yamaha Motors

Alternator Stator Assembly8EK-81410-10-00

Required: 1

STATOR ASSY

Supersedes: 8DN-81410-00-00

~~$557.99~~

$474.29

You save $83.70

More details

Yamaha Motors

Rotor Assembly8DN-81450-00-00

Required: 1

ROTOR ASSY

~~$612.91~~

$520.97

You save $91.94

More details

Yamaha Motors

Connector Cover8Y0-82599-00-00

Required: 1

COVER, CONNECTER

~~$2.90~~

$2.46

You save $0.44

CLAMP

Supersedes: 90465-10390-00

~~$5.99~~

$5.09

You save $0.90

More details

Yamaha Motors

Pan Head Screw98517-06030-00

Required: 3

SCREW, PAN HEAD

Supersedes: 98507-06030-00

In stock

Only 2 remaining

~~$3.35~~

$2.85

You save $0.50

More details

Yamaha Motors

Spring Washer92907-06100-00

Required: 3

WASHER, SPRING

In stock

Only 1 remaining

~~$1.30~~

$1.10

You save $0.20

More details

Yamaha Motors

Plate Washer92907-06600-00

Required: 3

WASHER, PLATE

In stock

5+ in stock

~~$1.00~~

$0.85

You save $0.15

BOLT

~~$9.49~~

$8.07

You save $1.42

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

Flat $9.95 Shipping on ALL parts orders

2001 Snowmobile SRX700 - SRX700 (8DN4) [020] GENERATOR diagram
