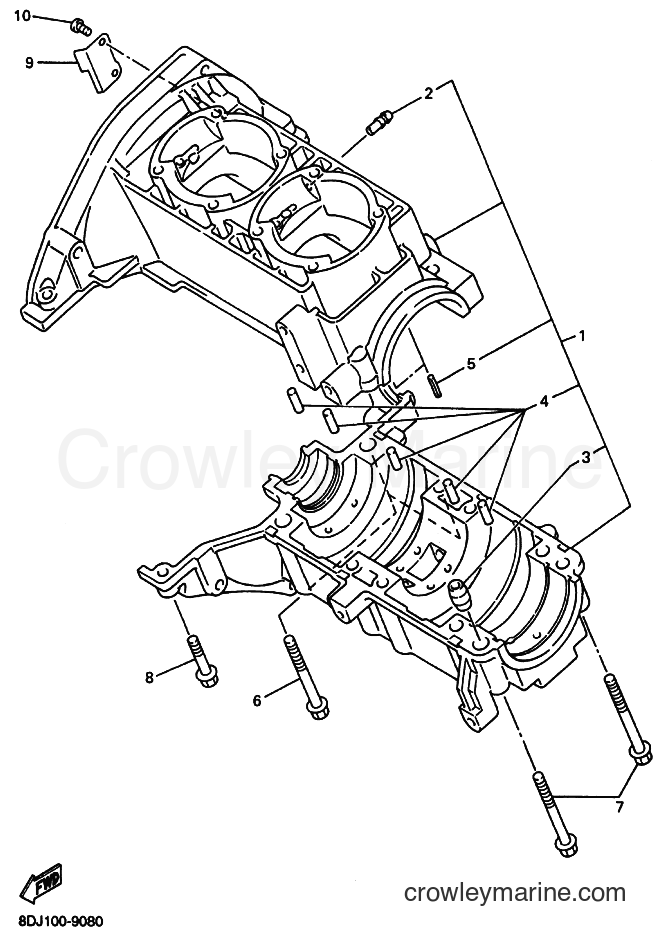

2000 Snowmobile PZ500LT - PZ500LT (8EG1) [020] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors PZ500LT (8EG1) [020] - CRANKCASE
Change View:
Crankcase Assembly
1
Yamaha Motors
Crankcase Assembly8DJ-15100-00-00
Required: 1
CRANKCASE ASSY
Cross Ship
Leaves in 2-5 days
$833.80
$708.73
You save $125.07
More details
Dowel Pin
4
Yamaha Motors
Dowel Pin93604-07141-00
Required: 5
. PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Spring Pin (80K)
5
Yamaha Motors
Spring Pin (80K)91609-30006-00
Required: 2
. PIN, SPRING
Cross Ship
Leaves in 2-5 days
$0.20
$0.17
You save $0.03
More details
Washer Based Bolt
6
Yamaha Motors
Washer Based Bolt90105-08466-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details
Flange Bolt
7
Yamaha Motors
Flange Bolt90105-084A1-00
Required: 8
BOLT, FLANGE
Supersedes: 95817-08065-00
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Clamp
9
Yamaha Motors
Clamp90461-12145-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$2.55
$2.17
You save $0.38
More details
Screw
10
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.49
You save $0.62
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
