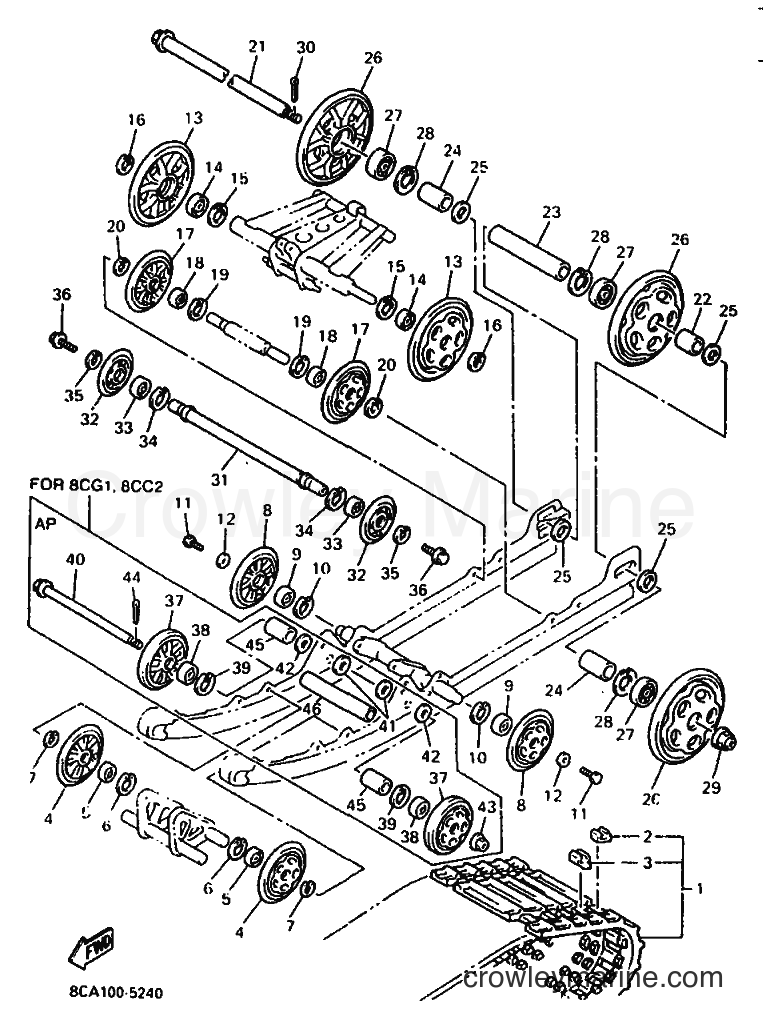

1995 Snowmobile VX600E - VX600E (8CF2) [020] TRACK SUSPENSION 1 diagram

1
Yamaha Motors
TRACK ASSEMBLY8BN-47110-10-00
Required: 1
TRACK ASSY
Supersedes: 8BN-47110-00-00
$778.59
You save $137.40

1
Yamaha Motors
TRACK ASSEMBLY8CC-47110-11-00
Required: 1
TRACK ASSY
Supersedes: 8CC-47110-00-00
$1101.59
You save $194.40

1
Yamaha Motors
TRACK ASSEMBLY8CA-47110-10-00
Required: 1
TRACK ASSY
Supersedes: 8CA-47110-00-00
$525.29
You save $92.70

2
Yamaha Motors
REINFORCEMENT PLATE89A-47113-00-00
Required: 48
. PLATE, REINFORCEMENT
Supersedes: 8A5-47113-00-00
$5.09
You save $0.90

3
Yamaha Motors
METAL,SLIDE89A-47115-01-00
Required: 48
. METAL, SLIDE
$5.94
You save $1.05
4
Yamaha Motors
SUSPENSION WHEEL87M-47320-00-00
Required: 2
SUSPENSION WHEEL COMP.
$78.19
You save $13.80

5
Yamaha Motors
BEARING93306-00444-00
Required: 2
BEARING
Supersedes: 93306-00441-00
$39.09
You save $6.90
$8.07
You save $1.42
$8.07
You save $1.42
8
Yamaha Motors
SUSPENSION WHEEL87M-47320-00-00
Required: 2
SUSPENSION WHEEL COMP.
$78.19
You save $13.80

9
Yamaha Motors
BEARING93306-00444-00
Required: 2
BEARING
Supersedes: 93306-00441-00
$39.09
You save $6.90
$8.07
You save $1.42
$8.07
You save $1.42

12
Yamaha Motors
Plate Washer90201-08681-00
Required: 2
WASHER, PLATE
$7.22
You save $1.27

13
Yamaha Motors
SUSPENSION WHEEL88R-47320-00-00
Required: 2
SUSPENSION WHEEL COMP.
$42.49
You save $7.50
$39.09
You save $6.90
$8.07
You save $1.42
$8.07
You save $1.42
17
Yamaha Motors
SUSPENSION WHEEL87M-47320-00-00
Required: 2
SUSPENSION WHEEL COMP.
$78.19
You save $13.80

18
Yamaha Motors
BEARING93306-00444-00
Required: 2
BEARING
Supersedes: 93306-00441-00
$39.09
You save $6.90
$8.07
You save $1.42
$8.07
You save $1.42

21
Yamaha Motors
Rear Axle8L8-47520-02-00
Required: 1
REAR AXLE COMP.
Supersedes: 8L8-47520-01-00
$83.29
You save $14.70
$5.52
You save $0.97

23
Yamaha Motors
COLLAR90387-20023-00
Required: 1
COLLAR
Supersedes: 90387-204R2-00
$27.19
You save $4.80

24
Yamaha Motors
COLLAR90387-20022-00
Required: 2
COLLAR
Supersedes: 90387-203H0-00
$22.94
You save $4.05

25
Yamaha Motors
Plate Washer90201-205R6-00
Required: 4
WASHER, PLATE
$11.47
You save $2.02

26
Yamaha Motors
Guide Wheel8K2-47530-00-00
Required: 3
GUIDE WHEEL COMP.
$118.14
You save $20.85
$39.09
You save $6.90
$8.92
You save $1.57

29
Yamaha Motors
Self-Locking Nut95607-14200-00
Required: 1
NUT, SELF-LOCKING
$11.47
You save $2.02

30
Yamaha Motors
Cotter Pin91490-30030-00
Required: 1
PIN, COTTER
Supersedes: 91401-30030-00
In stock
Only 2 remaining
$7.22
You save $1.27
31
Required: 1
IDLER
Price unavailable

32
Yamaha Motors
SUSPENSION WHEEL8H8-47320-00-00
Required: 2
SUSPENSION WHEEL COMP.
$60.34
You save $10.65
$39.09
You save $6.90
$8.07
You save $1.42
$8.07
You save $1.42
In stock
Only 1 remaining
$8.92
You save $1.57
37
Yamaha Motors
SUSPENSION WHEEL87M-47320-00-00
Required: 2
SUSPENSION WHEEL COMP.
$78.19
You save $13.80

38
Yamaha Motors
BEARING93306-00444-00
Required: 2
BEARING
Supersedes: 93306-00441-00
$39.09
You save $6.90
$8.07
You save $1.42
$61.50
You save $10.85

41
Yamaha Motors
Plate Washer90201-164P0-00
Required: 2
WASHER, PLATE
$3.36
You save $0.59

42
Yamaha Motors
Plate Washer90201-164H4-00
Required: 2
WASHER, PLATE
$8.92
You save $1.57

43
Yamaha Motors
Self-Locking Nut95607-14200-00
Required: 1
NUT, SELF-LOCKING
$11.47
You save $2.02

44
Yamaha Motors
Cotter Pin91490-30030-00
Required: 1
PIN, COTTER
Supersedes: 91401-30030-00
In stock
Only 2 remaining
$7.22
You save $1.27
$8.07
You save $1.42
$14.02
You save $2.47
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
