1995 Snowmobile ET410TR - ET410TR (8BY2) [020] ELECTRICAL 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

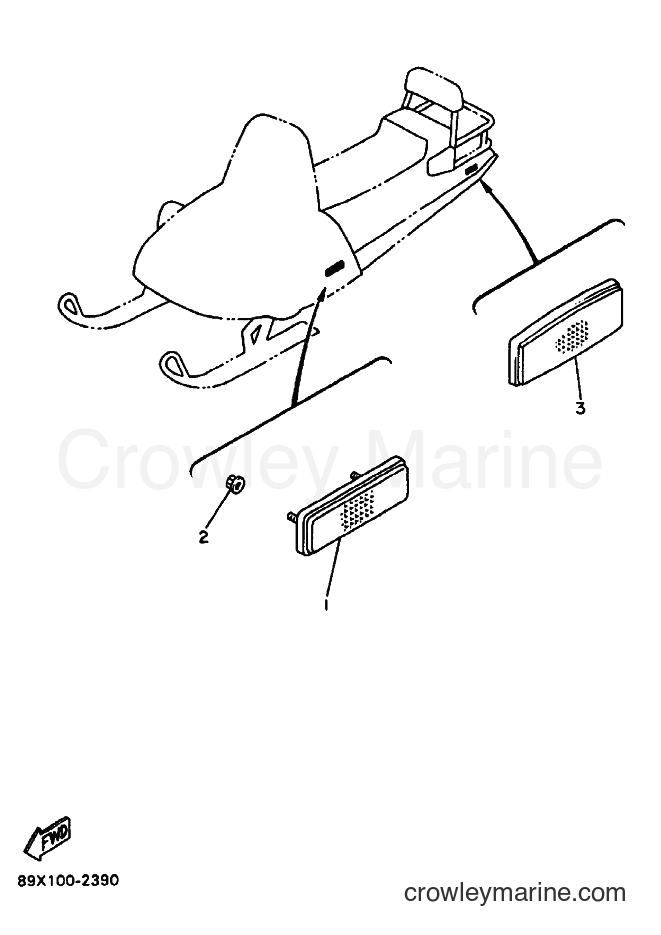

Yamaha Motors ET410TR (8BY2) [020] - ELECTRICAL 3
Change View:
FRONT,REFLECT. ASY
1
Yamaha Motors
FRONT,REFLECT. ASY86R-85110-00-00
Required: 2
REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$31.99
$27.19
You save $4.80
More details
95707-05500-00
2
Yamaha Motors
95707-05500-0095701-05500-00
Required: 4
NUT, flange
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
REAR REFLECTOR ASSEMBLY
3
Yamaha Motors
REAR REFLECTOR ASSEMBLY81G-85130-00-00
Required: 2
REAR REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
