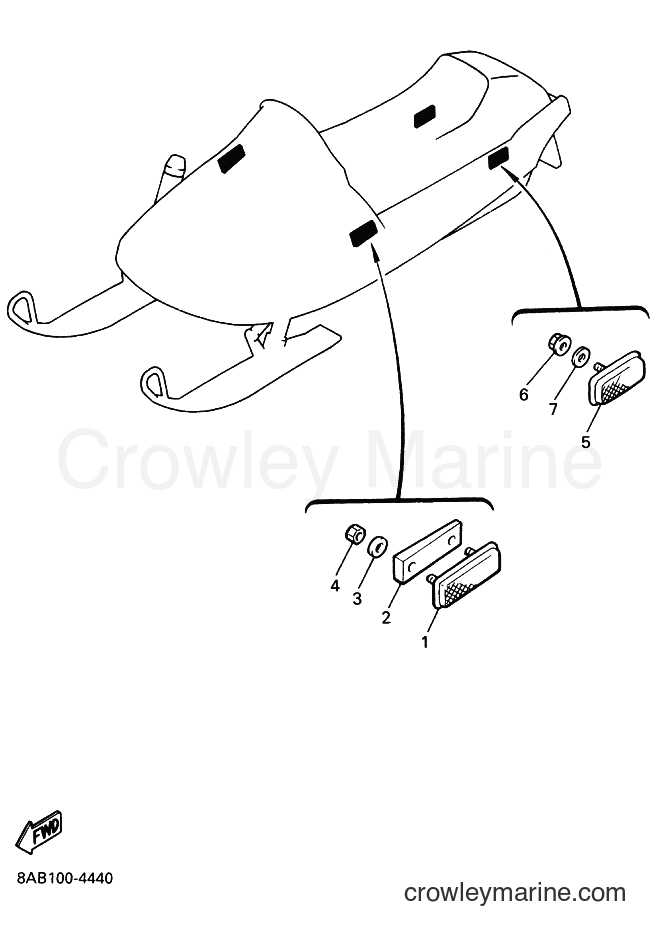

1994 Snowmobile VX500 - VX500 (8AB1) [020] ELECTRICAL 4 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VX500 (8AB1) [020] - ELECTRICAL 4
Change View:
FRONT REFLECTOR
1
Yamaha Motors
FRONT REFLECTOR81E-85110-00-00
Required: 2
REFLECTOR ASSY
Supersedes: 80E-85110-00-00
Cross Ship
Leaves in 2-5 days
$18.49
$15.72
You save $2.77
More details
Reflector Base
2
Yamaha Motors
Reflector Base80F-85115-00-00
Required: 2
BASE, REFLECTOR
Cross Ship
Leaves in 2-5 days
$13.99
$11.89
You save $2.10
More details
FLANGE NUT (4GB)
4
Yamaha Motors
FLANGE NUT (4GB)95707-05300-00
Required: 4
NUT, NYLON
Supersedes: 95701-05300-00
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
3Y6-85130-01-00
5
Yamaha Motors
3Y6-85130-01-003Y6-85130-00-00
Required: 2
REAR REFLECTOR ASSY
Supersedes: 3Y6-85130-02-00
Cross Ship
Leaves in 2-5 days
$18.99
$16.14
You save $2.85
More details
Rear Reflector Assembly
5
Yamaha Motors
Rear Reflector Assembly1FK-85130-00-00
Required: 2
REAR REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$20.99
$17.84
You save $3.15
More details
95707-05500-00
6
Yamaha Motors
95707-05500-0095701-05500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
FLANGE NUT (4GB)
6
Yamaha Motors
FLANGE NUT (4GB)95707-05300-00
Required: 2
NUT, NYLON
Supersedes: 95701-05300-00
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
