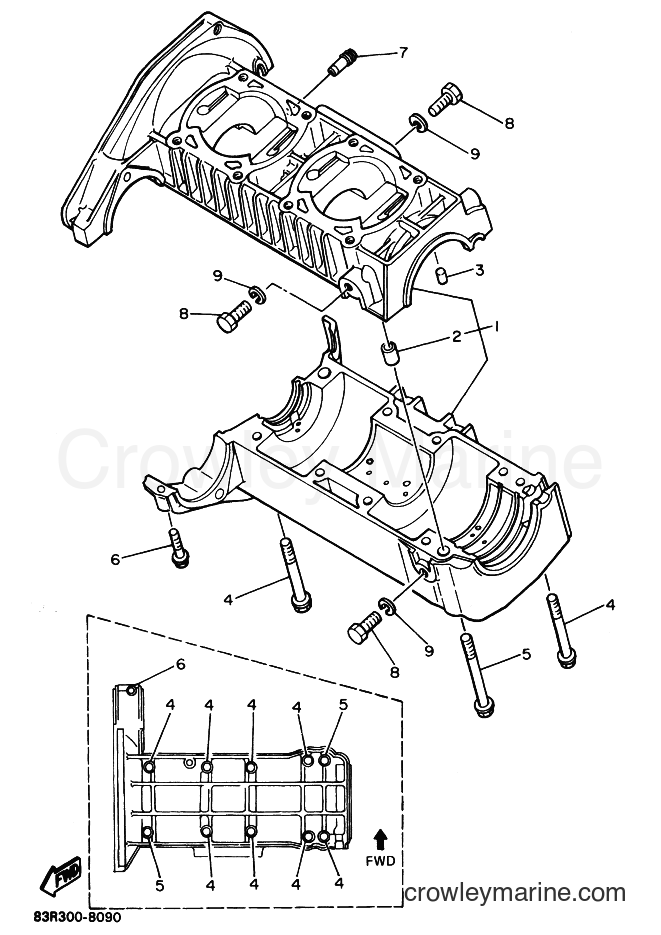

1994 Snowmobile VK540E - VK540E (8AC1) [020] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VK540E (8AC1) [020] - CRANKCASE
Change View:
Crankcase Assembly
1
Yamaha Motors
Crankcase Assembly8H8-15109-08-00
Required: 1
CRANKCASE ASSY
Supersedes: 8H8-15100-02-00
Cross Ship
Leaves in 2-5 days
$975.99
$829.59
You save $146.40
More details
Dowel Pin
3
Yamaha Motors
Dowel Pin93604-07141-00
Required: 2
PIN, dowel
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Flange Bolt
4
Yamaha Motors
Flange Bolt95817-08075-00
Required: 8
BOLT, flange
Supersedes: 95811-08075-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Flange Bolt (8BN)
5
Yamaha Motors
Flange Bolt (8BN)95817-08085-00
Required: 2
BOLT, flange
Supersedes: 95811-08085-00
Cross Ship
Leaves in 2-5 days
$4.95
$4.21
You save $0.74
More details
Flange Bolt
6
Yamaha Motors
Flange Bolt95817-06030-00
Required: 1
BOLT, flange
Supersedes: 95811-06030-00
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
Bolt
8
Yamaha Motors
Bolt97013-08020-00
Required: 6
BOLT
Supersedes: 97313-08020-00
Cross Ship
Leaves in 2-5 days
$1.80
$1.53
You save $0.27
More details
Spring Washer
9
Yamaha Motors
Spring Washer92907-08100-00
Required: 6
WASHER, spring
Supersedes: 92902-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
