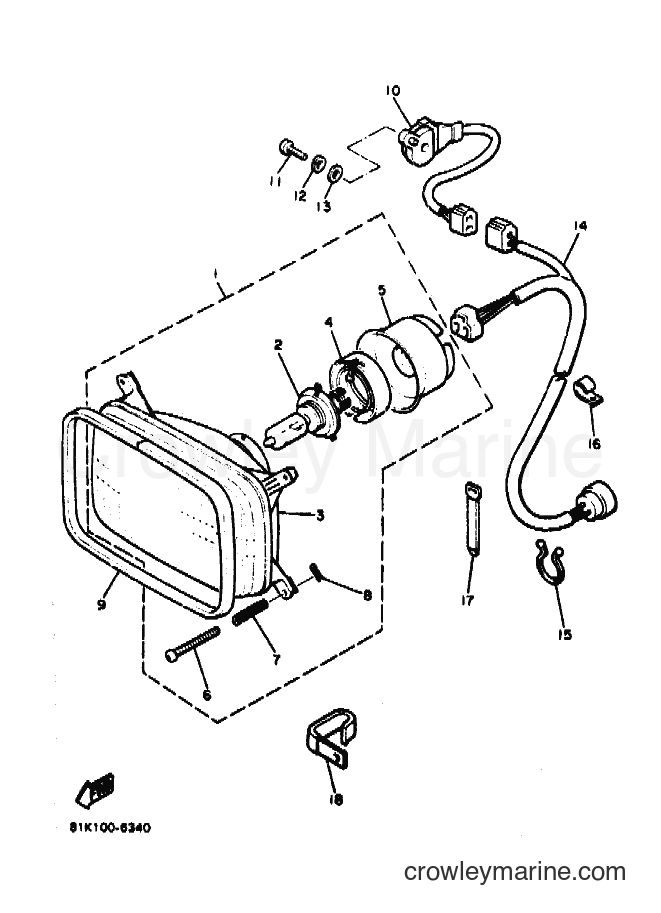

1990 Snowmobile VMX540P - VMX540P (87V1) [010] HEADLIGHT diagram

1
Yamaha Motors
HEADLIGHT UNIT ASSEMBLY8M6-84310-00-00
Required: 1
HEADLIGHT UNIT ASSY
$175.09
You save $30.90

2
Yamaha Motors
Headlight Bulb8V0-84314-10-00
Required: 1
.BULB (12V-60/55W)
Supersedes: 2F9-84314-00-00
In stock
Only 1 remaining
$64.59
You save $11.40
$46.74
You save $8.25
$28.04
You save $4.95

5
Yamaha Motors
Socket Cover8A7-84397-01-00
Required: 1
.COVER, socket
$22.94
You save $4.05

6
Yamaha Motors
RIM ADJUSTMENT SCREW8M6-84331-00-00
Required: 4
.SCREW, rim adjusting
$16.57
You save $2.92

7
Yamaha Motors
Screw Spring8A5-84332-00-00
Required: 4
.SPRING, screw
$9.34
You save $1.65
$8.07
You save $1.42

9
Yamaha Motors
Headlight Damper8T7-84366-00-00
Required: 1
DAMPER, headlight 1
$6.37
You save $1.12

10
Yamaha Motors
Light Switch Assembly8M6-82520-01-00
Required: 1
LIGHT SWITCH ASSY
$27.19
You save $4.80

11
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 1
SCREW, pan head
Supersedes: 98501-05025-00
In stock
Only 5 remaining
$1.70
You save $0.30

12
Yamaha Motors
Spring Washer92990-05100-00
Required: 1
WASHER, spring
In stock
Only 5 remaining
$0.30
You save $0.05

13
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER, plate
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12

14
Yamaha Motors
HEADLIGHT CORD8X6-84359-00-00
Required: 1
CORD, headlight
$45.04
You save $7.95
In stock
Only 1 remaining
$8.92
You save $1.57
$1.40
You save $0.25
In stock
Only 1 remaining
$4.67
You save $0.82
$6.37
You save $1.12
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
