All diagrams for this model

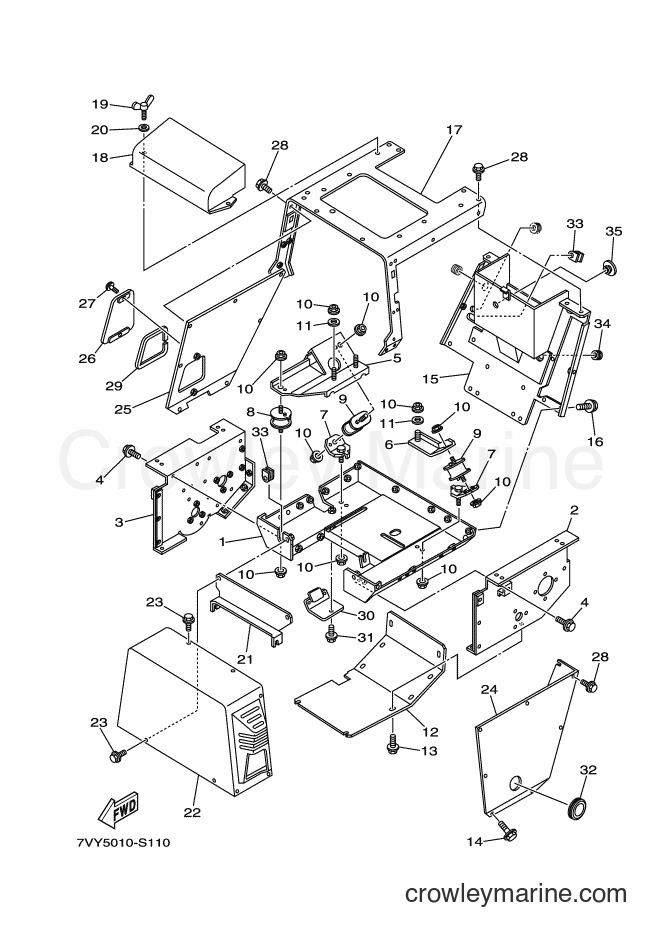

2017 Snowblower YS860 - YS860 (7VY5) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YS860 (7VY5) [010] - FRAME
Change View:
1
Required: 1
COVER, UNDER
Price unavailable
2
Required: 1
FRAME 1
Price unavailable
3
Required: 1
FRAME 2
Price unavailable
95811-08012-00
4
Yamaha Motors
95811-08012-0095812-08012-00
Required: 8
BOLT, FLANGE
Supersedes: 95822-08012-00
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
5
Required: 1
BRACKET, ENGINE 1
Price unavailable
6
Required: 1
BRACKET, ENGINE 2
Price unavailable
7
Required: 2
BRACKET, ENGINE 3
Price unavailable
8
Required: 2
DAMPER 2
Price unavailable
9
Required: 2
INSULATOR, MOUNTING 2
Price unavailable
Flange Nut
10
Yamaha Motors
Flange Nut95702-10500-00
Required: 13
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.20
$0.17
You save $0.03
More details
92990-10200-00
11
Yamaha Motors
92990-10200-0092903-10200-00
Required: 3
WASHER
Supersedes: 92902-10200-00
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
12
Required: 1
PLATE 1
Price unavailable
95814-08016-00
14
Yamaha Motors
95814-08016-0095821-08016-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-08016-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details
15
Required: 1
COVER, REAR
Price unavailable
95814-08016-00
16
Yamaha Motors
95814-08016-0095821-08016-00
Required: 5
BOLT, FLANGE
Supersedes: 95822-08016-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details
17
Required: 1
COVER, UPPER
Price unavailable
18
Required: 1
PLATE, BATTERY COVER
Price unavailable
19
Required: 2
BOLT, WING 1
Price unavailable
20
Required: 2
WASHER, SPECIAL 2
Price unavailable
21
Required: 1
COVER 1
Price unavailable
22
Required: 1
COVER, FRONT
Price unavailable
95811-06010-00
23
Yamaha Motors
95811-06010-0095821-06010-00
Required: 12
BOLT, FLANGE
Supersedes: 95822-06010-00
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
24
Required: 1
COVER, SIDE 1
Price unavailable
25
Required: 1
COVER, SIDE 2
Price unavailable
26
Required: 1
LID, SIDE COVER 2
Price unavailable
Screw
27
Yamaha Motors
Screw90149-06223-00
Required: 2
SCREW
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
95811-06010-00
28
Yamaha Motors
95811-06010-0095821-06010-00
Required: 16
BOLT, FLANGE
Supersedes: 95822-06010-00
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
29
Required: 1
TRIM 1
Price unavailable
30
Required: 1
COVER 4
Price unavailable
95811-06010-00
31
Yamaha Motors
95811-06010-0095821-06010-00
Required: 3
BOLT, FLANGE
Supersedes: 95822-06010-00
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
GROMMET, WATER TUBE (UPPER)
32
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-48243-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
Grommet
33
Yamaha Motors
Grommet90480-17441-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$1.18
$1.00
You save $0.18
More details
34
Required: 1
GROMMET
Price unavailable
Grommet
35
Yamaha Motors
Grommet90480-17165-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$10.10
$8.59
You save $1.52
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
