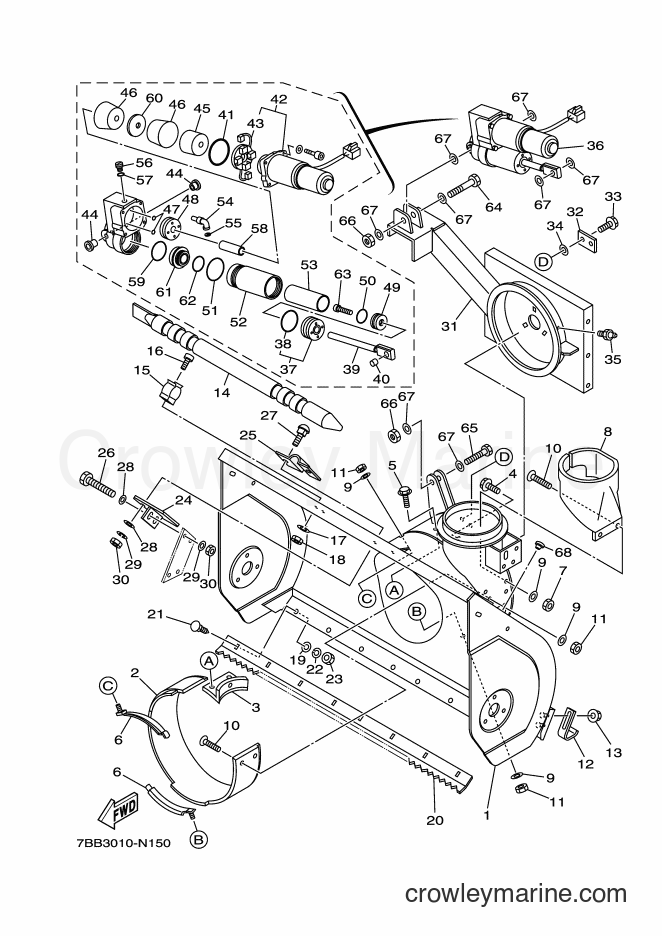

2017 Snowblower YS1390AR - YS1390AR (7BB4) [010] AUGA CASE 2 diagram
![Yamaha Motors YS1390AR (7BB4) [010] - AUGA CASE 2](https://cdn.crowleymarine.com/yamaha/IsWiQMOX.png)
1
Required: 1
HOUSING, AUGER
Price unavailable
2
Required: 1
HOUSING, IMPELLER
Price unavailable
3
Required: 1
BRACKET 1
Price unavailable
4
Yamaha Motors
Flange Bolt95817-06008-00
Required: 1
BOLT, FLANGE
Supersedes: 95822-06008-00
In stock
Only 2 remaining
$8.07
You save $1.42
5
Yamaha Motors
Flange Bolt95817-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-06012-00
In stock
5+ in stock
$1.66
You save $0.29
6
Required: 2
BRACKET 2
Price unavailable
7
Yamaha Motors
NUT95617-06100-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$2.46
You save $0.44
8
Required: 1
DUCT, IMPELLER
Price unavailable
9
Yamaha Motors
Plain Washer92990-06200-00
Required: 6
WASHER
Supersedes: 92902-06200-00
$0.85
You save $0.15
10
Required: 4
SCREW, SPECIAL
Price unavailable
11
Yamaha Motors
NUT95617-06100-00
Required: 4
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
$2.46
You save $0.44
12
Required: 2
SKID
Price unavailable
In stock
Only 2 remaining
$0.89
You save $0.16
$29.74
You save $5.25
$14.02
You save $2.47
16
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05010-00
In stock
Only 4 remaining
$3.91
You save $0.69
17
Yamaha Motors
Spring Washer92902-05100-00
Required: 2
WASHER, SPRING
In stock
Only 2 remaining
$1.31
You save $0.23
18
Yamaha Motors
Nut95380-05600-00
Required: 2
NUT, HEXAGON
Supersedes: 95302-05600-00
In stock
Only 5 remaining
$8.07
You save $1.42
19
Required: 8
WASHER, SPECIAL 1
Price unavailable
20
Required: 1
SCRAPER
Price unavailable
21
Required: 8
BOLT, SPECIAL 2
Price unavailable
22
Yamaha Motors
Spring Washer92907-08100-00
Required: 8
WASHER, SPRING
Supersedes: 92902-08100-00
$8.07
You save $1.42
23
Yamaha Motors
Nut95302-08600-00
Required: 8
NUT, HEXAGON
$8.92
You save $1.57
24
Required: 1
BRACKET 1
Price unavailable
25
Required: 1
REINFORCEMENT 1
Price unavailable
26
Yamaha Motors
Bolt97017-08025-00
Required: 2
BOLT, HEXAGON
Supersedes: 97022-08025-00
In stock
Only 1 remaining
$9.77
You save $1.72
27
Required: 2
BOLT, SPECIAL 2
Price unavailable
$0.26
You save $0.05
29
Yamaha Motors
Spring Washer92907-08100-00
Required: 4
WASHER, SPRING
Supersedes: 92902-08100-00
$8.07
You save $1.42
30
Yamaha Motors
Nut95302-08600-00
Required: 4
NUT, HEXAGON
$8.92
You save $1.57
31
Required: 1
BRACKET 1
Price unavailable
32
Required: 3
RETAINER
Price unavailable
33
Yamaha Motors
95811-08012-0095812-08012-00
Required: 6
BOLT, FLANGE
Supersedes: 95822-08012-00
$1.32
You save $0.23
34
Required: 12
SHIM
Price unavailable
35
Required: 1
NIPPLE, GREASE
Price unavailable
36
Required: 1
POWER TRIM & TILT ASSY
Price unavailable
37
Required: 1
. CYLINDER END SUB ASSY
Price unavailable
38
Required: 1
. . O-RING 2
Price unavailable
39
Required: 1
. ROD
Price unavailable
40
Required: 1
. BUSH, FORMED
Price unavailable
41
Required: 1
. O-RING 9
Price unavailable
42
Required: 1
. MOTOR ASSY
Price unavailable
43
Required: 2
. . BRUSH 1
Price unavailable
44
Required: 2
. HOLDER
Price unavailable
45
Required: 1
. BODY, RESERVOIR
Price unavailable
46
Required: 2
. BRACKET
Price unavailable
In stock
Only 4 remaining
$3.02
You save $0.53
48
Required: 1
. GEAR PUMP ASSY
Price unavailable
49
Required: 1
. PISTON, TILT
Price unavailable
In stock
5+ in stock
$5.23
You save $0.92
$4.29
You save $0.76
52
Required: 1
. CYLINDER, SHOCK ABSORBER
Price unavailable
53
Required: 1
. CYLINDER, TILT
Price unavailable
54
Required: 2
. ADAPTOR 1
Price unavailable
55
Required: 2
. FILTER 1
Price unavailable
56
Required: 2
. SCREW, MANUAL RELEASE
Price unavailable
57
Required: 2
. O-RING
Price unavailable
58
Required: 1
. PIPE
Price unavailable
59
Required: 1
. O-RING
Price unavailable
60
Required: 1
. BRACKET
Price unavailable
61
Required: 1
. PISTON, FREE
Price unavailable
In stock
Only 1 remaining
$3.95
You save $0.70
63
Required: 1
. BOLT
Price unavailable
64
Required: 1
BOLT, SPECIAL 1
Price unavailable
65
Required: 1
BOLT, SPECIAL 3
Price unavailable
66
Required: 2
NUT, SPECIAL 1
Price unavailable
67
Yamaha Motors
Washer92990-14200-00
Required: 8
WASHER
Supersedes: 92902-14200-00
In stock
Only 2 remaining
$2.25
You save $0.40
68
Yamaha Motors
Plug90338-07180-00
Required: 1
PLUG
Supersedes: 90338-06018-00
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
