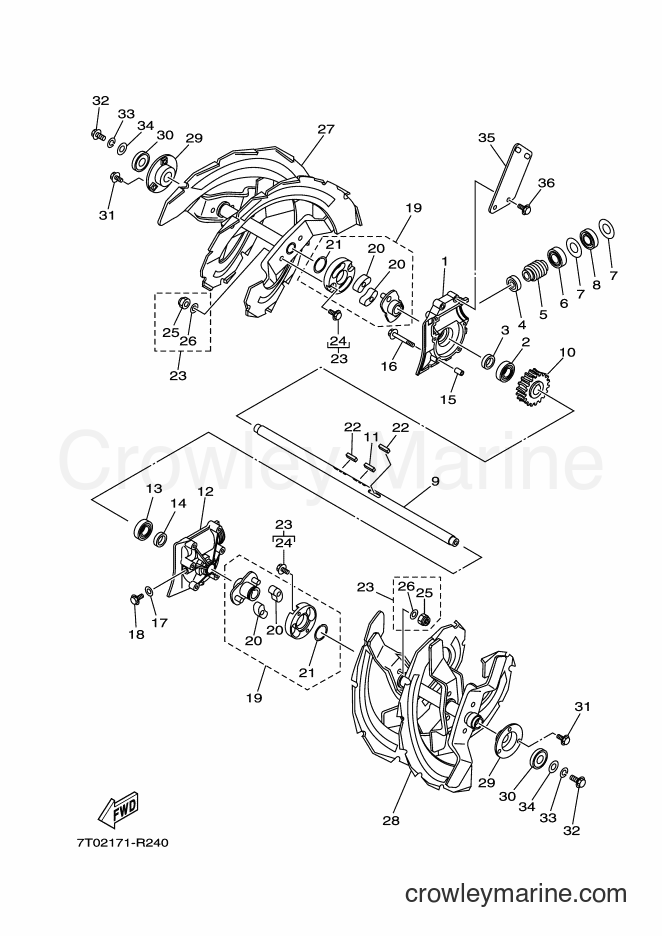

2016 Snowblower YT660 - YT660 (7T02) [010] AUGA DRIVEN diagram
![Yamaha Motors YT660 (7T02) [010] - AUGA DRIVEN](https://cdn.crowleymarine.com/yamaha/jhhbrJtK.png)
1
Required: 1
COVER 1
Price unavailable
2
Required: 1
BEARING
Price unavailable
$5.52
You save $0.97
4
Required: 1
BEARING
Price unavailable
5
Required: 1
WORM, GEAR 1
Price unavailable
6
Required: 1
BEARING
Price unavailable
7
Required: 2
WASHER, PLATE
Price unavailable
8
Required: 1
OIL SEAL
Price unavailable
9
Required: 1
SHAFT, AUGER
Price unavailable
10
Required: 1
WORM, WHEEL
Price unavailable
11
Required: 1
KEY, STRAIGHT
Price unavailable
12
Required: 1
COVER 2
Price unavailable
13
Required: 1
BEARING
Price unavailable
$5.52
You save $0.97
In stock
Only 1 remaining
$5.61
You save $0.99
16
Yamaha Motors
Flange Bolt95817-06045-00
Required: 6
BOLT, FLANGE
Supersedes: 95812-06045-00
$8.07
You save $1.42
17
Yamaha Motors
Plate Washer90201-082A6-00
Required: 2
WASHER, PLATE
$3.06
You save $0.54
$11.47
You save $2.02
19
Required: 2
BRACKET ASSY
Price unavailable
20
Required: 2
. DAMPER
Price unavailable
21
Yamaha Motors
S -type Circlip93410-32075-00
Required: 1
. CIRCLIP
Supersedes: 99009-32400-00
In stock
5+ in stock
$8.92
You save $1.57
22
Required: 2
KEY, STRAIGHT
Price unavailable
23
Required: 1
BOLT, SHEAR SET
Price unavailable
24
Yamaha Motors
Flange Bolt95817-06020-00
Required: 4
. BOLT, FLANGE
Supersedes: 95822-06020-00
In stock
Only 2 remaining
$2.98
You save $0.52
25
Yamaha Motors
U Flange Nut95604-06200-00
Required: 4
. NUT, SELF-LOCKING
Supersedes: 95602-06200-00
$2.89
You save $0.06
26
Yamaha Motors
Plain Washer90201-06102-00
Required: 4
. WASHER, PLATE
$3.57
You save $0.63
27
Required: 1
AUGER 2
Price unavailable
28
Required: 1
AUGER 1
Price unavailable
29
Required: 2
HOUSING, BEARING 2
Price unavailable
30
Required: 2
BEARING
Price unavailable
31
Yamaha Motors
Flange Bolt95817-06012-00
Required: 6
BOLT, FLANGE
Supersedes: 95822-06012-00
In stock
5+ in stock
$1.66
You save $0.29
32
Yamaha Motors
Bolt Flange (4LN)95817-08025-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-08025-00
$8.07
You save $1.42
33
Yamaha Motors
Spring Washer92907-08100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-08100-00
$8.07
You save $1.42
34
Required: 2
WASHER, PLATE
Price unavailable
35
Required: 1
STAY, DOCUMENT BOX
Price unavailable
36
Yamaha Motors
Bolt Flange (4LN)95817-08025-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-08025-00
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
