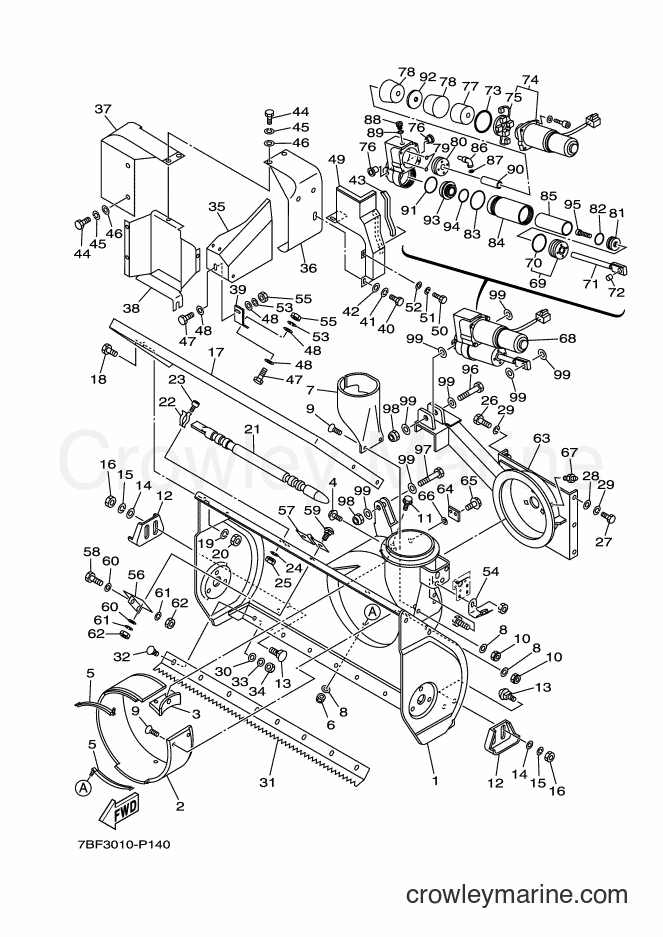

2016 Snowblower YT1390EXR - YT1390EXR (7BF4) [010] AUGA CASE 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YT1390EXR (7BF4) [010] - AUGA CASE 2
Change View:
1
Required: 1
HOUSING, AUGER
Price unavailable
2
Required: 1
HOUSING, IMPELLER
Price unavailable
3
Required: 1
BRACKET 1
Price unavailable
5
Required: 2
BRACKET 2
Price unavailable
NUT
6
Yamaha Motors
NUT95617-06100-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
7
Required: 1
DUCT, IMPELLER
Price unavailable
Plain Washer
8
Yamaha Motors
Plain Washer92990-06200-00
Required: 6
WASHER
Supersedes: 92902-06200-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
9
Required: 4
SCREW, SPECIAL
Price unavailable
NUT
10
Yamaha Motors
NUT95617-06100-00
Required: 4
NUT, SELF-LOCKING
Supersedes: 95602-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
12
Required: 2
SKID
Price unavailable
13
Required: 3
BOLT, SPECIAL 1
Price unavailable
WASHER
14
Yamaha Motors
WASHER92902-08200-00
Required: 4
WASHER
Cross Ship
Leaves in 2-5 days
$0.30
$0.26
You save $0.05
More details
Spring Washer
15
Yamaha Motors
Spring Washer92907-08100-00
Required: 4
WASHER, SPRING
Supersedes: 92902-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Nut
16
Yamaha Motors
Nut95302-08600-00
Required: 4
NUT, HEXAGON
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
17
Required: 1
SIDE MARKER
Price unavailable
BOLT
18
Yamaha Motors
BOLT97002-08020-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$0.10
$0.08
You save $0.01
More details
Spring Washer
19
Yamaha Motors
Spring Washer92907-08100-00
Required: 4
WASHER, SPRING
Supersedes: 92902-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Nut
20
Yamaha Motors
Nut95302-08600-00
Required: 4
NUT, HEXAGON
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Bar
21
Yamaha Motors
Bar7KA-52516-00-00
Required: 1
BAR
Cross Ship
Leaves in 2-5 days
$34.99
$29.74
You save $5.25
More details
Clamp
22
Yamaha Motors
Clamp90465-10319-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
26
Required: 5
BOLT
Price unavailable
27
Required: 1
BOLT
Price unavailable
92990-10200-00
28
Yamaha Motors
92990-10200-0092903-10200-00
Required: 1
WASHER
Supersedes: 92902-10200-00
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
30
Required: 8
WASHER, SPECIAL 1
Price unavailable
31
Required: 1
SCRAPER
Price unavailable
32
Required: 8
BOLT, SPECIAL 2
Price unavailable
Spring Washer
33
Yamaha Motors
Spring Washer92907-08100-00
Required: 8
WASHER, SPRING
Supersedes: 92902-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Nut
34
Yamaha Motors
Nut95302-08600-00
Required: 8
NUT, HEXAGON
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
35
Required: 1
COVER 1
Price unavailable
36
Required: 1
GUARD 1
Price unavailable
37
Required: 1
GUARD 2
Price unavailable
38
Required: 1
GUARD 3
Price unavailable
39
Required: 1
STAY 1
Price unavailable
97011-08016-00
40
Yamaha Motors
97011-08016-0097022-08016-00
Required: 2
BOLT
Supersedes: 97002-08016-00
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
Spring Washer
41
Yamaha Motors
Spring Washer92907-08100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
43
Required: 1
DAMPER 4
Price unavailable
Hexagon bolt
44
Yamaha Motors
Hexagon bolt97313-06016-00
Required: 6
BOLT, HEXAGON
Supersedes: 97002-06016-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
97011-06016-00
47
Yamaha Motors
97011-06016-0097022-06016-00
Required: 2
BOLT, HEXAGON
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
Plain Washer
48
Yamaha Motors
Plain Washer92990-06200-00
Required: 4
WASHER
Supersedes: 92902-06200-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
49
Required: 1
COVER 1
Price unavailable
BOLT
50
Yamaha Motors
BOLT97027-06012-00
Required: 1
BOLT, HEXAGON
Supersedes: 97022-06012-00
Cross Ship
Leaves in 2-5 days
$0.85
$0.72
You save $0.13
More details
54
Required: 1
BRACKET 1
Price unavailable
56
Required: 1
BRACKET 1
Price unavailable
57
Required: 1
REINFORCEMENT 1
Price unavailable
59
Required: 2
BOLT, SPECIAL 2
Price unavailable
WASHER
60
Yamaha Motors
WASHER92902-08200-00
Required: 4
WASHER
Cross Ship
Leaves in 2-5 days
$0.30
$0.26
You save $0.05
More details
Spring Washer
61
Yamaha Motors
Spring Washer92907-08100-00
Required: 4
WASHER, SPRING
Supersedes: 92902-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Nut
62
Yamaha Motors
Nut95302-08600-00
Required: 4
NUT, HEXAGON
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
63
Required: 1
BRACKET 1
Price unavailable
64
Required: 3
RETAINER
Price unavailable
95811-08012-00
65
Yamaha Motors
95811-08012-0095812-08012-00
Required: 6
BOLT, FLANGE
Supersedes: 95822-08012-00
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
66
Required: 6
SHIM
Price unavailable
67
Required: 1
NIPPLE, GREASE
Price unavailable
68
Required: 1
POWER TRIM & TILT ASSY
Price unavailable
69
Required: 1
. CYLINDER END SUB ASSY
Price unavailable
70
Required: 1
. . O-RING 2
Price unavailable
71
Required: 1
. ROD
Price unavailable
72
Required: 1
. BUSH, FORMED
Price unavailable
73
Required: 1
. O-RING 9
Price unavailable
74
Required: 1
. MOTOR ASSY
Price unavailable
75
Required: 2
. . BRUSH 1
Price unavailable
76
Required: 2
. HOLDER
Price unavailable
77
Required: 1
. BODY, RESERVOIR
Price unavailable
78
Required: 2
. BRACKET
Price unavailable
80
Required: 1
. GEAR PUMP ASSY
Price unavailable
81
Required: 1
. PISTON, TILT
Price unavailable
O-Ring
83
Yamaha Motors
O-Ring7BB-G3861-00-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$5.05
$4.29
You save $0.76
More details
84
Required: 1
. CYLINDER, SHOCK ABSORBER
Price unavailable
85
Required: 1
. CYLINDER, TILT
Price unavailable
86
Required: 2
. ADAPTOR 1
Price unavailable
87
Required: 2
. FILTER 1
Price unavailable
88
Required: 2
. SCREW, MANUAL RELEASE
Price unavailable
89
Required: 2
. O-RING
Price unavailable
90
Required: 1
. PIPE
Price unavailable
91
Required: 1
. O-RING
Price unavailable
92
Required: 1
. BRACKET
Price unavailable
93
Required: 1
. PISTON, FREE
Price unavailable
95
Required: 1
. BOLT
Price unavailable
96
Required: 1
BOLT, SPECIAL 1
Price unavailable
97
Required: 1
BOLT, SPECIAL 2
Price unavailable
98
Required: 2
NUT, SPECIAL 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
