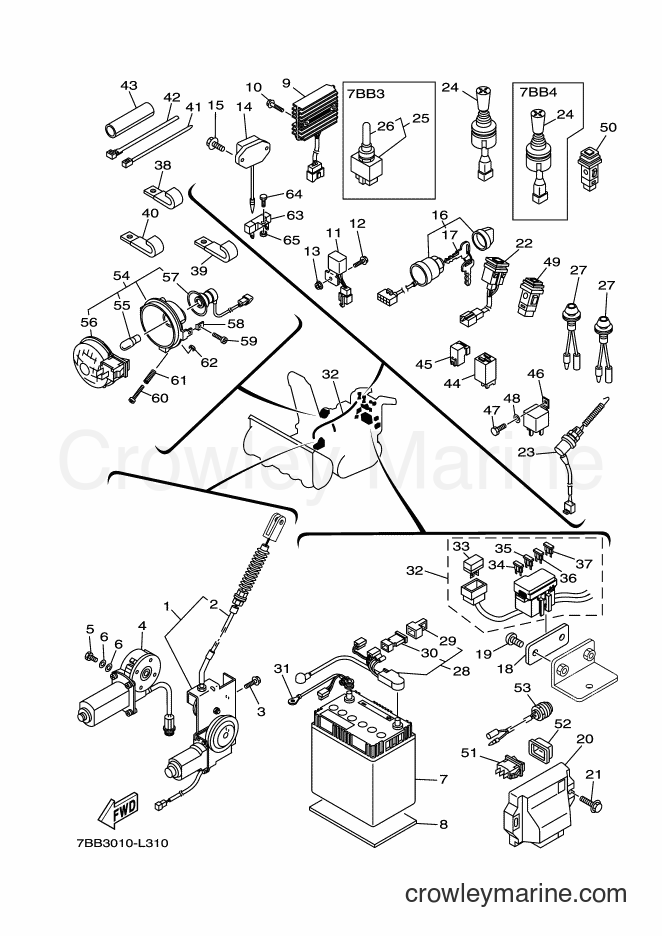

2013 Snowblower YS1390A - YS1390A (7BB3) [010] ELECTRICAL 1 diagram
![Yamaha Motors YS1390A (7BB3) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/2KoptQaF.png)
1
Required: 1
MOTOR CONTROL UNIT ASSY
Price unavailable
2
Required: 1
CABLE, CONTROL 2
Price unavailable
3
Yamaha Motors
95814-08016-0095821-08016-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-08016-00
$1.87
You save $0.33
4
Required: 1
MOTOR ASSY
Price unavailable
$1.50
You save $0.27
6
Yamaha Motors
Plain Washer92990-05200-00
Required: 6
WASHER
Supersedes: 92902-05200-00
In stock
Only 1 remaining
$4.25
You save $0.75
8
Required: 1
SEAT, BATTERY
Price unavailable
9
Required: 1
RECTIFIER & REGULATOR (18A)
Price unavailable
10
Yamaha Motors
Flange Bolt95817-06020-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-06020-00
In stock
Only 2 remaining
$2.98
You save $0.52
11
Yamaha Motors
RECTIFIER ASSY7RH-81970-01-00
Required: 1
RECTIFIER ASSY
Supersedes: 7RH-81970-00-00
$56.94
You save $10.05
12
Yamaha Motors
Flange Bolt95817-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95822-06012-00
In stock
5+ in stock
$1.66
You save $0.29
In stock
Only 1 remaining
$2.21
You save $0.39
14
Yamaha Motors
Voltage Regulator Assembly7XE-81910-00-00
Required: 1
VOLTAGE REGULATOR ASSY
Supersedes: 82F-81910-A0-00
$66.29
You save $11.70
15
Yamaha Motors
Flange Bolt95817-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-06012-00
In stock
5+ in stock
$1.66
You save $0.29
16
Required: 1
MAIN SWITCH ASSY
Price unavailable
17
Yamaha Motors
Main Switch Key7KE-82511-00-00
Required: 2
KEY, MAIN SWITCH
$12.32
You save $2.17
$24.64
You save $4.35
19
Yamaha Motors
98904-06014-0098903-06014-00
Required: 2
SCREW, BIND
Supersedes: 98902-06014-00
$1.87
You save $0.33
20
Required: 1
CONTROLLER ASSY
Price unavailable
$3.82
You save $0.68
22
Required: 1
START SWITCH
Price unavailable
23
Required: 2
STOP SWITCH ASSY
Price unavailable
24
Required: 1
SWITCH
Price unavailable
25
Required: 1
SWITCH
Price unavailable
26
Required: 1
. COVER, SWITCH
Price unavailable
27
Required: 2
PILOT LIGHT ASSY
Price unavailable
28
Required: 1
WIRE, PLUS LEAD
Price unavailable
29
Required: 1
BAND
Price unavailable
30
Required: 1
FUSE (40A)
Price unavailable
31
Required: 1
WIRE, MINUS LEAD
Price unavailable
32
Required: 1
WIRE HARNESS ASSY
Price unavailable
32
Required: 1
WIRE HARNESS ASSY
Price unavailable
$11.04
You save $1.95
34
Yamaha Motors
Fuse (5A)67F-82151-20-00
Required: 2
. FUSE (5A-BL)
Supersedes: 5JJ-82151-90-00
$5.14
You save $0.91
35
Yamaha Motors
Fuse (15A)67F-82151-50-00
Required: 2
. FUSE (15A-BL)
Supersedes: 5JJ-82151-10-00
$3.44
You save $0.61
36
Yamaha Motors
FUSE (25A-BL)5JJ-82151-70-00
Required: 2
. FUSE (25A-BL)
$6.37
You save $1.12
37
Yamaha Motors
Fuse (12V/10A)5JJ-82151-60-00
Required: 3
. FUSE (30A-BL)
$7.22
You save $1.27
38
Required: 2
CLAMP
Price unavailable
39
Required: 3
CLAMP, WIRE
Price unavailable
40
Required: 2
CLAMP 1
Price unavailable
41
Required: 5
BAND
Price unavailable
42
Required: 12
BAND
Price unavailable
43
Required: 3
COVER, CONNECTOR
Price unavailable
44
Required: 2
RELAY ASSY
Price unavailable
45
Required: 2
RELAY ASSY
Price unavailable
46
Required: 2
RELAY ASSY
Price unavailable
47
Yamaha Motors
Bolt97013-05010-00
Required: 2
BOLT
Supersedes: 97002-05010-00
In stock
Only 5 remaining
$0.72
You save $0.13
48
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER, PLATE
Supersedes: 92902-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
49
Required: 1
SELECT SWITCH, 1
Price unavailable
50
Required: 1
TRIM & TILT SWITCH ASSY
Price unavailable
51
Required: 1
SWITCH, CONTROL
Price unavailable
52
Required: 1
CAP, SWITCH
Price unavailable
53
Yamaha Motors
Starting Switch Assembly6G8-81870-00-00
Required: 1
STARTING SWITCH ASSY
Supersedes: 689-81870-00-00
In stock
Only 3 remaining
$33.79
You save $5.96
$60.34
You save $10.65
55
Yamaha Motors
Headlight Bulb, 12V30/30W4KB-84314-01-00
Required: 1
BULB (12V-30/30W)
$36.54
You save $6.45
$90.94
You save $16.05
57
Yamaha Motors
Socket Cord Assembly 15EH-84340-00-00
Required: 1
SOCKET CORD ASSY 1
$53.54
You save $9.45
$8.92
You save $1.57
59
Yamaha Motors
Binding Screw90154-05004-00
Required: 2
SCREW, BINDING
$4.67
You save $0.82
60
Yamaha Motors
Pan Head Screw98502-03540-00
Required: 1
SCREW, PAN HEAD
$8.07
You save $1.42
$7.22
You save $1.27
62
Yamaha Motors
Adjusting Nut2GU-84334-00-00
Required: 1
NUT, ADJUSTING
$7.22
You save $1.27
63
Required: 1
RESISTOR ASSY
Price unavailable
64
Required: 1
BOLT, HEXAGON SOCKET HEAD
Price unavailable
65
Yamaha Motors
Flange Nut95701-04500-00
Required: 1
NUT, FLANGE
Supersedes: 95702-04500-00
$0.94
You save $0.17
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
