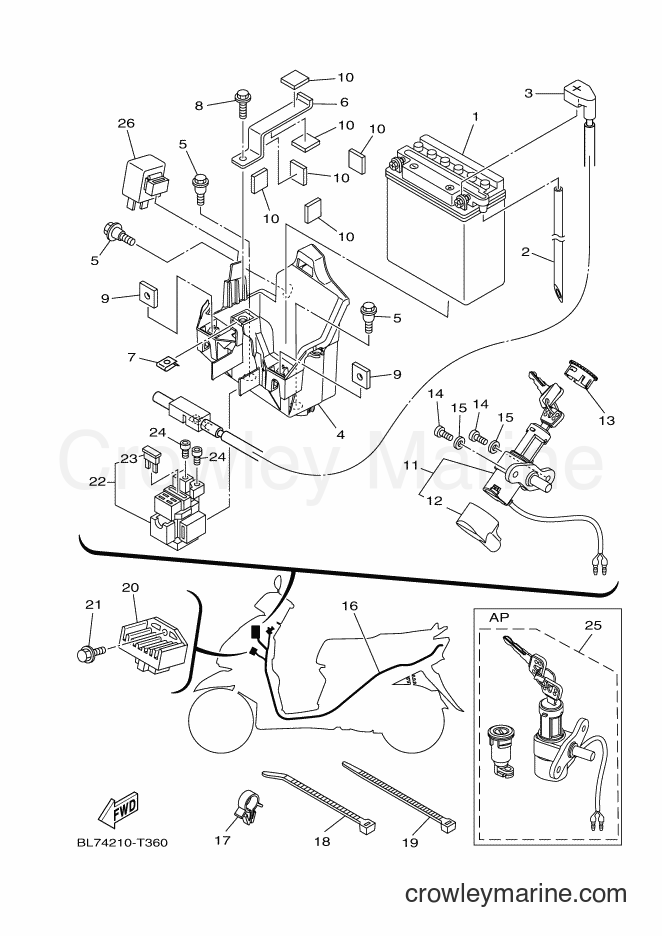

2018 Scooter XC115F - XC115F (BL74) [010] ELECTRICAL 2 diagram
![Yamaha Motors XC115F (BL74) [010] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/8N9x0okZ.png)
1
Required: 1
BATTERY ASSY (EXIDE 12MX5L-B)
Price unavailable
1
Required: 1
BATTERY ASSY (AMCO AB5L-B)
Price unavailable
2
Required: 1
HOSE
Price unavailable
3
Required: 1
WIRE, PLUS LEAD
Price unavailable
4
Required: 1
BOX, BATTERY 1
Price unavailable
In stock
Only 1 remaining
$2.64
You save $0.46
6
Required: 1
PLATE, BATTERY FITTING
Price unavailable
7
Yamaha Motors
Spring Nut (4ES)90183-06069-00
Required: 1
NUT, SPRING
Supersedes: 90183-06800-00
In stock
Only 2 remaining
$6.37
You save $1.12
8
Yamaha Motors
Flange Bolt95817-06016-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06016-00
$1.56
You save $0.39
9
Required: 2
NUT, SQUARE
Price unavailable
10
Required: 6
DAMPER, PLATE
Price unavailable
11
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
12
Required: 1
. GROMMET
Price unavailable
13
Required: 1
CAP, SWITCH
Price unavailable
-50%
14
Yamaha Motors
BOLT91312-06016-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
In stock
Only 2 remaining
$3.25
You save $3.25
$10.19
You save $1.80
16
Required: 1
WIRE HARNESS ASSY
Price unavailable
$8.07
You save $1.42
18
Yamaha Motors
Clamp90465-12356-00
Required: 5
CLAMP
Supersedes: 90464-36800-00
$1.06
You save $0.19
$1.57
You save $0.28
20
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
$2.89
You save $0.51
22
Required: 1
STARTER RELAY ASSY
Price unavailable
23
Required: 1
. FUSE (10A)
Price unavailable
24
Yamaha Motors
Hexagon Socket Bolt91312-05008-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$7.22
You save $1.27
25
Required: 1
MAIN SW. STRG. LOCK SUB ASSY
Price unavailable
26
Required: 1
FLASHER RELAY ASSY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
