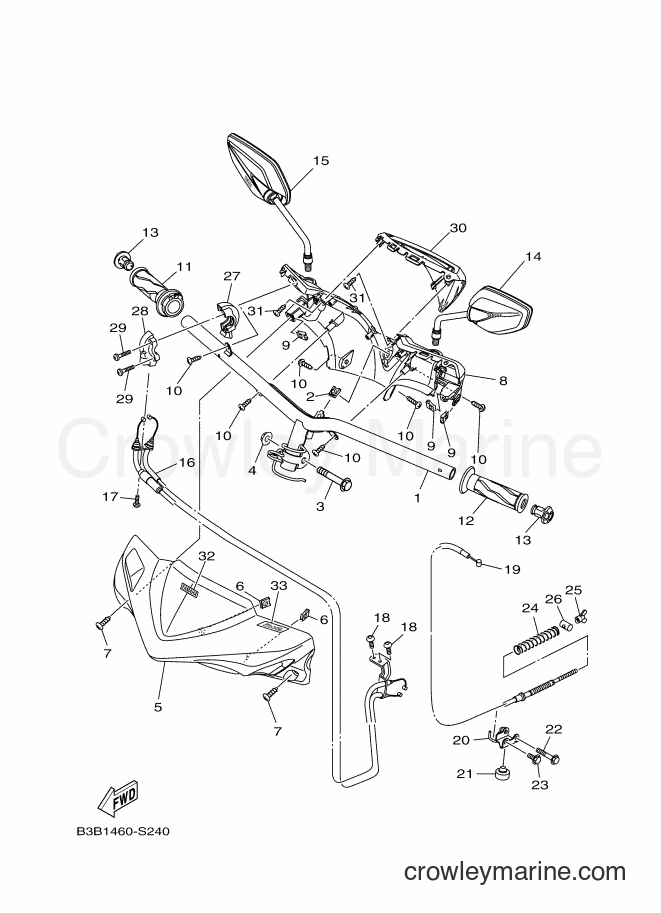

2018 Scooter LNY125 - LNY125 (B3B1) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors LNY125 (B3B1) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/NjooUgu1.png)
1
Required: 1
HANDLE COMP.
Price unavailable
2
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
3
Required: 1
BOLT, FLANGE
Price unavailable
4
Yamaha Motors
SELF-LOCKING NUT90185-10011-00
Required: 1
NUT, SELF-LOCKING
$4.21
You save $0.74
5
Required: 1
COVER, HANDLE UPPER 1
Price unavailable
6
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
7
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
8
Required: 1
COVER, HANDLE UPPER 2
Price unavailable
9
Yamaha Motors
Spring Nut90183-05042-00
Required: 3
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
10
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 6
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
11
Required: 1
GRIP ASSY
Price unavailable
12
Required: 1
GRIP
Price unavailable
13
Required: 2
END, GRIP
Price unavailable
14
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
15
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
16
Required: 1
THROTTLE CABLE ASSY
Price unavailable
16
Required: 1
THROTTLE CABLE ASSY
Price unavailable
17
Yamaha Motors
Button head bolt92012-05016-00
Required: 1
BOLT, BUTTON HEAD
$8.07
You save $1.42
18
Yamaha Motors
Button head bolt92012-05010-00
Required: 2
BOLT, BUTTON HEAD
$8.07
You save $1.42
19
Required: 1
CABLE, BRAKE
Price unavailable
19
Required: 1
CABLE, BRAKE
Price unavailable
20
Required: 1
HOLDER, WIRE
Price unavailable
21
Required: 1
STOPPER
Price unavailable
22
Required: 1
BOLT, FLANGE DEEP RECESS
Price unavailable
23
Yamaha Motors
DEEP FLANGE BOLT95E32-06014-00
Required: 1
BOLT, FLANGE DEEP RECESS
$0.38
You save $0.07
24
Required: 1
SPRING, COMPRESSION
Price unavailable
In stock
Only 1 remaining
$4.67
You save $0.82
In stock
Only 4 remaining
$8.07
You save $1.42
27
Required: 1
CAP, GRIP UPPER
Price unavailable
28
Required: 1
CAP, GRIP UNDER
Price unavailable
29
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05025-00
In stock
Only 5 remaining
$1.70
You save $0.30
30
Required: 1
COVER, METER
Price unavailable
31
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
32
Required: 1
EMBLEM, YAMAHA
Price unavailable
$3.74
You save $0.66
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
