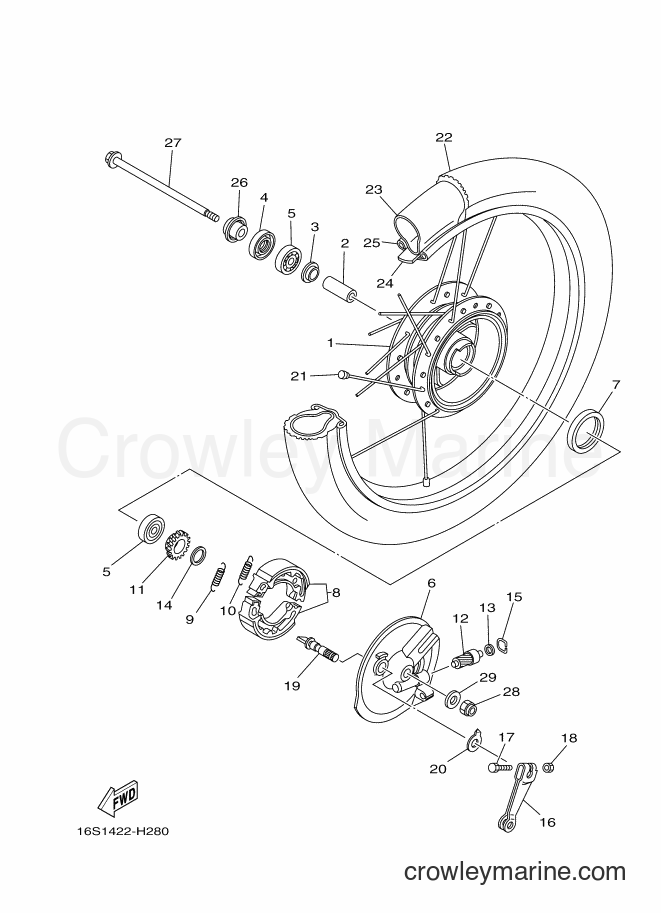

2017 Scooter T115FLSE - T115FLSE (1FCH) [010] FRONT WHEEL 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLSE (1FCH) [010] - FRONT WHEEL 3
Change View:
1
Required: 1
HUB, FRONT
Price unavailable
2
Required: 1
SPACER
Price unavailable
3
Required: 1
FLANGE, SPACER 1
Price unavailable
Oil Seal
4
Yamaha Motors
Oil Seal93106-20808-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$1.80
$1.53
You save $0.27
More details
5
Required: 2
BEARING
Price unavailable
6
Required: 1
PLATE, BRAKE SHOE
Price unavailable
7
Required: 1
OIL SEAL
Price unavailable
8
Required: 1
BRAKE SHOE COMP.
Price unavailable
Tension Spring
9
Yamaha Motors
Tension Spring90506-12001-00
Required: 1
SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Tension Spring
10
Yamaha Motors
Tension Spring90506-15001-00
Required: 1
SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
11
Required: 1
GEAR, DRIVE
Price unavailable
12
Required: 1
GEAR, METER
Price unavailable
Plain Washer
13
Yamaha Motors
Plain Washer90201-064L6-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Plate Washer
14
Yamaha Motors
Plate Washer90201-20269-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
15
Required: 1
RING, STOP
Price unavailable
16
Required: 1
LEVER, CAMSHAFT 1
Price unavailable
Bolt
17
Yamaha Motors
Bolt90101-06278-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
Nut
18
Yamaha Motors
Nut95317-06600-00
Required: 1
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
19
Required: 1
CAMSHAFT
Price unavailable
20
Required: 1
PLATE, INDICATOR
Price unavailable
21
Required: 1
SPOKE SET, FRONT
Price unavailable
22
Required: 1
TIRE (70/90-17 M6230 38P/TT)
Price unavailable
23
Required: 1
TUBE (70/90-17)
Price unavailable
24
Required: 1
BAND, RIM (70/90,80/90)
Price unavailable
25
Required: 1
RIM (1.40-17)
Price unavailable
26
Required: 1
COLLAR
Price unavailable
27
Required: 1
AXLE, WHEEL
Price unavailable
28
Required: 1
NUT, SELF-LOCKING
Price unavailable
Plain Washer
29
Yamaha Motors
Plain Washer90201-10035-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
