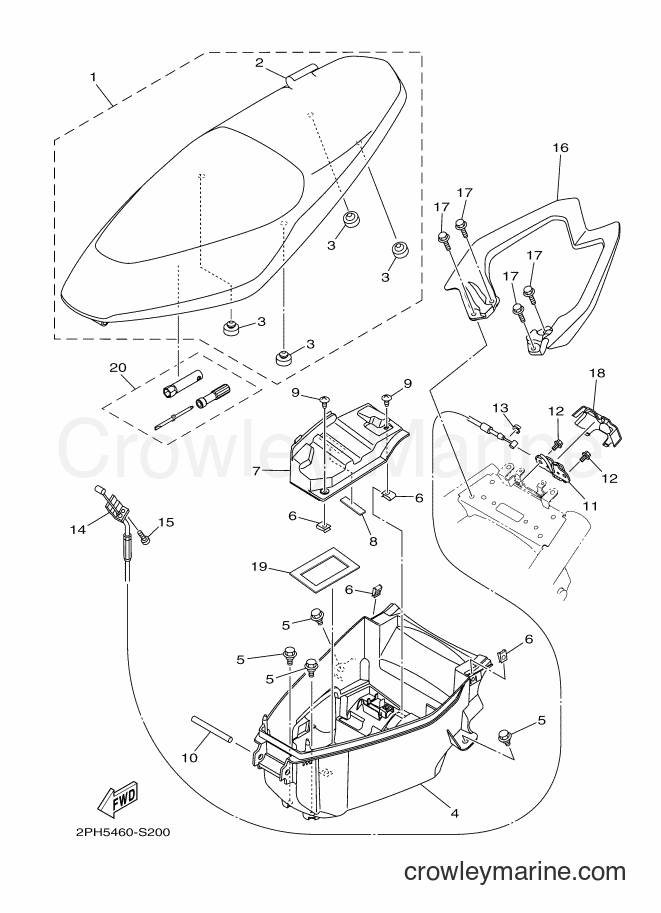

2017 Scooter LNS125 - LNS125 (2PH9) [010] SEAT diagram
![Yamaha Motors LNS125 (2PH9) [010] - SEAT](https://cdn.crowleymarine.com/yamaha/D4cjqfWy.png)
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
. SEAT COVER COMP.
Price unavailable
$2.98
You save $0.52
4
Required: 1
BOX ASSY
Price unavailable
In stock
Only 1 remaining
$2.64
You save $0.46
-50%
6
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
7
Required: 1
COVER, BATTERY
Price unavailable
8
Required: 1
DAMPER, PLATE
Price unavailable
9
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
10
Required: 1
PIN, SEAT FITTING
Price unavailable
11
Required: 1
SEAT LOCK ASSY
Price unavailable
$5.52
You save $0.97
$0.72
You save $0.13
14
Required: 1
CABLE, SEAT LOCK
Price unavailable
14
Required: 1
CABLE, SEAT LOCK
Price unavailable
-50%
15
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98507-05010-00
In stock
Only 4 remaining
$2.30
You save $2.30
16
Required: 1
HANDLE, SEAT
Price unavailable
17
Yamaha Motors
DEEP FLANGE BOLT95D32-06020-00
Required: 4
BOLT, FLANGE DEEP RECESS
$1.15
You save $0.20
18
Required: 1
COVER, SEAT LOCK
Price unavailable
19
Required: 1
DAMPER
Price unavailable
20
Required: 1
TOOL KIT
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
