2016 Scooter YP400R - YP400R (1SDB) [060] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

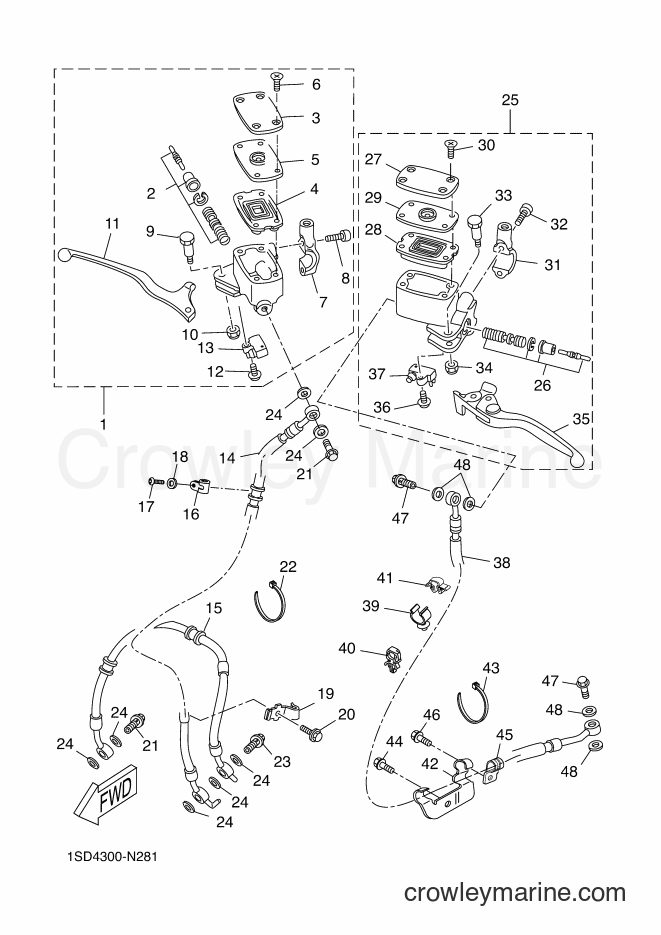

Yamaha Motors YP400R (1SDB) [060] - FRONT MASTER CYLINDER
Change View:
1
Required: 1
MASTER CYLINDER ASSY
Price unavailable
2
Required: 1
. CYLINDER KIT, MASTER
Price unavailable
3
Required: 1
. CAP, RESERVOIR
Price unavailable
4
Required: 1
. DIAPHRAGM, RESERVOIR
Price unavailable
5
Required: 1
. BUSH,DIAPHRAGM
Price unavailable
Flat Screw
6
Yamaha Motors
Flat Screw98707-04012-00
Required: 4
. SCREW, FLAT HEAD
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
7
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
Button Bolt
8
Yamaha Motors
Button Bolt92017-06030-00
Required: 2
. BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
9
Required: 1
. BOLT, LEVER
Price unavailable
95604-06200-00
10
Yamaha Motors
95604-06200-0095607-06200-00
Required: 1
. NUT, SELF U-FLANGE
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
11
Required: 1
. LEVER 1
Price unavailable
Pan Head With Washer Screw
12
Yamaha Motors
Pan Head With Washer Screw97607-04216-00
Required: 1
. SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
13
Required: 1
. FRONT STOP SWITCH ASSY
Price unavailable
14
Required: 1
HOSE, BRAKE 1
Price unavailable
15
Required: 1
HOSE, BRAKE
Price unavailable
BRAKE HOSE HOLDER
16
Yamaha Motors
BRAKE HOSE HOLDER3D7-25876-00-00
Required: 1
HOLDER, BRAKE HOSE 2
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
Plate Washer
18
Yamaha Motors
Plate Washer92907-05600-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
19
Required: 1
HOLDER, BRAKE HOSE 5
Price unavailable
Flange Bolt
20
Yamaha Motors
Flange Bolt95814-06016-00
Required: 1
BOLT, FLANGE
Supersedes: 95824-06016-00
Cross Ship
Leaves in 2-5 days
$1.99
$1.69
You save $0.30
More details
21
Required: 2
BOLT, OIL 1
Price unavailable
Switch Cord Band
22
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 1
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
23
Required: 1
BOLT, UNION
Price unavailable
Plate Washer
24
Yamaha Motors
Plate Washer90201-10118-00
Required: 7
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
25
Required: 1
RR. MASTER CYLINDER ASSY.
Price unavailable
26
Required: 1
. CYLINDER KIT, MASTER
Price unavailable
27
Required: 1
. CAP, RESERVOIR
Price unavailable
28
Required: 1
. DIAPHRAGM, RESERVOIR
Price unavailable
29
Required: 1
. BUSH,DIAPHRAGM
Price unavailable
Flat Screw
30
Yamaha Motors
Flat Screw98707-04012-00
Required: 4
. SCREW, FLAT HEAD
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
31
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
Button Bolt
32
Yamaha Motors
Button Bolt92017-06030-00
Required: 2
. BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
33
Required: 1
. BOLT, LEVER
Price unavailable
95604-06200-00
34
Yamaha Motors
95604-06200-0095607-06200-00
Required: 1
. NUT, SELF U-FLANGE
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
35
Required: 1
. LEVER 2
Price unavailable
Pan Head With Washer Screw
36
Yamaha Motors
Pan Head With Washer Screw97607-04216-00
Required: 1
. SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
37
Required: 1
. SWITCH
Price unavailable
38
Required: 1
HOSE, BRAKE 2
Price unavailable
39
Required: 2
CLAMP
Price unavailable
Clamp
40
Yamaha Motors
Clamp90464-48174-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
41
Required: 2
HOLDER, BRAKE HOSE
Price unavailable
42
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
43
Required: 1
CLAMP
Price unavailable
Flange Bolt
44
Yamaha Motors
Flange Bolt9582M-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 9580M-06012-00
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
45
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
Flange Bolt
46
Yamaha Motors
Flange Bolt9582M-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 9580M-06012-00
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
47
Required: 2
BOLT, OIL 1
Price unavailable
Plate Washer
48
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
