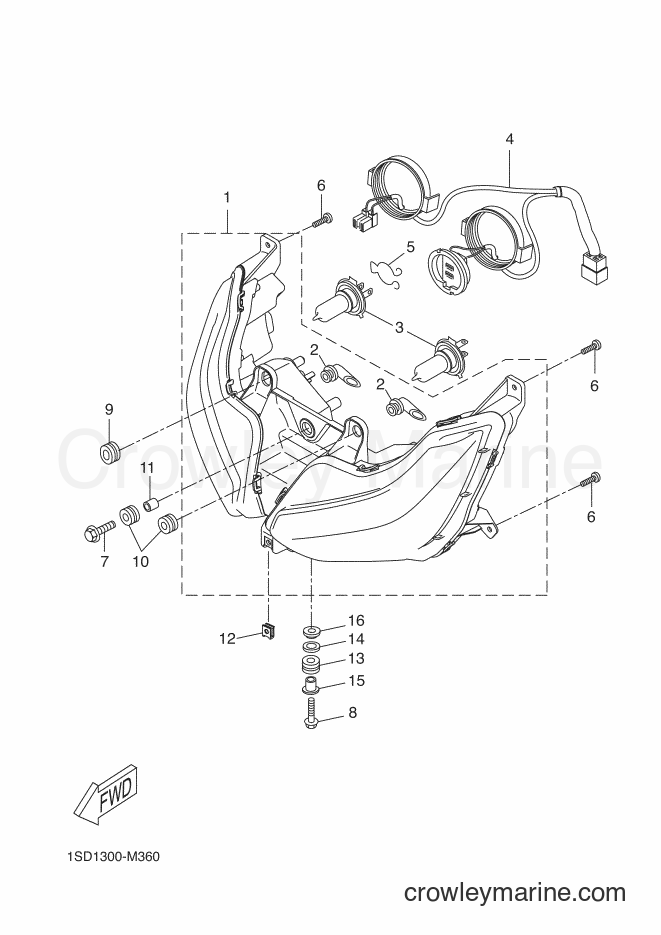

2016 Scooter YP250RA - YP250RA (2DLB) [030] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP250RA (2DLB) [030] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT COMP.
Price unavailable
2
Required: 2
. GROMMET
Price unavailable
3
Required: 2
BULB, HEADLIGHT (H7, 12V-55W)
Price unavailable
4
Required: 1
CORD ASSY
Price unavailable
5
Required: 1
SPRING, SET
Price unavailable
6
Required: 4
SCREW, TAPPING
Price unavailable
7
Required: 1
BOLT, WITH WASHER
Price unavailable
8
Required: 1
BOLT, FLANGE
Price unavailable
9
Required: 1
GROMMET
Price unavailable
GROMMET, WATER TUBE (UPPER)
10
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14023-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
11
Required: 1
COLLAR
Price unavailable
Grommet
13
Yamaha Motors
Grommet90480-01559-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
14
Required: 1
WASHER, PLATE
Price unavailable
COLLAR
15
Yamaha Motors
COLLAR90387-06648-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
COLLAR
16
Yamaha Motors
COLLAR90387-06042-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
