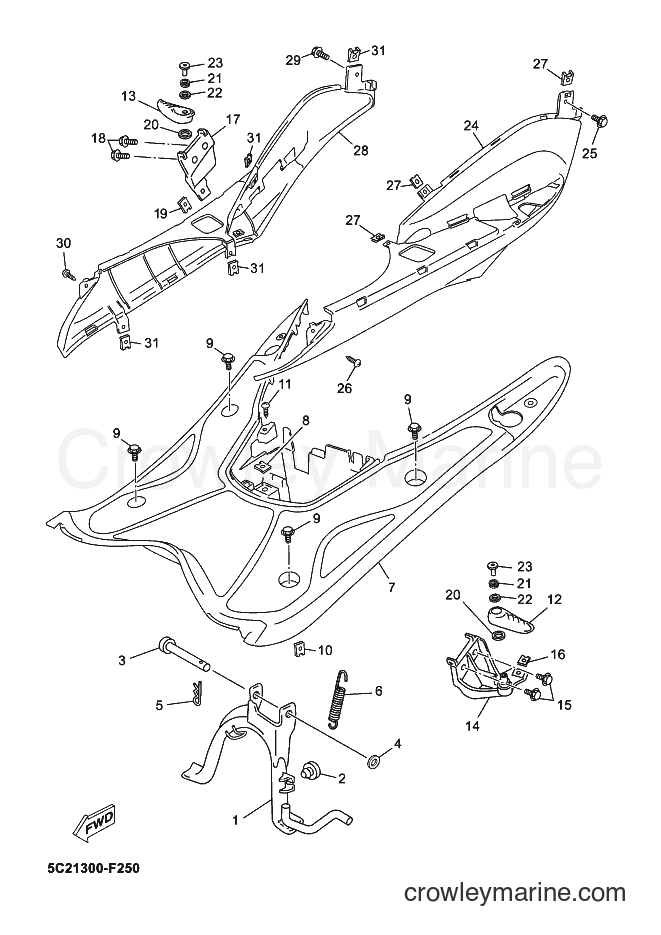

2016 Scooter YN50 - YN50 (2APH) [050] STAND & FOOTREST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50 (2APH) [050] - STAND & FOOTREST
Change View:
1
Required: 1
STAND, MAIN
Price unavailable
2
Required: 1
STOPPER, MAIN STAND
Price unavailable
CLEVIS PIN
3
Yamaha Motors
CLEVIS PIN90240-10137-00
Required: 1
PIN, CLEVIS
Supersedes: 90240-10132-00
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
Plate Washer
4
Yamaha Motors
Plate Washer90202-10120-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Clip
5
Yamaha Motors
Clip90468-12006-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
6
Required: 1
SPRING, TENSION
Price unavailable
7
Required: 1
BOARD, FOOTREST
Price unavailable
8
Required: 1
NUT, SPRING
Price unavailable
Bolt With Washer
9
Yamaha Motors
Bolt With Washer90119-06118-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 2
NUT, SPRING
Price unavailable
11
Required: 4
SCREW, TAPPING
Price unavailable
12
Required: 1
FOOTREST, REAR 1
Price unavailable
13
Required: 1
FOOTREST, REAR 2
Price unavailable
14
Required: 1
BRACKET 3
Price unavailable
15
Required: 2
BOLT, FLANGE
Price unavailable
16
Required: 1
NUT, SPRING
Price unavailable
17
Required: 1
BRACKET 4
Price unavailable
18
Required: 2
BOLT, FLANGE
Price unavailable
19
Required: 1
NUT, SPRING
Price unavailable
20
Required: 2
WASHER, PLATE
Price unavailable
Compression Spring
21
Yamaha Motors
Compression Spring90504-18031-00
Required: 2
SPRING, COMPRESSION
Supersedes: 90504-18005-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Plate Washer
22
Yamaha Motors
Plate Washer90201-164H4-00
Required: 2
WASHER, PLATE
Supersedes: 90201-163H8-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
HEX SOCKET HEAD BOLT
23
Yamaha Motors
HEX SOCKET HEAD BOLT90110-06198-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
24
Required: 1
COVER, FOOTREST
Price unavailable
25
Required: 1
BOLT, WITH WASHER
Price unavailable
26
Required: 1
SCREW, TAPPING
Price unavailable
27
Required: 5
NUT, SPRING
Price unavailable
28
Required: 1
COVER, FOOTREST
Price unavailable
29
Required: 1
BOLT, WITH WASHER
Price unavailable
30
Required: 1
SCREW, TAPPING
Price unavailable
31
Required: 5
NUT, SPRING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
