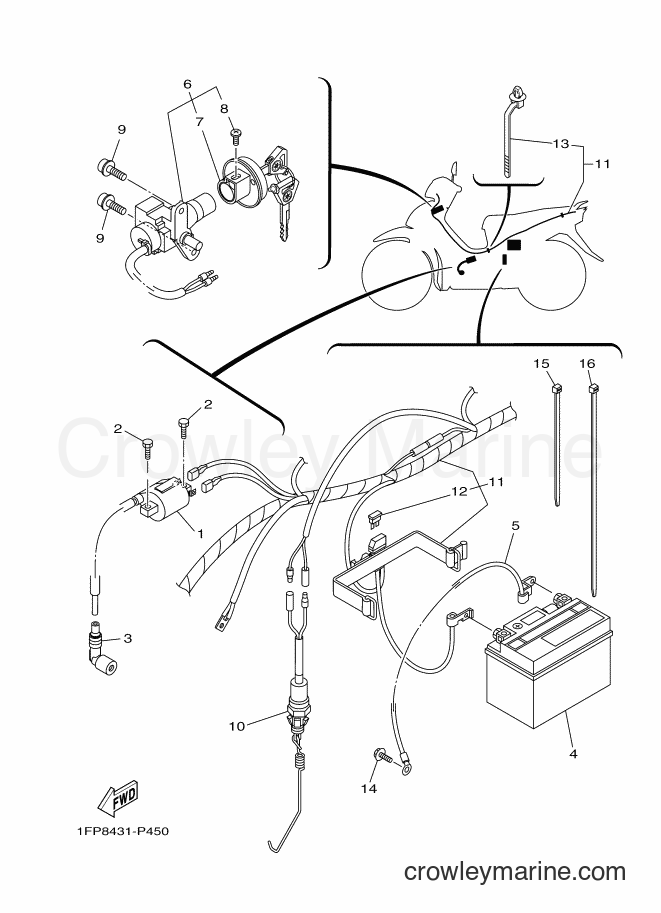

2016 Scooter T115FL - T115FL (1FPC) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FL (1FPC) [010] - ELECTRICAL 1
Change View:
1
Required: 1
IGNITION COIL ASSY
Price unavailable
Flange Bolt
2
Yamaha Motors
Flange Bolt95022-06016-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
3
Required: 1
PLUG CAP ASSY
Price unavailable
4
Required: 1
BATTERY ASSY (GS GTZ4V)
Price unavailable
5
Required: 1
WIRE, MINUS LEAD
Price unavailable
5
Required: 1
WIRE, MINUS LEAD
Price unavailable
6
Required: 1
MAIN SWITCH COMP.
Price unavailable
7
Required: 1
. SHUTTER & BLANK KEY
Price unavailable
8
Required: 1
. SCREW, PAN HEAD WITH WASHER
Price unavailable
9
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
10
Required: 1
STOP SWITCH ASSY
Price unavailable
11
Required: 1
WIRE HARNESS ASSY
Price unavailable
11
Required: 1
WIRE HARNESS ASSY
Price unavailable
11
Required: 1
WIRE HARNESS ASSY
Price unavailable
12
Required: 1
. FUSE (15A-BL)
Price unavailable
13
Required: 1
. CLAMP
Price unavailable
Flange Bolt
14
Yamaha Motors
Flange Bolt95022-06014-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.40
$2.89
You save $0.51
More details
Clamp
15
Yamaha Motors
Clamp90465-12356-00
Required: 3
CLAMP
Supersedes: 90464-36800-00
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
