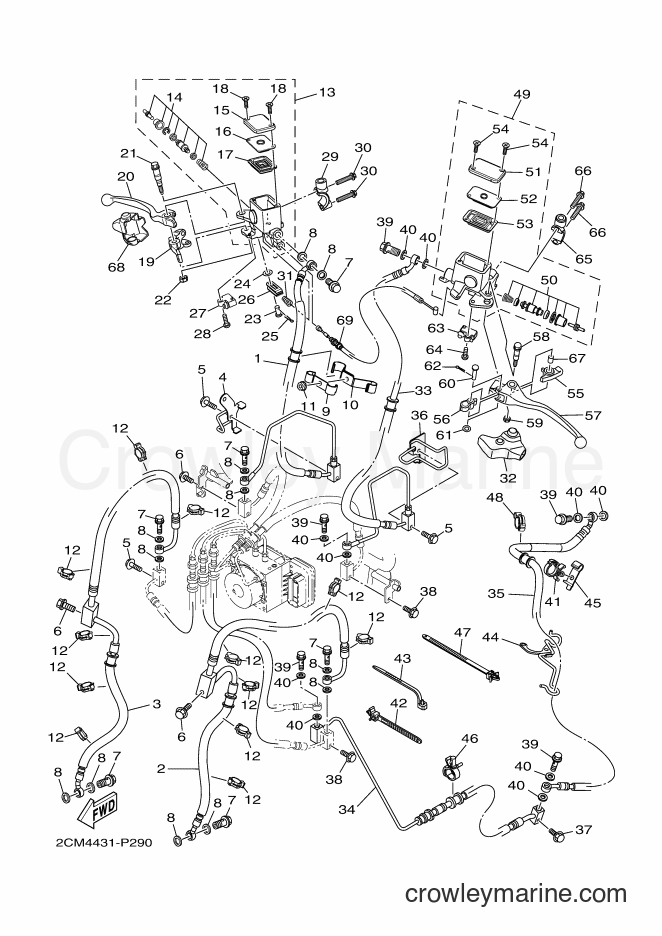

2016 Scooter MW125A - MW125A (2CMP) [050] FRONT MASTER CYLINDER diagram
![Yamaha Motors MW125A (2CMP) [050] - FRONT MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/8pgphYuX.png)
1
Required: 1
HOSE, BRAKE 1
Price unavailable
2
Required: 1
HOSE, BRAKE 4
Price unavailable
3
Required: 1
HOSE, BRAKE 5
Price unavailable
4
Required: 1
GUIDE, CABLE 2
Price unavailable
$1.61
You save $0.28
$3.02
You save $0.53
7
Required: 6
BOLT, UNION
Price unavailable
8
Yamaha Motors
Plate Washer90201-10118-00
Required: 12
WASHER, PLATE
$3.23
You save $0.57
9
Required: 1
HOLDER 2
Price unavailable
10
Required: 1
HOLDER, 3
Price unavailable
In stock
Only 1 remaining
$2.21
You save $0.39
$8.07
You save $1.42
13
Required: 1
MASTER CYLINDER SUB ASSY 2
Price unavailable
14
Required: 1
. CYLINDER KIT, MASTER
Price unavailable
15
Required: 1
. CAP, RESERVOIR
Price unavailable
16
Required: 1
. BUSH,DIAPHRAGM
Price unavailable
17
Required: 1
. DIAPHRAGM, RESERVOIR
Price unavailable
18
Yamaha Motors
Flat Screw98707-04016-00
Required: 2
. SCREW, FLAT HEAD
In stock
Only 2 remaining
$8.07
You save $1.42
19
Required: 1
KNOCKER
Price unavailable
20
Required: 1
LEVER 2
Price unavailable
21
Required: 1
BOLT, LEVER
Price unavailable
22
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95602-06100-00
$2.46
You save $0.44
$4.80
You save $0.85
24
Required: 1
WASHER, PLATE
Price unavailable
25
Yamaha Motors
Cotter Pin91490-20015-00
Required: 1
PIN, COTTER
Supersedes: 91402-20012-00
In stock
Only 2 remaining
$1.87
You save $0.33
26
Required: 1
JOINT, CABLE
Price unavailable
27
Yamaha Motors
Switch36Y-82917-00-00
Required: 1
STOP SWITCH ASSY
$42.49
You save $7.50
28
Yamaha Motors
Pan Head Screw With Washer97602-04214-00
Required: 1
SCREW, PAN HEAD WITH WASHER
$5.52
You save $0.97
29
Required: 1
BRACKET, MASTER CYLINDER
Price unavailable
30
Required: 2
BOLT
Price unavailable
31
Required: 1
SPRING, COMPRESSION
Price unavailable
32
Required: 1
COVER, HANDLE LEVER 1
Price unavailable
33
Required: 1
HOSE, BRAKE 2
Price unavailable
34
Required: 1
HOSE, BRAKE
Price unavailable
35
Required: 1
HOSE, BRAKE 8
Price unavailable
36
Required: 1
GUIDE, CABLE 1
Price unavailable
$1.61
You save $0.28
$3.02
You save $0.53
39
Required: 5
BOLT, UNION
Price unavailable
$3.23
You save $0.57
41
Required: 1
CLAMP
Price unavailable
42
Required: 1
CLAMP
Price unavailable
43
Yamaha Motors
Clamp90464-15195-00
Required: 1
CLAMP
Supersedes: 90464-13073-00
$3.75
You save $0.66
44
Required: 1
HOLDER, WIRE 2
Price unavailable
45
Required: 1
STAY
Price unavailable
46
Required: 1
CLAMP
Price unavailable
47
Required: 1
CLAMP
Price unavailable
48
Required: 1
CLAMP
Price unavailable
49
Required: 1
MASTER CYLINDER SUB ASSY 2
Price unavailable
50
Required: 1
. CYLINDER KIT, MASTER
Price unavailable
51
Required: 1
. CAP, RESERVOIR
Price unavailable
52
Required: 1
. BUSH,DIAPHRAGM
Price unavailable
53
Required: 1
. DIAPHRAGM, RESERVOIR
Price unavailable
54
Yamaha Motors
Flat Screw98707-04016-00
Required: 2
. SCREW, FLAT HEAD
In stock
Only 2 remaining
$8.07
You save $1.42
55
Required: 1
KNOCKER
Price unavailable
56
Required: 1
EQUALIZER, BRAKE
Price unavailable
57
Required: 1
LEVER 1
Price unavailable
58
Required: 1
BOLT, LEVER
Price unavailable
59
Required: 1
NUT, COVER
Price unavailable
$7.22
You save $1.27
61
Required: 1
WASHER, PLATE
Price unavailable
62
Yamaha Motors
Cotter Pin91490-20015-00
Required: 1
PIN, COTTER
Supersedes: 91402-20012-00
In stock
Only 2 remaining
$1.87
You save $0.33
63
Yamaha Motors
J45-82503-01-0036Y-83980-01-00
Required: 1
FRONT STOP SWITCH ASSY
$21.24
You save $3.75
64
Yamaha Motors
Pan Head Screw With Washer97602-04214-00
Required: 1
SCREW, PAN HEAD WITH WASHER
$5.52
You save $0.97
65
Required: 1
BRACKET, MASTER CYLINDER
Price unavailable
66
Required: 2
BOLT
Price unavailable
67
Required: 1
COLLAR, LEVER 1
Price unavailable
68
Required: 1
COVER, HANDLE LEVER 2
Price unavailable
69
Required: 1
WIRE, BRAKE 1
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
