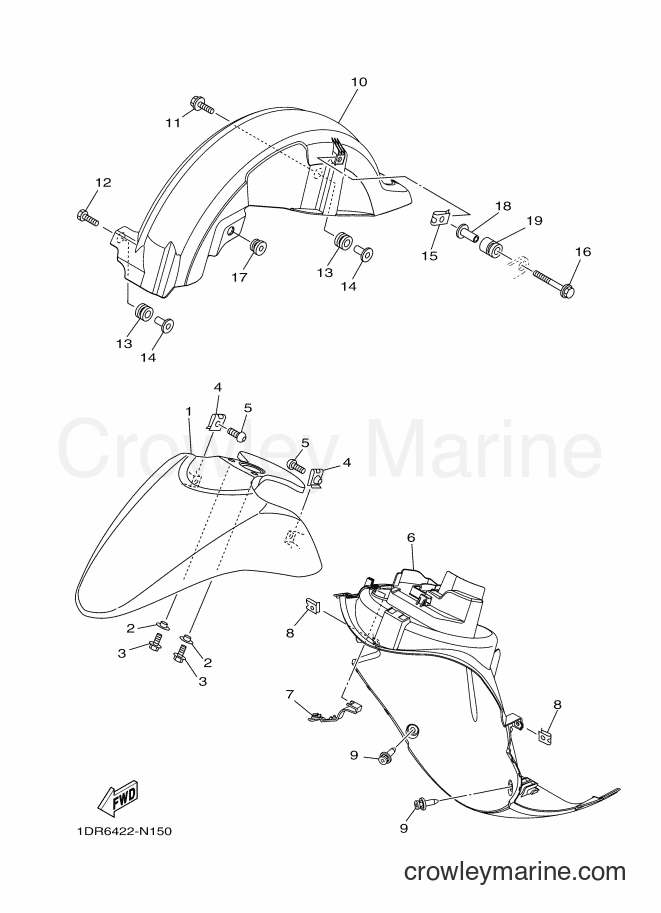

2015 Scooter XC115S - XC115S (1DR6) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (1DR6) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 2
COLLAR
Price unavailable
95821-06014-00
3
Yamaha Motors
95821-06014-0095802-06014-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.40
$0.34
You save $0.06
More details
Button head bolt
5
Yamaha Motors
Button head bolt92012-06012-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$4.70
$4.00
You save $0.71
More details
6
Required: 1
FENDER, INNER
Price unavailable
7
Required: 1
PLATE 1
Price unavailable
8
Required: 2
NUT, SPRING
Price unavailable
RIVET
9
Yamaha Motors
RIVET90269-06812-00
Required: 2
RIVET
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
10
Required: 1
FENDER, REAR
Price unavailable
13
Required: 2
GROMMET
Price unavailable
14
Required: 2
COLLAR
Price unavailable
Flange Bolt
16
Yamaha Motors
Flange Bolt95022-06035-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
17
Required: 1
GROMMET
Price unavailable
18
Required: 1
COLLAR
Price unavailable
19
Required: 1
GROMMET
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
