All diagrams for this model

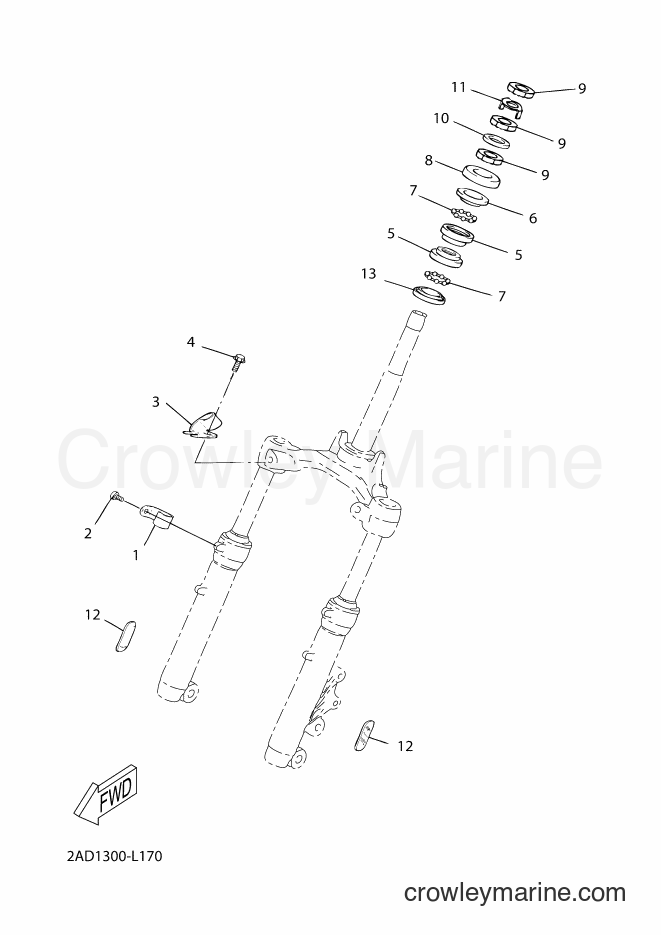

2015 Scooter CS50 - CS50 (2ADF) [040] STEERING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CS50 (2ADF) [040] - STEERING
Change View:
1
Required: 1
HOLDER, CABLE
Price unavailable
2
Required: 1
SCREW, BIND
Price unavailable
3
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
Flange Bolt
4
Yamaha Motors
Flange Bolt9582M-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 9580M-06012-00
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
Ball Race
5
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 2
RACE, BALL 2
Supersedes: 22F-23412-01-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
BALL RACE
6
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
RETAINER, BALL BEARING
7
Yamaha Motors
RETAINER, BALL BEARINGBP2-2341E-00-00
Required: 2
RETAINER, BALL BEARING
Supersedes: 22F-2341E-00-00
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
8
Required: 1
COVER, BALL RACE 2
Price unavailable
9
Required: 3
NUT
Price unavailable
10
Required: 1
WASHER, PLATE
Price unavailable
11
Required: 1
WASHER, SPECIAL
Price unavailable
12
Required: 2
REFLECTOR, FRONT 1
Price unavailable
13
Required: 1
RACE, BALL 4
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
