All diagrams for this model

2015 Scooter AF115F - AF115F (1YCA) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

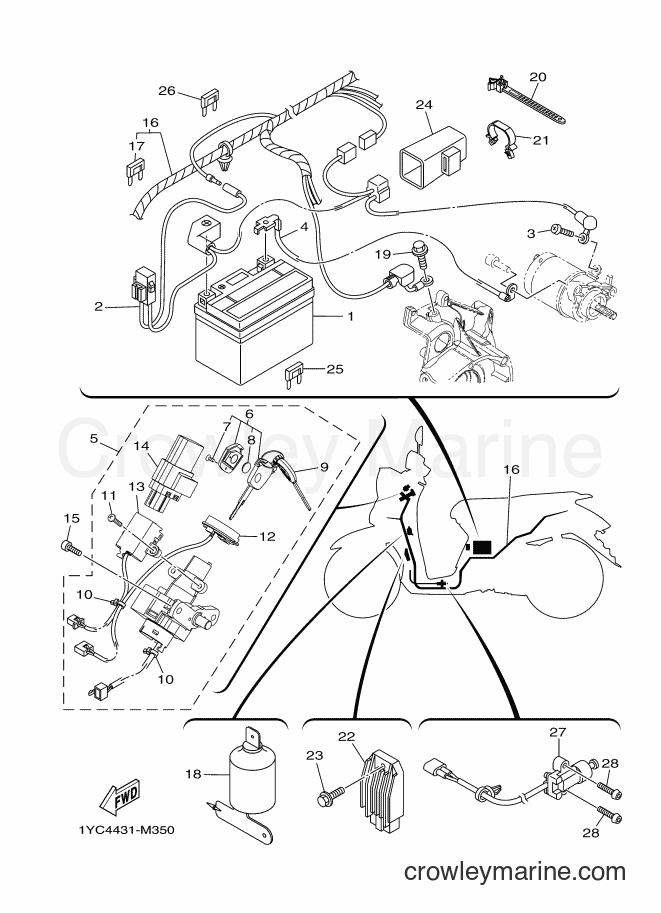

Yamaha Motors AF115F (1YCA) [010] - ELECTRICAL 1
Change View:
1
Required: 1
BATTERY ASSY (GS GTZ4V)
Price unavailable
2
Required: 1
WIRE, PLUS LEAD
Price unavailable
Bind Screw
3
Yamaha Motors
Bind Screw98902-05008-00
Required: 1
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
4
Required: 1
WIRE, MINUS LEAD
Price unavailable
5
Required: 1
MAIN SWITCH COMP.
Price unavailable
6
Required: 1
. XMTR.COMP.
Price unavailable
7
Required: 1
. . SCREW
Price unavailable
8
Required: 1
. . BATTERY
Price unavailable
9
Required: 1
. BLANK KEY
Price unavailable
10
Required: 2
. CLAMP
Price unavailable
11
Required: 2
. SCREW
Price unavailable
12
Required: 1
. SHUTTER 2
Price unavailable
13
Required: 1
. COIL, SOLENOID
Price unavailable
14
Required: 1
. RECEIVER COMPLETE
Price unavailable
BOLT
15
Yamaha Motors
BOLT91312-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
16
Required: 1
WIRE HARNESS ASSY
Price unavailable
17
Required: 1
. FUSE (10A)
Price unavailable
18
Required: 1
COVER, CONNECTER
Price unavailable
Flange Bolt
19
Yamaha Motors
Flange Bolt95022-06012-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
20
Required: 1
CLAMP
Price unavailable
Clamp
21
Yamaha Motors
Clamp90464-24230-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
22
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
23
Required: 1
BOLT, FLANGE
Price unavailable
24
Required: 1
STARTER RELAY ASSY
Price unavailable
25
Required: 1
FUSE (15A)
Price unavailable
26
Required: 1
FUSE (10A)
Price unavailable
27
Required: 1
SWITCH, SIDE STAND
Price unavailable
BOLT
28
Yamaha Motors
BOLT90111-05810-00
Required: 2
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$1.05
$0.89
You save $0.16
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
