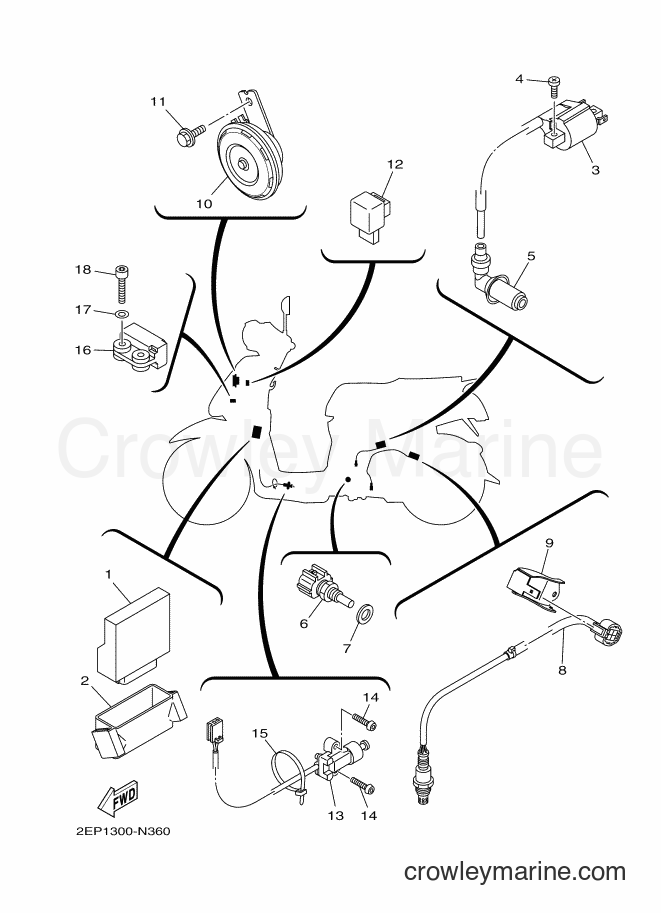

2014 Scooter XC115S - XC115S (2EP1) [050] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (2EP1) [050] - ELECTRICAL 2
Change View:
1
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
4
Required: 2
SCREW, PAN HEAD
Price unavailable
5
Required: 1
PLUG CAP ASSY
Price unavailable
6
Required: 1
THERMO UNIT
Price unavailable
Tank Cap Gasket
7
Yamaha Motors
Tank Cap Gasket90430-10802-00
Required: 1
GASKET
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
8
Required: 1
SENSOR, OXYGEN
Price unavailable
9
Required: 1
PLATE
Price unavailable
Horn
10
Yamaha Motors
Horn10B-H3371-00-00
Required: 1
HORN
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
Flange Bolt
11
Yamaha Motors
Flange Bolt95022-06010-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
12
Required: 1
FLASHER RELAY ASSY
Price unavailable
13
Required: 1
SWITCH, SIDE STAND
Price unavailable
BOLT
14
Yamaha Motors
BOLT90111-05810-00
Required: 2
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$1.05
$0.89
You save $0.16
More details
Clamp
15
Yamaha Motors
Clamp90464-16801-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
16
Required: 1
SENSOR, LEAN ANGLE
Price unavailable
Plate Washer
17
Yamaha Motors
Plate Washer90201-047A2-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$4.00
$3.40
You save $0.60
More details
BOLT
18
Yamaha Motors
BOLT91317-04025-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
