All diagrams for this model

2014 Scooter XC115S - XC115S (2EP1) [030] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

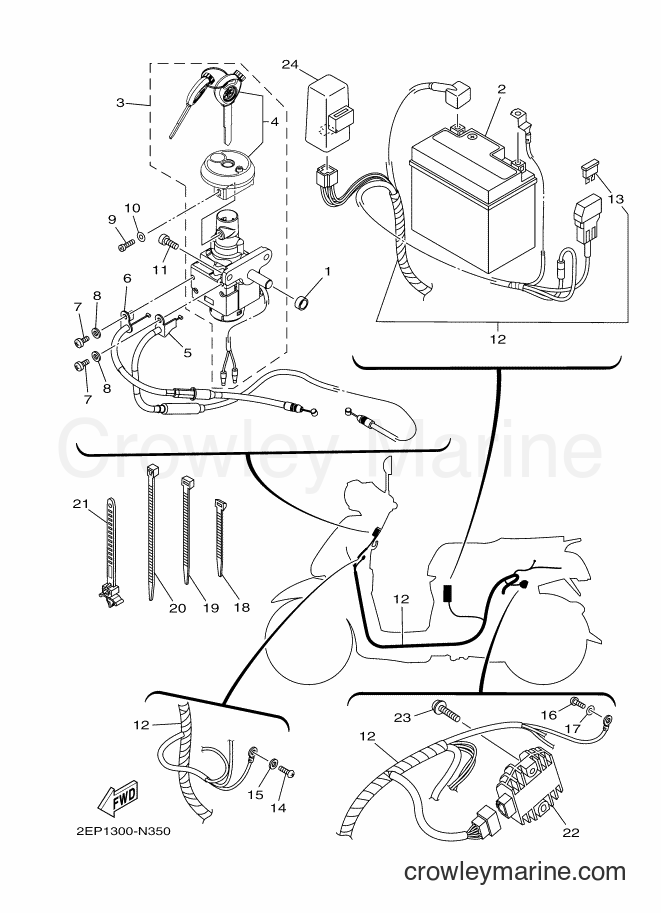

Yamaha Motors XC115S (2EP1) [030] - ELECTRICAL 1
Change View:
1
Required: 1
SEAL 1
Price unavailable
2
Required: 1
BATTERY ASSY (YUASA YTZ6V)
Price unavailable
3
Required: 1
MAIN SW. STRG. LOCK SUB ASSY
Price unavailable
4
Required: 1
. SHUTTER & BLANK KEY
Price unavailable
5
Required: 1
CABLE, SEAT LOCK
Price unavailable
6
Required: 1
WIRE, PULL
Price unavailable
Pan Head Screw
7
Yamaha Motors
Pan Head Screw98517-05012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05012-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
ROUND HEAD SCREW
11
Yamaha Motors
ROUND HEAD SCREW90149-06309-00
Required: 2
SCREW
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
12
Required: 1
WIRE HARNESS ASSY
Price unavailable
13
Required: 1
. FUSE (15A) BLUE
Price unavailable
Pan Head Screw
14
Yamaha Motors
Pan Head Screw98507-04010-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Washer
15
Yamaha Motors
Washer92907-04600-00
Required: 1
WASHER
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
Plate Washer
17
Yamaha Motors
Plate Washer92907-05600-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
Clamp
18
Yamaha Motors
Clamp90465-12356-00
Required: 1
CLAMP
Supersedes: 90464-36800-00
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
Clamp
19
Yamaha Motors
Clamp90464-50800-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
Clamp
20
Yamaha Motors
Clamp90464-70800-00
Required: 3
CLAMP
Cross Ship
Leaves in 2-5 days
$0.85
$0.72
You save $0.13
More details
21
Required: 1
CLAMP
Price unavailable
22
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
23
Required: 2
SCREW, PAN HEAD WITH WASHER
Price unavailable
24
Required: 1
STARTER RELAY ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
