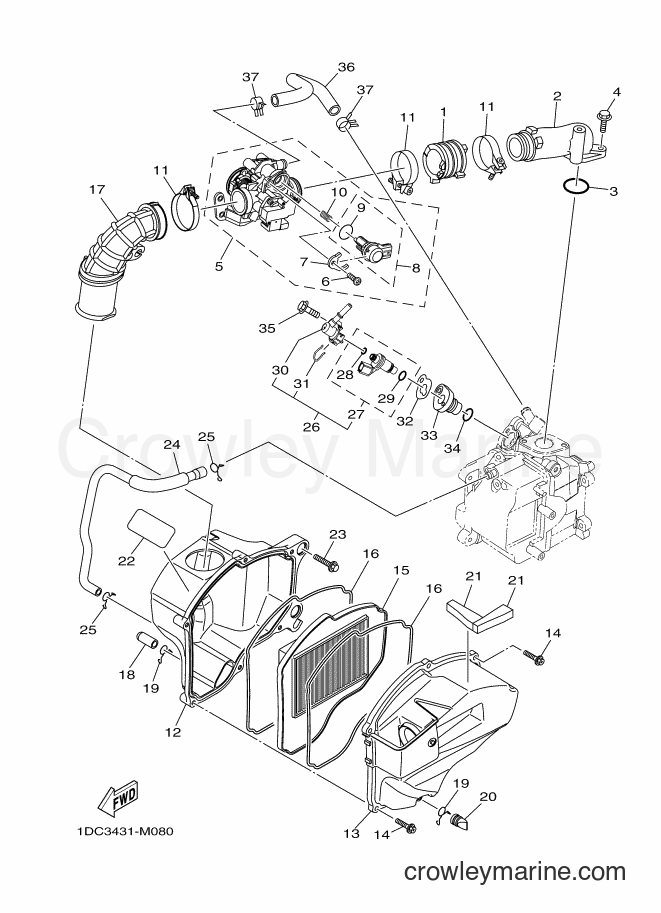

2014 Scooter AT125FC - AT125FC (1DC6) [010] INTAKE diagram
![Yamaha Motors AT125FC (1DC6) [010] - INTAKE](https://cdn.crowleymarine.com/yamaha/sY7s12Zm.png)
1
Required: 1
JOINT, CARBURETOR 1
Price unavailable
2
Required: 1
MANIFOLD
Price unavailable
$12.32
You save $2.17
$3.32
You save $0.58
5
Required: 1
THROTTLE BODY ASSY
Price unavailable
6
Yamaha Motors
Screw98517-06012-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98502-06012-00
$3.49
You save $0.62
$6.79
You save $1.20
8
Required: 1
. STEPPING MOTOR
Price unavailable
$6.37
You save $1.12
10
Required: 1
. SPRING, PLUNGER
Price unavailable
11
Required: 3
HOSE CLAMP ASSY
Price unavailable
12
Required: 1
CASE, AIR CLEANER 1
Price unavailable
13
Required: 1
CAP, CLEANER CASE SUB ASSY 1
Price unavailable
14
Required: 6
SCREW, TAPPING
Price unavailable
15
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
16
Required: 2
SEAL
Price unavailable
17
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
18
Required: 1
PIPE, DRAIN
Price unavailable
19
Required: 2
CLIP
Price unavailable
20
Required: 1
PIPE, DRAIN 2
Price unavailable
21
Required: 2
DAMPER
Price unavailable
22
Required: 1
LABEL, CAUTION
Price unavailable
$3.27
You save $0.58
24
Required: 1
PIPE, BREATHER 1
Price unavailable
$0.68
You save $0.12
26
Required: 1
INJECTOR ASSY
Price unavailable
27
Required: 1
. INJECTOR
Price unavailable
$4.67
You save $0.82
$5.94
You save $1.05
30
Required: 1
. PIPE
Price unavailable
$4.21
You save $0.74
32
Required: 1
GASKET
Price unavailable
33
Required: 1
ADAPTER
Price unavailable
34
Required: 1
O-RING
Price unavailable
$1.83
You save $0.32
36
Required: 1
HOSE, AIR
Price unavailable
37
Required: 2
CLIP
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
